Water Pump Impeller – Fits Parsun 6HP-9.8HP (Replaces PAF8-04000200)
Product Details

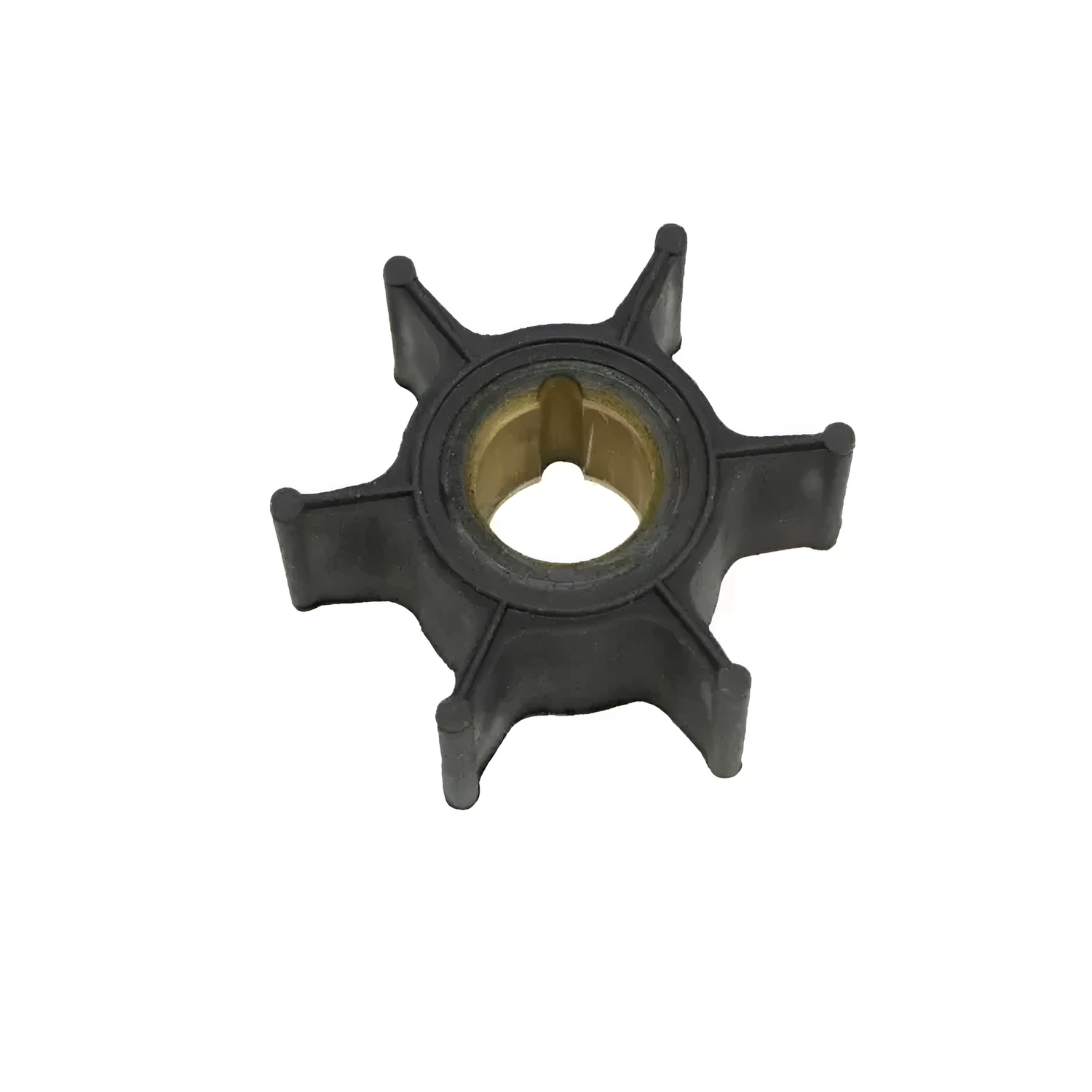

This replacement Water Pump Impeller – Fits Parsun 6HP-9.8HP (Replaces PAF8-04000200) is engineered for Parsun 4-stroke outboards from 6 to 9.8 HP. It also serves as a compatible service part for select 4-stroke Tohatsu (6-9.8 HP) and certain Mercury/Mercruiser outboards requiring part number 47-8037481.
It directly interchanges with Parsun PAF8-04000200, Tohatsu 3B2-65021-1, Mercury/Mercruiser 47-8037481, 8037481, or 8M0214945, and aftermarket reference HJ P-3B2.
- Designed for direct OEM-specification fit and performance.
- Constructed from durable, marine-grade neoprene rubber.
- Features a key drive for secure shaft engagement.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Parsun | PAF8-04000200 |
| Tohatsu | 3B2-65021-1 |
| Mercury/Mercruiser | 47-8037481 |
| Mercury/Mercruiser | 8037481 |
| Mercury/Mercruiser | 8M0214945 |
| HJ (Aftermarket) | P-3B2 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This impeller is confirmed to fit the following Parsun outboard models. Please verify your specific model and OEM part number before ordering.
| Brand | Model | Rated HP | Stroke | OEM Part No. |
|---|---|---|---|---|
| Parsun | F6BML | 6 | 4-Stroke | PAF8-04000200 |
| Parsun | F6BMS | 6 | 4-Stroke | PAF8-04000200 |
| Parsun | F8BML | 8 | 4-Stroke | PAF8-04000200 |
| Parsun | F8BMS | 8 | 4-Stroke | PAF8-04000200 |
| Parsun | F9.8BML | 9.8 | 4-Stroke | PAF8-04000200 |
| Parsun | F9.8BMS | 9.8 | 4-Stroke | PAF8-04000200 |
Technical Specs
- Product Type
- Water Pump Impeller
- Installation
- Direct OEM Replacement
- Housing Material
- Neoprene (Rubber)
- Dimensions
- 40mm outer diameter × 12.1mm inner diameter × 18mm height
- Other Technical Attributes
- Key drive
- Warranty
- 2 years
What’s in the Box
- 1 x Water Pump Impeller (PAF8-04000200)
Installation Notes
- Disconnect the engine's battery and shift the outboard into neutral.
- Remove the bolts securing the lower unit (gearcase) and carefully separate it from the upper housing.
- Locate the water pump housing on top of the gearcase and remove its mounting bolts.
- Slide the housing up and off the driveshaft to expose the old impeller. Note the direction of the old vanes.
- Remove the old impeller and woodruff key. Clean any debris or corrosion from the housing and wear plate.
- Install the new woodruff key and slide the new impeller onto the driveshaft, rotating it in the direction of engine operation to bend the vanes correctly.
- Apply a light coat of marine grease or soap to the inside of the housing and reinstall it over the impeller.
- Secure the housing bolts to the manufacturer's torque specifications.
- Reinstall the lower unit, ensuring the driveshaft, shift shaft, and water tube are properly aligned.
- Once reassembled, test the engine using a water supply (flushing muffs or in the water) to confirm proper water circulation.
Troubleshooting & FAQ
How do I know if this impeller fits my engine?
The best way is to check your original part number. This impeller replaces Parsun PAF8-04000200, Tohatsu 3B2-65021-1, and Mercury 47-8037481 / 8M0214945. You can also match your engine to the compatibility list and verify the dimensions (40mm OD x 12.1mm ID x 18mm H).
What are the signs of a failing water pump impeller?
Common signs include a weak or non-existent "telltale" water stream, engine overheating alarms, and reduced engine performance. Visible damage like cracked, brittle, or missing vanes on the old impeller also indicates failure.
How often should I replace my impeller?
For preventative maintenance, most manufacturers recommend replacing the impeller every 1-2 years or every 100-200 hours of operation, whichever comes first. Usage in saltwater or silty/sandy conditions may require more frequent changes.
Is this impeller compatible with Tohatsu and Mercury engines?
Yes, it is designed as a cross-reference part for select Tohatsu and Mercury/Mercruiser outboards. It is equivalent to Tohatsu part 3B2-65021-1 and Mercury part 47-8037481 (and its supersessions). Always verify the part number for your specific engine model and year.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
