Water Pump Impeller Kit – Fits Evinrude/Johnson 75-300 HP (Replaces 5001593, 777816)

$39.99 $63.00

Shipping calculated at checkout.

Water Pump Impeller Kit – Fits Evinrude/Johnson 75-300 HP (Replaces 5001593, 777816) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This Water Pump Impeller Kit is designed for a broad range of Evinrude and Johnson 75-300 HP V4, V6, and V8 outboards, including Sea Drives from 1979 to 2007 and E-TEC models from 2004 and up. It ensures your engine’s cooling system operates efficiently, preventing overheating and potential damage.

This kit serves as a direct interchange for Evinrude/Johnson parts 5001593 and 777816, as well as aftermarket equivalents Sierra 18-3059, GLM 89570, and Mallory 9-45206.

Installation: Direct replacement for OEM parts.

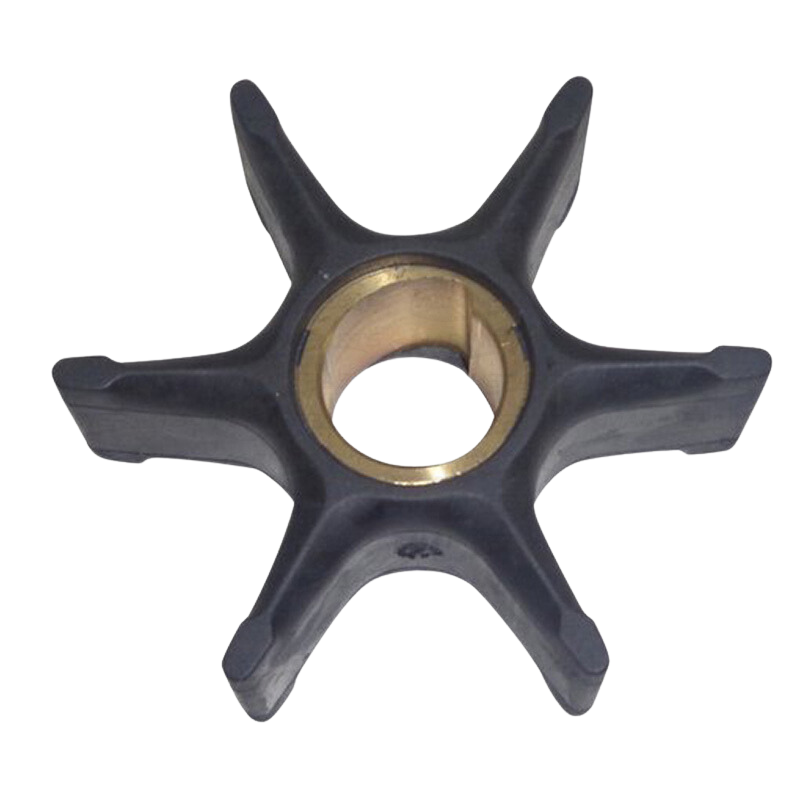

Materials: Features a durable neoprene impeller with a robust brass hub for longevity.
Kit Contents: Includes impeller, o-rings, and keys for a complete service.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Evinrude/Johnson	5001593
Evinrude/Johnson	777816
Sierra	18-3059
GLM	89570
Mallory	9-45206

Engine & Model Compatibility

Confirm your engine model/year in the table below.

Fits a wide array of V4, V6, and V8 Evinrude/Johnson outboards, Sea Drives, and commercial models manufactured between 1979 and 2007, plus newer E-TEC engines.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Evinrude/Johnson	V4, V6, V8	85-300	2-Stroke	1979–2007	5001593, 777816	All V4, V6, V8 outboards
Evinrude	E-TEC	75-300	2-Stroke	2004 and up	5001593	E-TEC technology models
Evinrude/Johnson	Sea Drives	All	2-Stroke	1979–2007	5001593, 777816	All V4/V6/V8 Sea Drive units
Evinrude/Johnson	Commercial	Various	2-Stroke	1979–2007	5001593, 777816	Commercial models

Brand	Model	Rated HP	Stroke	Years	OEM Part No.
Evinrude/Johnson	Standard Models	85	2-Stroke	1979–1995	5001593, 389289, 391538
Evinrude/Johnson	Standard Models	90	2-Stroke	1979 and up	5001593, 389289, 391538
Evinrude/Johnson	FICHT	90	2-Stroke	1995 and up	5001593, 389289, 391538
Evinrude/Johnson	Standard Models	100	2-Stroke	1979 and up	5001593, 389289, 391538
Evinrude/Johnson	Commercial	100	2-Stroke	1984 and up	5001593, 389289, 391538
Evinrude/Johnson	Commercial	105	2-Stroke	1998–2001	5001593, 389289, 391538
Evinrude/Johnson	Standard Models	115	2-Stroke	1979 and up	5001593, 389289, 391538
Evinrude/Johnson	FICHT	115	2-Stroke	1995 and up	5001593, 389289, 391538
Evinrude/Johnson	25" Models	120	2-Stroke	1993–2000	5001593, 389289, 391538
Evinrude/Johnson	Standard Models	125	2-Stroke	1993–1995	5001593, 389289, 391538
Evinrude/Johnson	Standard Models	130	2-Stroke	1979 and up	5001593, 389289, 391538
Evinrude/Johnson	25" Models	130	2-Stroke	1994–2000	5001593, 389289, 391538
Evinrude/Johnson	25" Models	135	2-Stroke	2001	5001593, 389289, 391538
Evinrude/Johnson	Standard Models	140	2-Stroke	1979 and up	5001593, 389289, 391538
Evinrude/Johnson	25" F suffix	140	2-Stroke	1994–2000	5001593, 389289, 391538
Evinrude/Johnson	Standard Models	150	2-Stroke	1993 and up	5001593, 389289, 391538
Evinrude/Johnson	20" EL & SL	150/175	2-Stroke	1996–1998	5001593, 389289, 391538
Evinrude/Johnson	Standard Models	175	2-Stroke	1993 and up	5001593, 389289, 391538
Evinrude/Johnson	Standard Models	200	2-Stroke	1976–1978	5001593, 389289, 391538
Evinrude/Johnson	25" & 30"	200	2-Stroke	1993–1997	5001593, 389289, 391538
Evinrude/Johnson	Commercial	200	2-Stroke	1990	5001593, 389289, 391538
Evinrude/Johnson	20"	225	2-Stroke	1993 and up	5001593, 389289, 391538
Evinrude/Johnson	25" & 30"	225	2-Stroke	1993–1997	5001593, 389289, 391538
Evinrude/Johnson	Standard Models	235	2-Stroke	1978 and up	5001593, 389289, 391538
Evinrude/Johnson	20" Loop	V4	2-Stroke	1993 and up	5001593, 389289, 391538
Evinrude/Johnson	20" & 25" Cross	V4	2-Stroke	1993 and up	5001593, 389289, 391538

Technical Specs

Product Type: Water Pump Impeller Kit
Installation: Direct Replacement
Material: Neoprene with Brass Hub
Blades: 6
Dimensions (Product): Height: 5.0 in; Width: 10.5 in; Length: 13.0 in
Impeller Diameter: 89 mm (3.5 in)
Impeller Height: 31.9 mm (1.25 in)
Shaft Diameter: 22.4 mm (0.88 in)
Weight: 0.45 kg (1 lb)

What’s in the Box

1 x Impeller (5001593/777816)
4 x O-ring
2 x Key (18-3299)

Installation Notes

Disconnect the battery and ensure the engine is off and cool.
Locate and remove the lower unit (gearcase) from the outboard.
Unbolt and remove the water pump housing to access the impeller.
Remove the old impeller, key, and any gaskets or o-rings. Note the direction of the old impeller's blades.
Clean the inside of the housing and the base plate thoroughly.
Install the new key and slide the new impeller onto the driveshaft, rotating it in the direction of engine operation to seat the blades correctly.
Re-install the water pump housing with new o-rings/seals as provided. Torque bolts to manufacturer specifications.
Re-attach the lower unit, reconnect the battery, and test the engine with a water supply, checking for a strong tell-tale stream.

Troubleshooting & FAQ

Will this kit fit my 2006 Evinrude E-TEC 250 HP?

Yes, this impeller kit is confirmed to fit Evinrude E-TEC models from 75-300 HP manufactured from 2004 and up. It serves as a direct replacement for OEM part 5001593.

What are the signs of a failing water pump impeller?

Common signs include the engine overheating, particularly at low speeds or idle, a weak or non-existent water stream from the "tell-tale" outlet, and a dry, cracked, or brittle appearance of the impeller blades upon inspection.

How often should I replace my outboard's impeller?

As a preventative maintenance measure, it is recommended to inspect the impeller annually and replace it every 1-2 years or after every 100-200 hours of engine use. This interval can vary based on usage and water conditions (e.g., saltwater or sandy/silty water may require more frequent changes).

Is this a complete kit for the job?

This kit includes the essential components for an impeller replacement: the impeller itself, necessary o-rings, and drive keys. Check your service manual to see if any other seals or gaskets are recommended for replacement at the same time.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9001 facility, batch-inspected for consistency.

Shipping speed & cost?

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns?

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
