Product Details
- SKU: 183239
- Brand & Manufacturer: SeaSierra
- Category: Water Pump Repair Kit
- Part Type: Impeller Repair Kit
- Item Weight: 0.04
- Package Dimensions: HEIGHT: 0.95, DEPTH: 4.9, WIDTH: 3.95
Compatibility
This kit is compatible with the following Mercury Mariner 2-Stroke Outboard models:
- 3.5 hp: 6202173 & up
- 3.6 hp: 5404657 & up
- 3.9 hp / model 40: 5589202 thru 5595531 (2 cyl.)
- 4 hp: 5595532 & up (U.S.)
- 4.5 hp: 5595532 & up (1 cylinder)
- 7.5 hp: 754131610 & up
- 9.8 hp: Specific model "merc"
Part Numbers and Replacements
- Replaces OEM Part Numbers: 47-89980T1, 18-3054, 89980T1
- Replaces Sierra Part Number: 18-3054
-
GLM Part Numbers:
- Impeller: 18-3039
- O-Ring: 18-7409
- Impeller Plate: 18-3139
- Equivalent Kit: Not specified in the original information
- Other Replaced Part Numbers: 46895 (Cartridge Outer Plate), 47-89981Q1 (another Impeller kit)

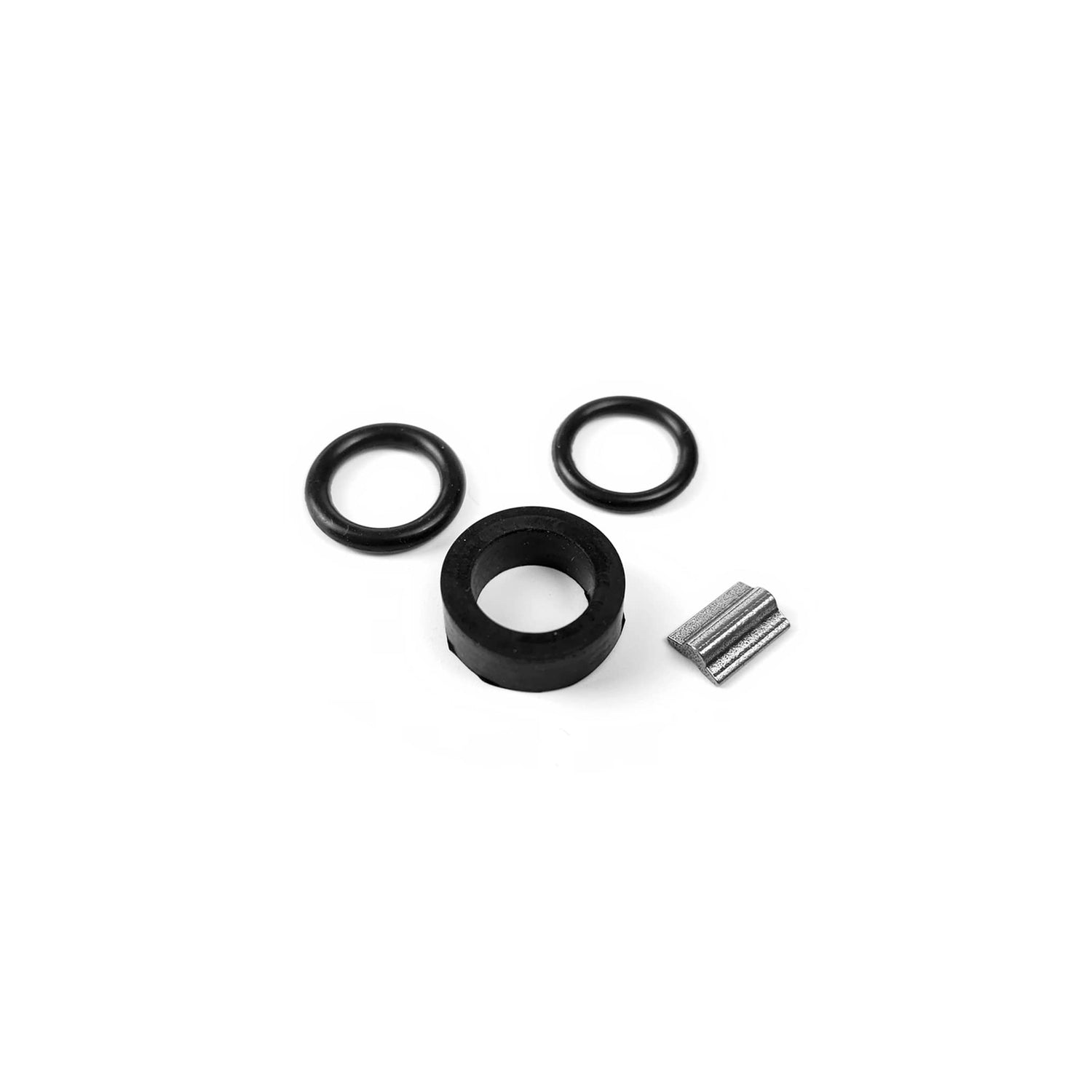

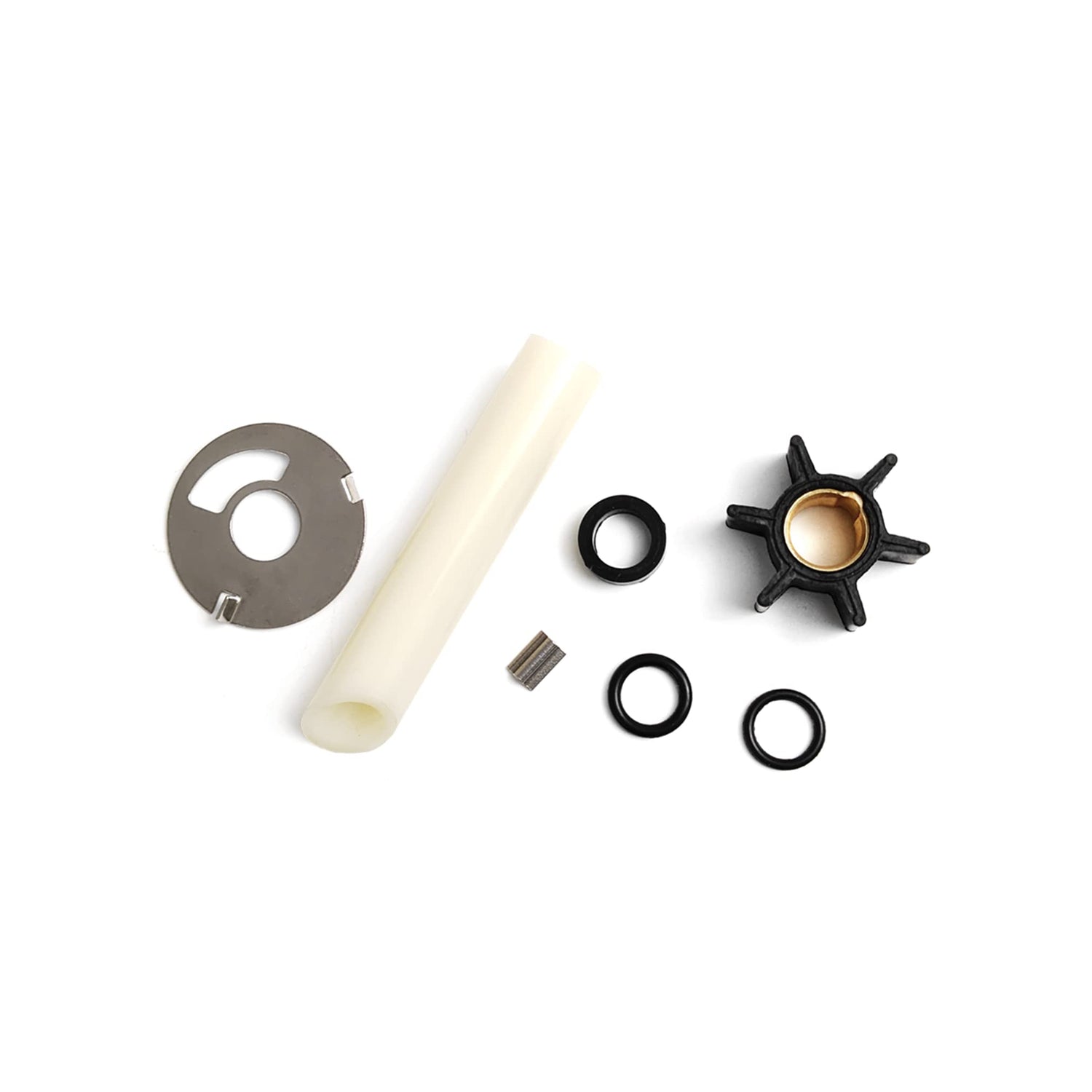

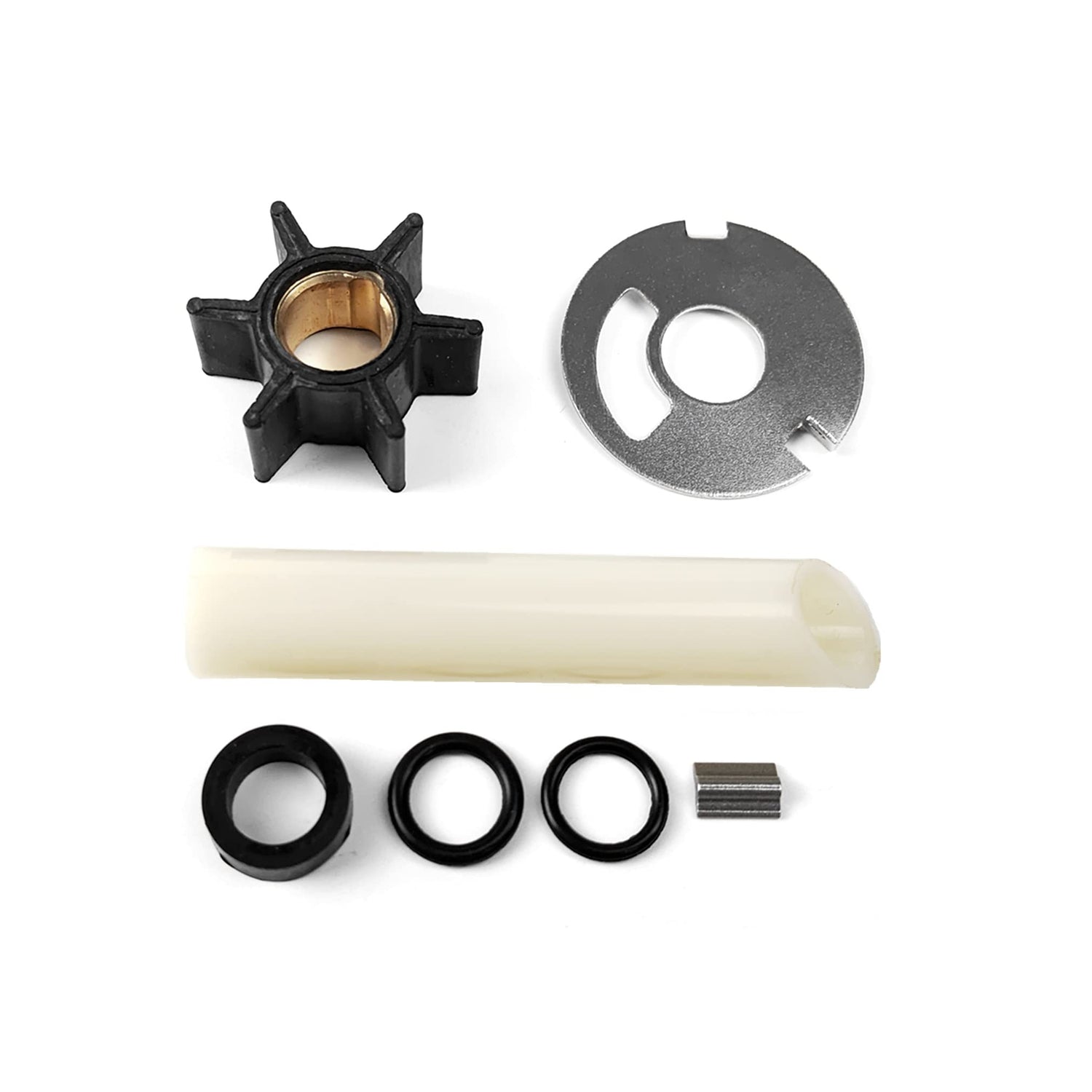

Kit Components
The package includes the following items:

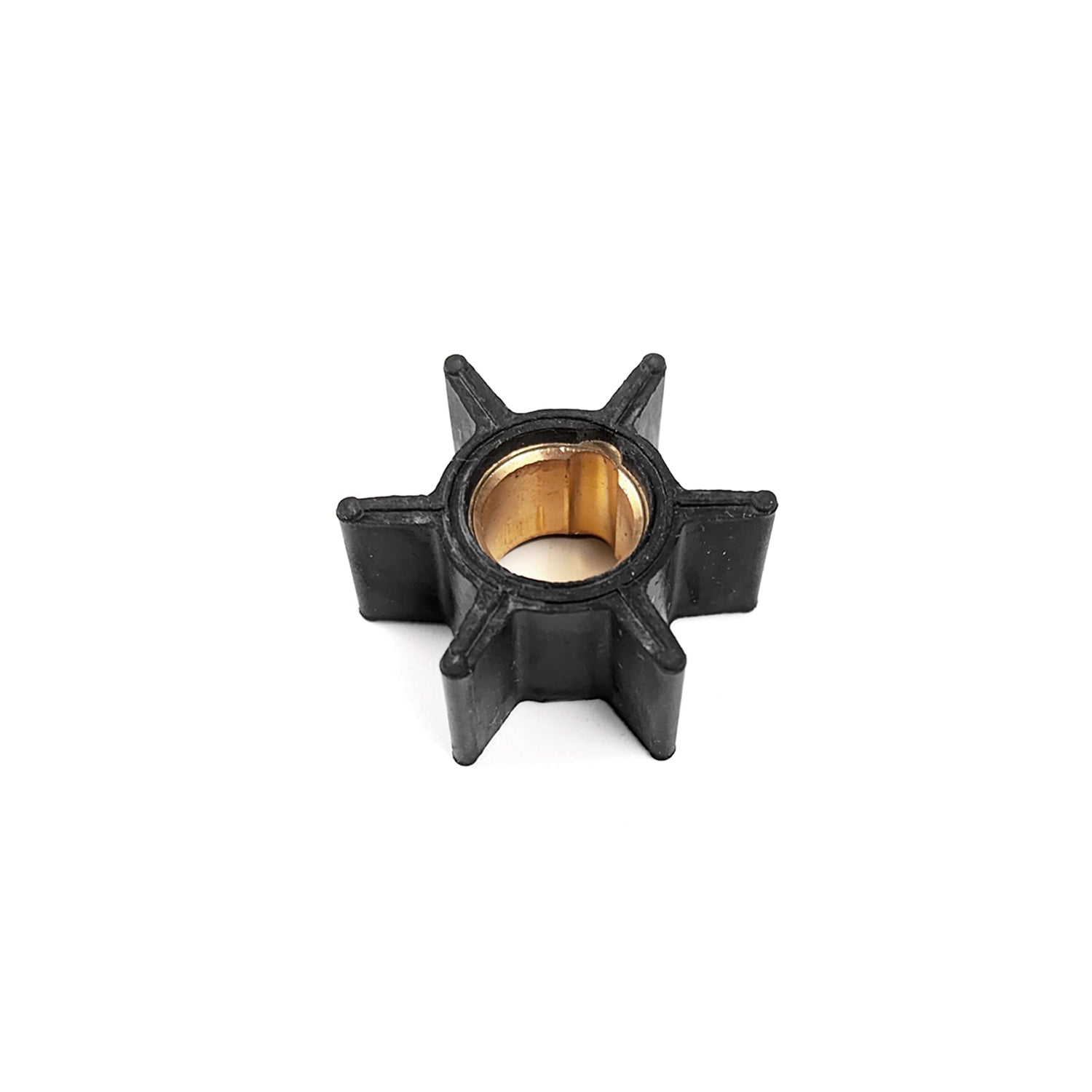

- Impeller 89980 18-3054

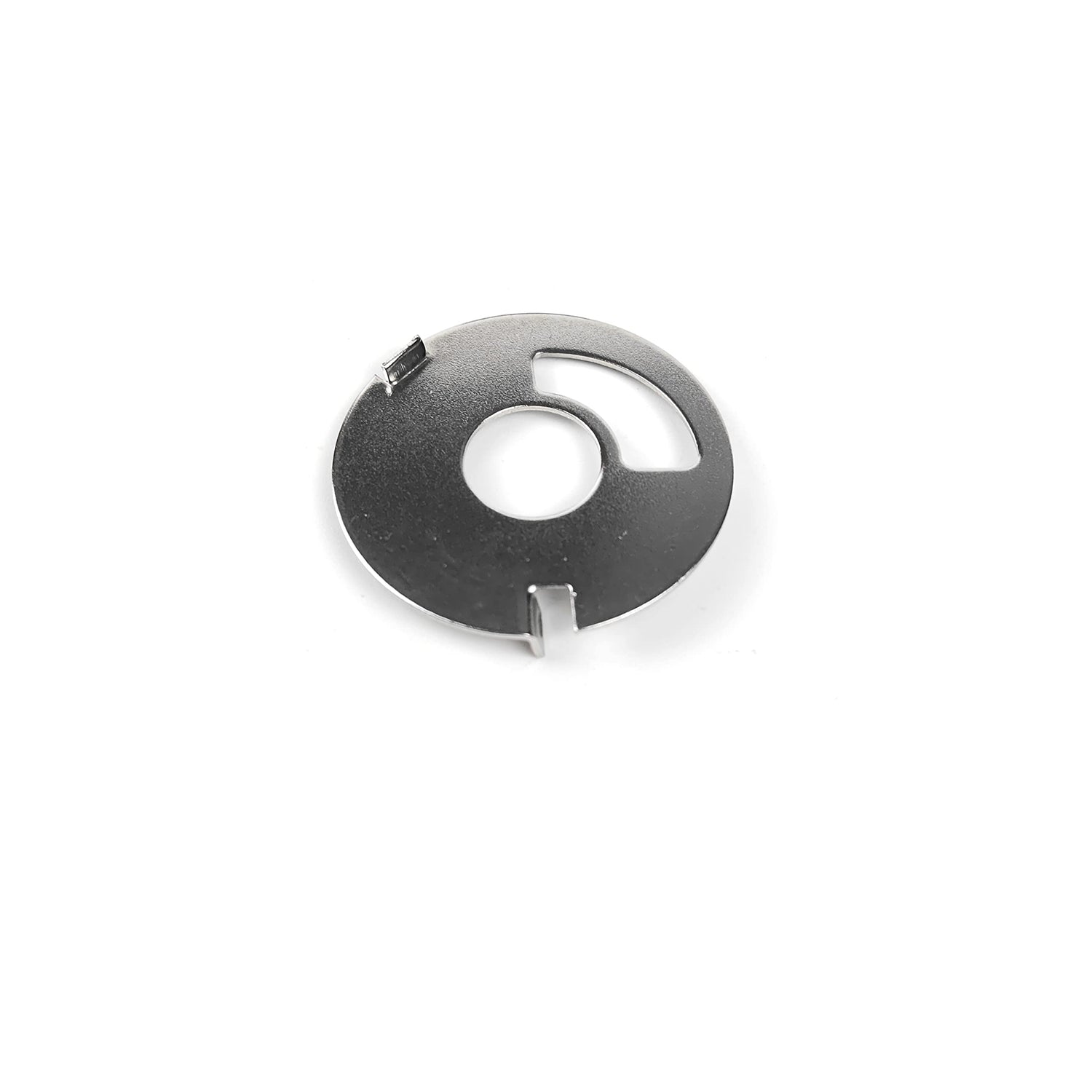

- Cartridge Outer Plate 46895
- Key, Woodruff Impeller

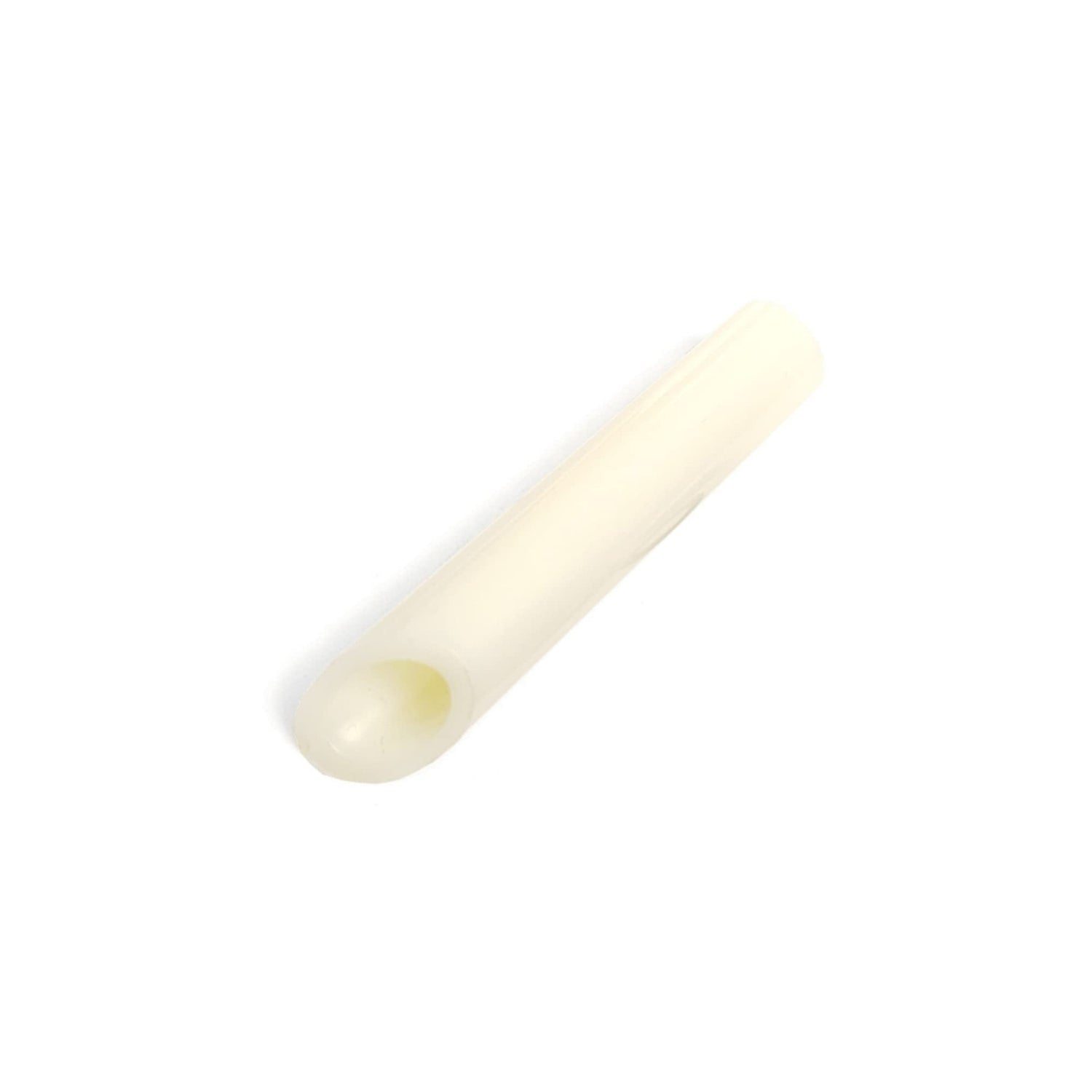

- Sleeve tube
- O-ring (3 pieces in total)
Additional Information
- This water pump impeller repair kit is designed for vintage Mercury Mariner outboards.
- The impeller has an internal diameter of 0.438 inches. If your driveshaft has an overall diameter of .456", this is NOT the correct impeller kit for you.
- It's essential to check your outboard model or s/n before purchase. If unsure, you can provide details like the boat engine model, horsepower, or year for assistance.
- The product is designed for durability, offering higher flow rates and cooling flow to protect your engine.
- Packaging details include a weight of 0.04 and dimensions of HEIGHT: 0.95, DEPTH: 4.9, WIDTH: 3.95.
- The product's HSC code is 401699, and its ECCN is 4016.99.6050.
