6E0-W0078-A2-00 Water Pump Kit for Yamaha 4 5 HP F4 (2002-2008) | SeaSierra

6E0-W0078-A2-00 Water Pump Impeller Repair Kit with Housing for Yamaha 4 5 HP F4 (2002-2008) | SeaSierra

Product Details

• SKU: 6E0W0078A2
• Manufacturer: SeaSierra
• Brand: SeaSierra
• Category: Cooling Systems / Pump/Pump Kits
• Part Type: Water Pump Impeller Repair Kit with Housing
• Materials: Marine and chemical corrosion-resistant metal alloy and high-performance neoprene rubber

Compatibility

This kit is compatible with the following Yamaha and Mariner Four Stroke and Two Stroke Outboard models:

• Yamaha 4 HP: 1984-1999 (2 Stroke), 1999-2001 (4 Stroke), 2002-2008 (4 Stroke F4)
• Yamaha 5 HP: 1984-2002 (2 Stroke)
• Mariner 4 HP & 5 HP: 96325T 96325M (Only with Serial Number 6E0 & 6E3)
• Mariner 4 HP 4A(6E0): All
• Mariner 5 HP 5C(6E3): All

Part Numbers and Replacements

• Replaces Yamaha OEM Part Numbers:
  • 6E0-W0078-A2-00
  • 6E0-W0078-00
  • 6E0-W0078-02
  • 68D-WG078-00-00
• Cross Reference:
  • 67D-WG078-00-00
  • 67D-W0078-00-00
  • 6E0-W0078-A5-00
  • 6E0-W0078-A4-00
  • 6E0-W0078-A3-00
  • 6E0-W0078-01-00
  • 6E0-W0078-00-00

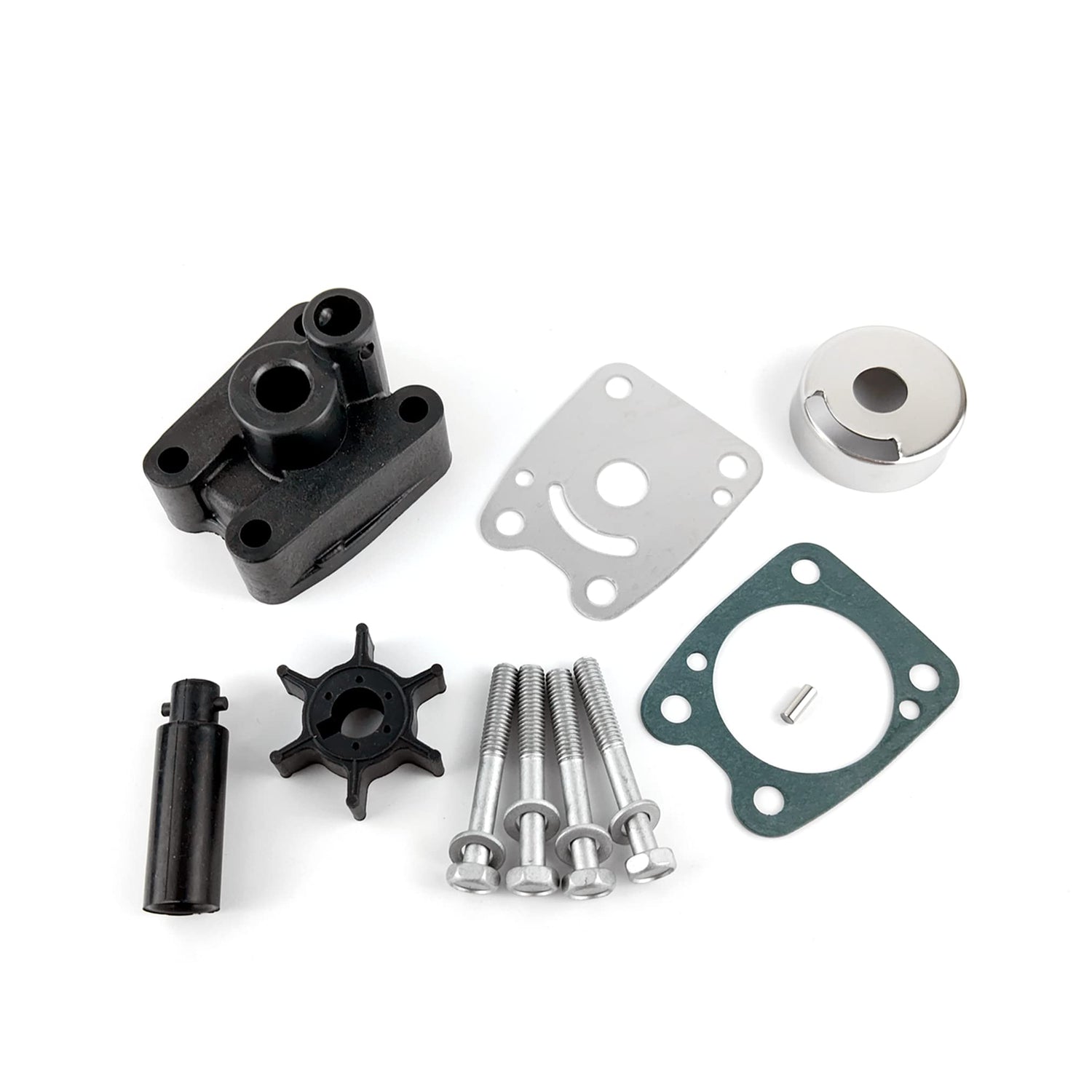

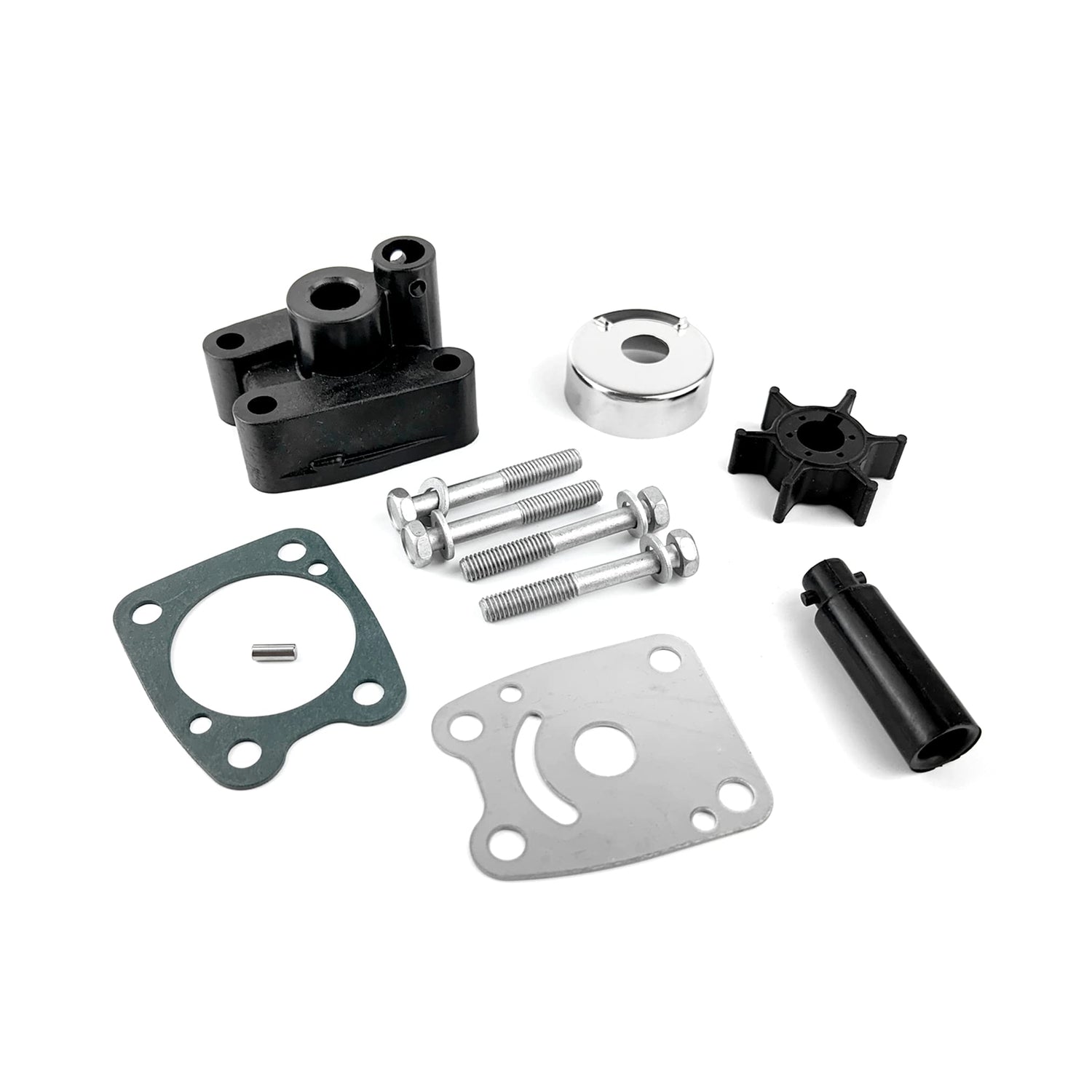

Kit Components

The package includes the following items:

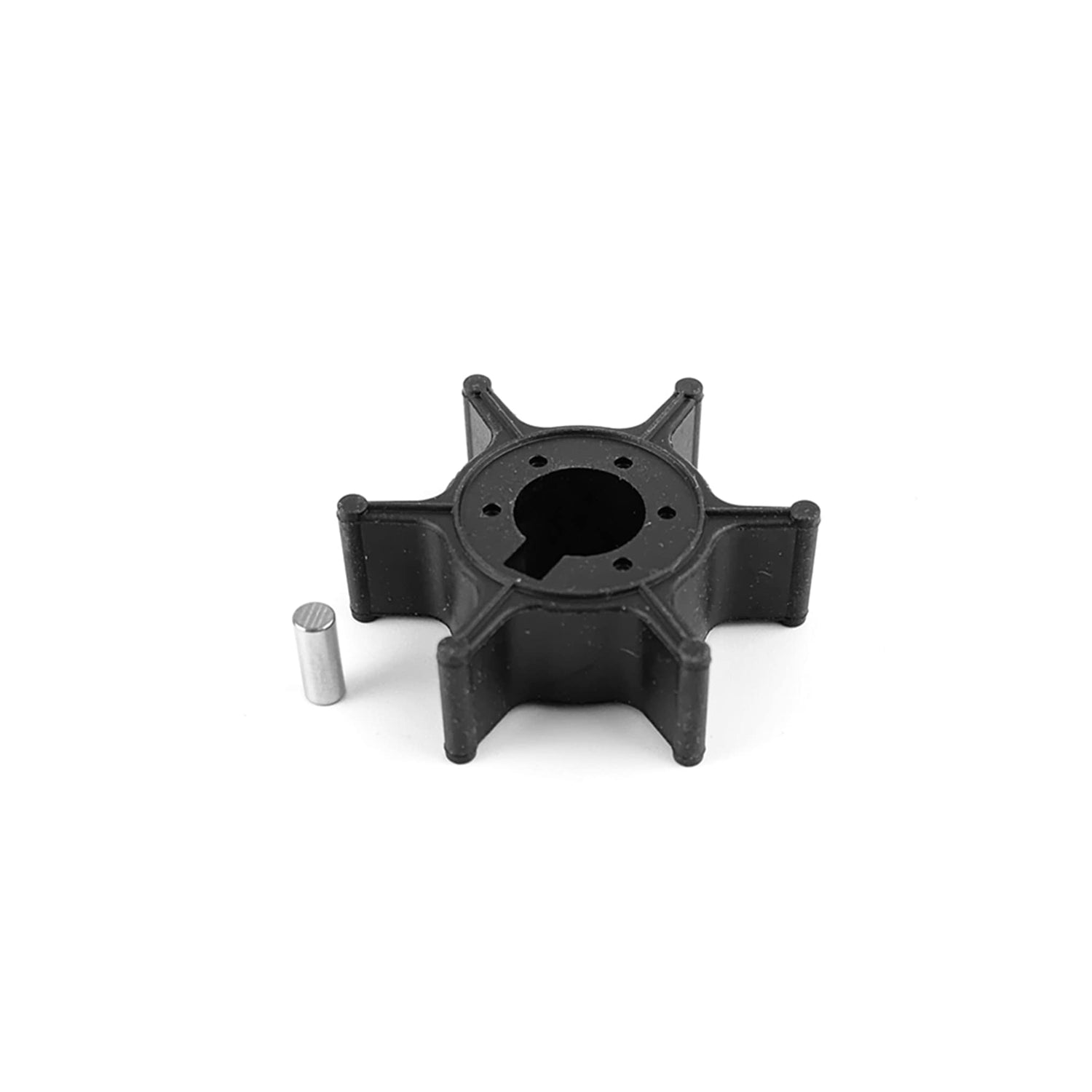

1. Water Pump Impeller (6E0-44352-00-00)

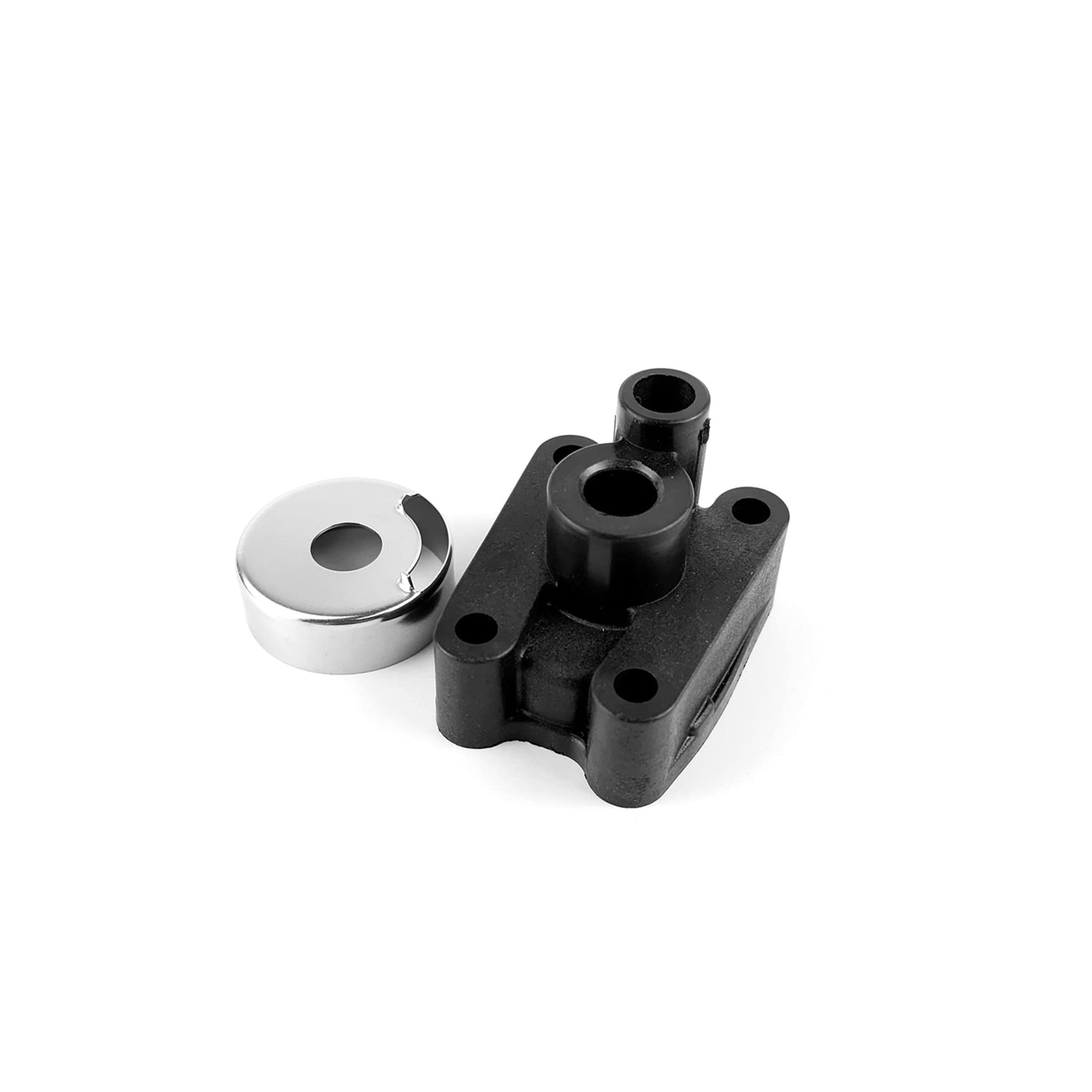

2. Pump Housing (68D-G4311-01-00)
3. Cartridge Insert (6E0-44322-02-00)

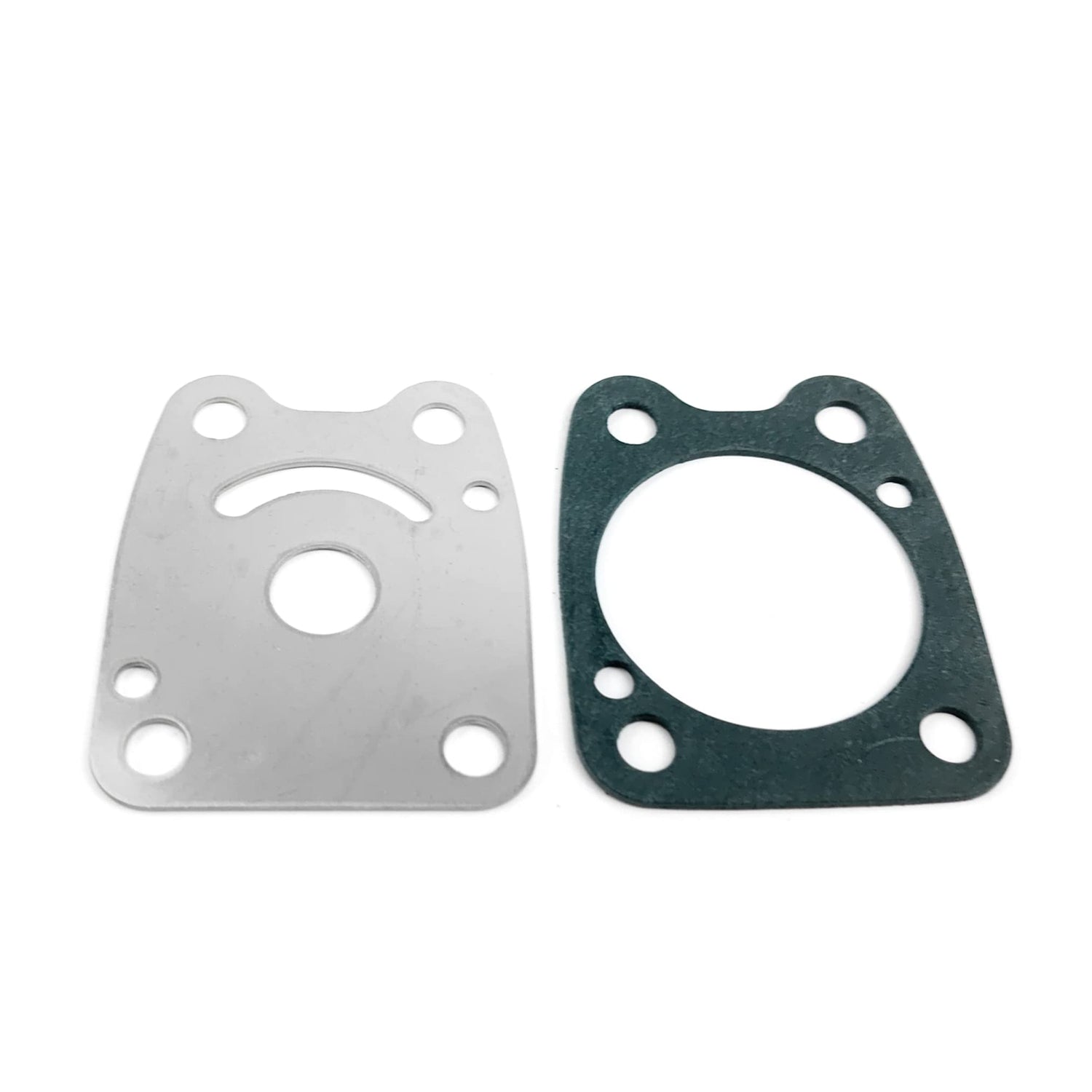

4. Outer Plate (6E0-44323-00-00)
5. Water Pump Gasket (68D-G4315-A0-00)
6. Dowel Pin (93604-18080-00) x 2
7. Water Damper Seal (67D-44366-00-00)

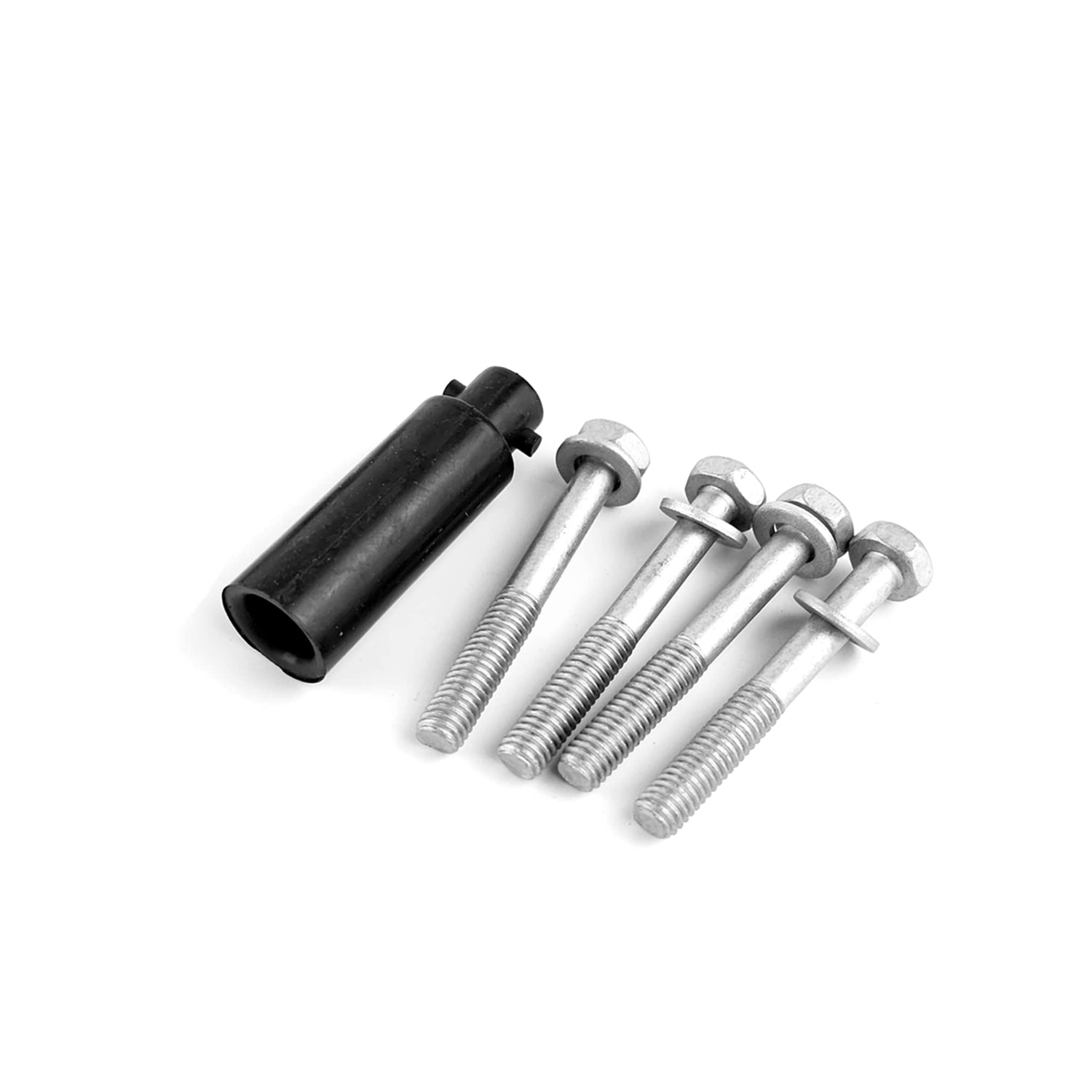

8. Bolts (97095-06045-00) x 4
