Oil Pan Gasket – Fits Volvo Penta 30, 31, 32 Series Diesel Engines ...
Product Details

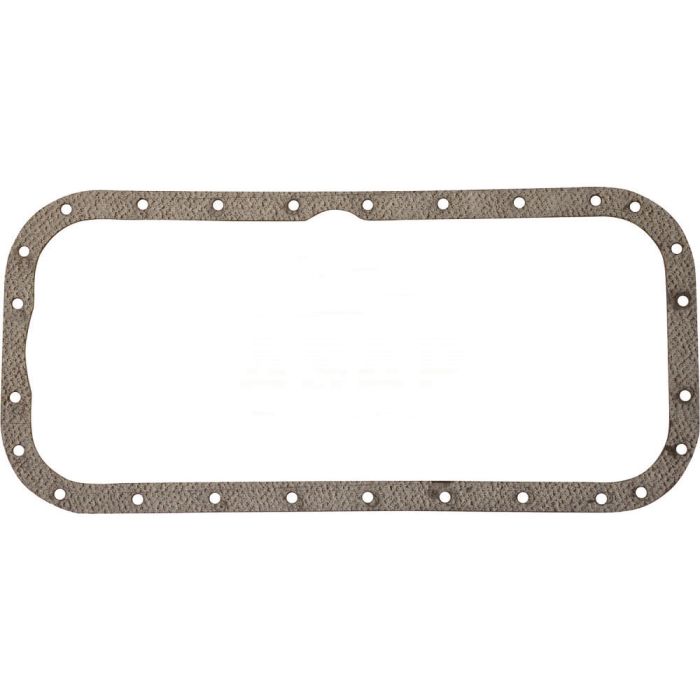

This high-quality Oil Pan Gasket is a direct-fit replacement for Volvo Penta 30, 31, and 32 series diesel engines manufactured between 1983 and 2007. It creates a reliable seal between the oil pan and the engine block, preventing oil leaks and ensuring proper engine lubrication.
This part offers a direct interchange for Volvo Penta part numbers 860684, 861250, 1544124, and 24419772, as well as aftermarket equivalents like Sierra 18-0307 and Orbitrade ORB14250.
- Installation: Designed for a direct replacement fit.
- Material: Made from a durable cork/rubber compound to resist oil and high temperatures.
- Type: An OEM-compatible aftermarket part manufactured to meet or exceed original specifications.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By | Notes |
|---|---|---|---|
| Volvo Penta | 860684 | 861250 | Original part number. |
| Volvo Penta | 861250 | 1544124 | |
| Volvo Penta | 1544124 | 24419772 | |
| Volvo Penta | 24419772 | Current OEM part number. | |
| Sierra | 18-0307 | Aftermarket cross-reference. | |
| Orbitrade | ORB14250 | Aftermarket cross-reference. |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This gasket is compatible with the following Volvo Penta diesel engines. While many models share a wide production range, specific years for some are noted.
| Brand | Model | Stroke | Years |
|---|---|---|---|
| Volvo Penta | AD30A | 4-Stroke | |
| Volvo Penta | AQAD30A | 4-Stroke | 1983–1986 |
| Volvo Penta | MD30A | 4-Stroke | |
| Volvo Penta | TAMD30A | 4-Stroke | |
| Volvo Penta | TMD30A | 4-Stroke | |
| Volvo Penta | AD31A | 4-Stroke | |
| Volvo Penta | AD31B | 4-Stroke | |
| Volvo Penta | AD31D-A | 4-Stroke | |
| Volvo Penta | AD31L-A | 4-Stroke | |
| Volvo Penta | AD31P-A | 4-Stroke | |
| Volvo Penta | AD31XD | 4-Stroke | |
| Volvo Penta | AQAD31A | 4-Stroke | 1986–1989 |
| Volvo Penta | MD31A | 4-Stroke | |
| Volvo Penta | TAMD31A | 4-Stroke | |
| Volvo Penta | TAMD31B | 4-Stroke | |
| Volvo Penta | TAMD31D | 4-Stroke | |
| Volvo Penta | TAMD31L-A | 4-Stroke | |
| Volvo Penta | TAMD31M-A | 4-Stroke | |
| Volvo Penta | TAMD31P-A | 4-Stroke | |
| Volvo Penta | TAMD31S-A | 4-Stroke | |
| Volvo Penta | TD31ACE | 4-Stroke | |
| Volvo Penta | TMD31A | 4-Stroke | |
| Volvo Penta | TMD31B | 4-Stroke | |
| Volvo Penta | TMD31D | 4-Stroke | |
| Volvo Penta | TMD31L-A | 4-Stroke | |
| Volvo Penta | KAD32P | 4-Stroke | |
| Volvo Penta | KAD32P-A | 4-Stroke |
Technical Specs
- Product Type
- Oil Pan Gasket
- Installation
- Direct replacement
- Fuel Type
- Diesel
- Housing Material
- Cork/Rubber Compound
- Dimensions
- 62.5 cm L x 30.5 cm W x 0.5 cm H
- Other Attributes
- OEM-compatible aftermarket replacement
What’s in the Box
- 1 x Oil Pan Gasket (Replaces 861250/24419772)
Installation Notes
- Ensure the engine is cool and all power sources are disconnected.
- Place a suitable drain pan under the engine and remove the oil drain plug to empty all engine oil.
- Unscrew the mounting bolts holding the oil pan in place. Keep track of bolt locations if they differ in length.
- Carefully tap the side of the pan with a soft mallet or pry gently at reinforced points to break the seal. Avoid bending the pan.
- Once loose, remove the old oil pan and its gasket.
- Thoroughly clean all old gasket material, sealant, and oil residue from both the engine block and the oil pan's mating surfaces. A plastic scraper can prevent gouging.
- Align the new gasket onto the clean, dry oil pan. Ensure all bolt holes line up perfectly.
- Re-install the oil pan. Hand-tighten the bolts first, then tighten them to the manufacturer's specified torque in the correct sequence (typically a crisscross pattern from the center outwards).
- Reinstall the oil drain plug, using a new washer if required.
- Refill the engine with the manufacturer-recommended oil type and quantity.
- Start the engine and carefully inspect the entire perimeter of the oil pan for any signs of leaks.
Troubleshooting & FAQ
How do I know if my oil pan gasket needs replacement?
Common signs include visible oil leaks dripping from the bottom of the engine, a low oil level warning light, or the smell of burning oil. Check the area where the oil pan meets the engine block for wetness or heavy grime buildup, which indicates a leak.
Will this gasket fit my specific engine model?
This gasket is designed for Volvo Penta 30, 31, and 32 series diesel engines. To ensure a perfect fit, please review the compatible models listed in the "Engine & Model Compatibility" section and verify it matches your specific engine.
Do I need to use sealant with this gasket?
This cork/rubber compound gasket is designed for a direct, dry-fit installation. However, some engine service manuals recommend applying a small amount of RTV sealant at corner joints or where other components meet. Always consult your engine's service manual for the most accurate instructions.
What is the correct way to tighten the oil pan bolts?
Proper tightening is critical to prevent leaks. Always tighten bolts in the sequence specified by the manufacturer (usually a spiral or cross pattern starting from the center) and to the correct torque value. Over-tightening can crush or split the gasket, while under-tightening will fail to create a seal.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
