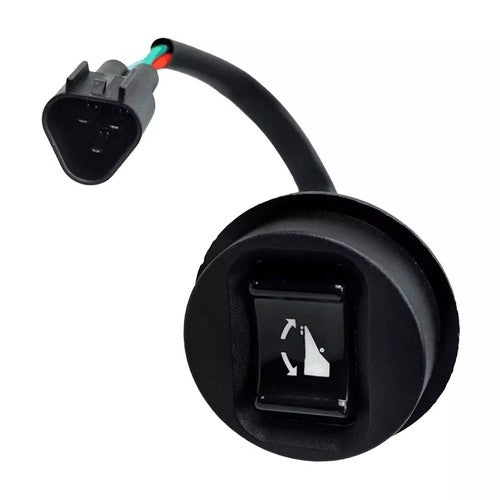

Trim and Tilt Switch Assembly – Fits Yamaha 15HP 40HP 50HP 60HP (Replaces 6R3-82563-01, 63D-82563-10, 61A-82563-01, 6H1-82563-10)

Product Details

This Trim and Tilt Switch Assembly is an aftermarket replacement designed for Yamaha outboard motors ranging from 15HP to 60HP across multiple model years. Compatible with F-series four-stroke and two-stroke T-series engines from 1995 through 2005, this switch controls the tilt and trim functions critical for adjusting motor angle and optimizing performance on the water.

Replaces OEM part numbers 6R3-82563-01, 63D-82563-10, 61A-82563-01, and 6H1-82563-10, ensuring direct fitment across a wide range of Yamaha applications.

• Direct plug-and-play installation into existing harness
• Engineered for saltwater and freshwater environments
• Controls both trim and tilt hydraulic systems

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

Technical Specs

Application

Yamaha Outboard Trim & Tilt Control

Voltage

12V DC

Interchange Part Numbers

6R3-82563-01, 63D-82563-10, 61A-82563-01, 6H1-82563-10

Mounting Type

Direct replacement

Function

Momentary contact switch for trim/tilt motor control

What's in the Box

• 1 × Trim and Tilt Switch Assembly

Installation Notes

1. Disconnect the battery negative terminal to prevent electrical shock or short circuit.
2. Locate the existing trim/tilt switch on the throttle control or remote handle.
3. Carefully disconnect the wiring harness from the old switch, noting wire positions if necessary.
4. Remove mounting hardware (screws or clips) securing the old switch assembly.
5. Position the new switch in the same orientation and secure with original or included fasteners.
6. Reconnect the wiring harness, ensuring connectors click firmly into place.
7. Reconnect the battery and test trim/tilt operation in both up and down directions.
8. Verify smooth motor movement and confirm switch returns to neutral position when released.

Troubleshooting & FAQ

How do I confirm this switch fits my exact Yamaha model?

Cross-reference your engine's model and year in the compatibility table above. You can also verify your original part number (stamped on the old switch or listed in your parts manual) against the OEM numbers this unit replaces: 6R3-82563-01, 63D-82563-10, 61A-82563-01, or 6H1-82563-10.

What if my trim/tilt still doesn't work after installing the new switch?

First, check battery voltage and all wiring connections for corrosion or loose terminals. Test the trim/tilt motor directly to rule out motor or relay failure. Inspect fuses and circuit breakers in the electrical panel. If the motor runs when bypassed, the issue may be in the harness or relay, not the switch.

Can I use this switch in saltwater applications?

Yes. The switch housing is designed to resist moisture and corrosion typical of marine environments. For extended lifespan, periodically rinse connections with freshwater and apply dielectric grease to terminals.

Is the wiring harness connector the same as OEM?

Yes. This is a direct-fit replacement with the same connector type and pin configuration as the original Yamaha switch, ensuring plug-and-play installation without splicing or adapters.

How often should I replace the trim/tilt switch?

Trim/tilt switches typically last many seasons under normal use. Replace when you experience intermittent operation, failure to actuate in one or both directions, or visible damage such as cracked housing or corroded terminals.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

• Verify images/specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
