Water Pump Impeller Kit – Fits Volvo Penta, Johnson/Jabsco, Yanmar ...
Product Details

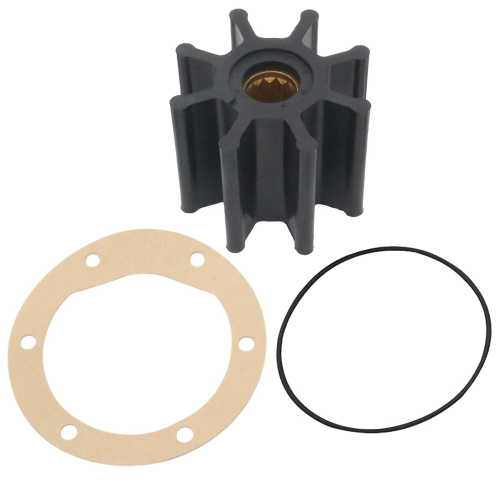

This marine Water Pump Impeller Kit is an essential replacement part for maintaining your engine's cooling system. It is designed for broad compatibility with various Volvo Penta diesel engines (including D4, D7, MD, TAMD, and AD series), select Yanmar marine engines, and raw water pumps from Johnson and Jabsco.
The kit provides a direct interchange for multiple OEM and aftermarket part numbers, ensuring a reliable fit and function. It includes the necessary gasket and O-ring for a complete installation.
- Features a durable neoprene impeller with a brass insert for longevity.
- Designed for an internal spline drive installation.
- Some models may include a threaded hub for easy removal with a puller tool.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket brands.
| Brand | Part Number |
|---|---|
| Volvo Penta | 21951356 |
| Volvo Penta | 3841697 |
| Volvo Penta | 875593 |
| Volvo Penta | 877061 |
| Johnson | 09-1028B |
| Johnson | 09-1028B-1 |
| Johnson | 09-1028BT-1 |
| Jabsco | 920-0001 |
| Jabsco | 920-0001-P |
| Jabsco | 17937-0001 |
| Sherwood | 18200K |
| Yanmar | 127610-42200 |
| Yanmar | 123325-42020 |
| Yanmar | 120650-42310 |
| Sierra | 18-3077 |
Engine & Model Compatibility
Confirm your engine model and series in the tables below. As year ranges can vary, always verify specifications against your existing part.
For Volvo Penta Engines: This impeller fits a wide array of D-series, TAMD, and other models.
| Brand | Model | Rated HP | Stroke | OEM Part No. |
|---|---|---|---|---|
| Volvo Penta | D4-145I | 145 | 4-Stroke | 21951356 |
| Volvo Penta | D4-150A | 150 | 4-Stroke | 21951356 |
| Volvo Penta | D4-175I | 175 | 4-Stroke | 21951356 |
| Volvo Penta | D4-180I | 180 | 4-Stroke | 21951356 |
| Volvo Penta | D4-210A, D4-210I | 210 | 4-Stroke | 21951356 |
| Volvo Penta | D4-225A, D4-225I | 225 | 4-Stroke | 21951356 |
| Volvo Penta | D4-230A, D4-230I | 230 | 4-Stroke | 21951356 |
| Volvo Penta | D4-260A, D4-260D, D4-260I | 260 | 4-Stroke | 21951356 |
| Volvo Penta | D4-270A, D4-270I | 270 | 4-Stroke | 21951356 |
| Volvo Penta | D4-300A, D4-300D, D4-300I | 300 | 4-Stroke | 21951356 |
| Volvo Penta | D4-320A, D4-320I | 320 | 4-Stroke | 21951356 |
| Volvo Penta | D41, D41A, D41B, D41D | 4-Stroke | 21951356 | |
| Volvo Penta | D41L-A | 4-Stroke | 21951356 | |
| Volvo Penta | D7A, D7C | 4-Stroke | 21951356 | |
| Volvo Penta | MD30, MD31, MD40, MD70, MD100, MD120 | 4-Stroke | 21951356 | |
| Volvo Penta | MD2010 | 4-Stroke | 21951356 | |
| Volvo Penta | AD30, AD31, AD40, AD41 | 4-Stroke | 21951356 | |
| Volvo Penta | AD31L-A, AD31XD | 4-Stroke | 21951356 | |
| Volvo Penta | AD41L-A, AD41P-A | 4-Stroke | 21951356 |
For Yanmar Engines: Compatible with specific BY and LH series engines.
| Brand | Model | Rated HP | Stroke | OEM Part No. |
|---|---|---|---|---|
| Yanmar | 4BY150, 4BY150Z | 150 | 4-Stroke | 127610-42200 |
| Yanmar | 4BY180, 4BY180Z | 180 | 4-Stroke | 127610-42200 |
| Yanmar | 4LHA-DTE, 4LHA-DTZE | 4-Stroke | 127610-42200 | |
| Yanmar | 4LHA-HTE, 4LHA-HTP | 4-Stroke | 127610-42200 | |
| Yanmar | 4LHA-STE, 4LHA-STP, 4LHA-STZE | 4-Stroke | 127610-42200 | |
| Yanmar | 4LH-DTE, 4LH-HTE, 4LH-STE, 4LH-TE | 4-Stroke | 127610-42200 | |
| Yanmar | 6BY220, 6BY220Z | 220 | 4-Stroke | 127610-42200 |
| Yanmar | 6BY260, 6BY260Z | 260 | 4-Stroke | 127610-42200 |
For Johnson/Jabsco Pumps: Fits several popular raw water pump models.
| Brand | Model | OEM Part No. | Notes |
|---|---|---|---|
| Jabsco | 17050-0001 | 920-0001 | Raw Water Pump |
| Jabsco | 29630-1101 | 920-0001 | Raw Water Pump |
| Jabsco | 9700-001 | 920-0001 | Raw Water Pump |
| Jabsco | 2300-9005 | 920-0001 | Raw Water Pump |
| Jabsco | 8170-9001 | 920-0001 | Raw Water Pump |
| Jabsco | 29630-1201 | 920-0001 | Raw Water Pump |
Technical Specs
- Product Type
- Water Pump Impeller Kit
- Installation
- Internal Spline Drive
- Outer Diameter
- 65 mm (2.56")
- Inner Shaft Diameter
- 15.8 mm (0.62")
- Width/Height
- 50.2 mm (1.97")
- Number of Blades
- 8
- Drive Type
- Spline Drive
- Insert Material
- Brass
- Impeller Material
- Neoprene
- Weight
- 215 g (0.47 lb)
- Color
- Black
What's in the Box
- 1 x Water Pump Impeller
- 1 x O-Ring
- 1 x Gasket/Seal
Installation Notes
- Before starting, shut off the engine and close the raw water intake seacock.
- Remove the cover plate from the sea water pump to access the impeller.
- Use impeller pullers or two pairs of pliers to grip the hub and pull the old impeller straight out. Avoid using screwdrivers, as this can damage the pump housing.
- Clean the interior of the pump housing and inspect it for scoring or damage.
- Lubricate the new impeller and the inside of the pump housing with a water-based lubricant or glycerin. Do not use petroleum-based grease.
- Insert the new impeller, bending the blades in the direction of the pump's rotation.
- Install the new O-ring or gasket on the clean cover plate, then secure the plate with its screws.
- Re-open the seacock, start the engine, and immediately check for proper water flow from the exhaust and for any leaks around the pump cover.
Troubleshooting & FAQ
How can I confirm this impeller fits my specific engine?
The best method is to match your existing part number to one listed in our Part Number Matrix. You should also check your engine model against the compatibility tables. If you're still unsure, compare the dimensions (Outer Diameter, Inner Shaft Diameter, and Width) with your old part before purchasing.
What are the signs of a failing water pump impeller?
The most common signs are engine overheating at idle or low speeds, and a noticeable reduction in water flow from your exhaust outlet. A visual inspection may also reveal cracked, stiff, or missing impeller blades.
How often should I replace my engine's impeller?
As a preventative maintenance best practice, most marine mechanics recommend replacing the impeller annually or every 100-200 hours of engine use, whichever comes first. Impellers can degrade over time even if the engine isn't used, so yearly replacement is a safe guideline.
Does this kit come with an impeller puller tool?
No, this kit contains only the impeller and its required gasket/O-ring. The impeller puller tool is sold separately. Some impeller versions have a threaded-on-one-side design to aid removal with the correct puller tool.
What is the difference between a neoprene and nitrile impeller?
This impeller is made from neoprene, which is the standard material for raw water (sea water or fresh water) pumping applications. Nitrile impellers are used for pumping oily or diesel-contaminated water, as neoprene can swell and degrade when exposed to petroleum products.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9001 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
