130° Thermostat Kit – Fits Mercury/Mariner 30-40 HP 2-Stroke (Replaces 14586A7)

$31.80 $50.00

Shipping calculated at checkout.

130° Thermostat Kit – Fits Mercury/Mariner 30-40 HP 2-Stroke (Replaces 14586A7) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This 130° Thermostat Kit is an aftermarket replacement designed for Mercury/Mariner 30-40 HP, 2-Cylinder, 2-Stroke outboard engines manufactured between 1994 and 1998. It ensures your engine maintains the correct operating temperature for optimal performance and efficiency.

This kit serves as a direct replacement for Mercury Marine part number 14586A7 and GLM part 13201.

Direct-fit replacement for a straightforward, hassle-free installation.
Maintains a consistent 130°F (54.4°C) operating temperature.
Includes thermostat, gaskets, poppet, and all necessary hardware for a complete service.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket brands.

Brand	Part Number
Mercury Marine	14586A7
GLM	13201

Engine & Model Compatibility

Confirm your engine model/year in the table below.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Mercury/Mariner/Force	30 (2-Cylinder)	30	2-Stroke	1994–1998	14586A7	Made in USA, Serial Range: 0G044027 and Up
Mercury/Mariner/Force	30 (2-Cylinder)	30	2-Stroke	1994–1998	14586A7	Made in BEL, Serial Range: 9855139 and Up
Mercury/Mariner/Force	40 (2-Cylinder)	40	2-Stroke	1994–1998	14586A7	Made in USA, Serial Range: 0G044027 and Up
Mercury/Mariner/Force	40 (2-Cylinder)	40	2-Stroke	1980–1983	14586A7	Made in BEL, Serial Range: 9855139 and Up

Technical Specs

Product Type: Thermostat Kit
Operating Temperature: 130°F (54.4°C)
Installation: Direct replacement
Fitting Type: Direct-fit replacement
Dimensions: Height: 30 mm (1.2 in), Width: 100 mm (3.9 in), Depth: 150 mm (5.9 in)
Weight: 0.05 kg (1.8 oz)
Included Screw Size: #10-16 x 3/4

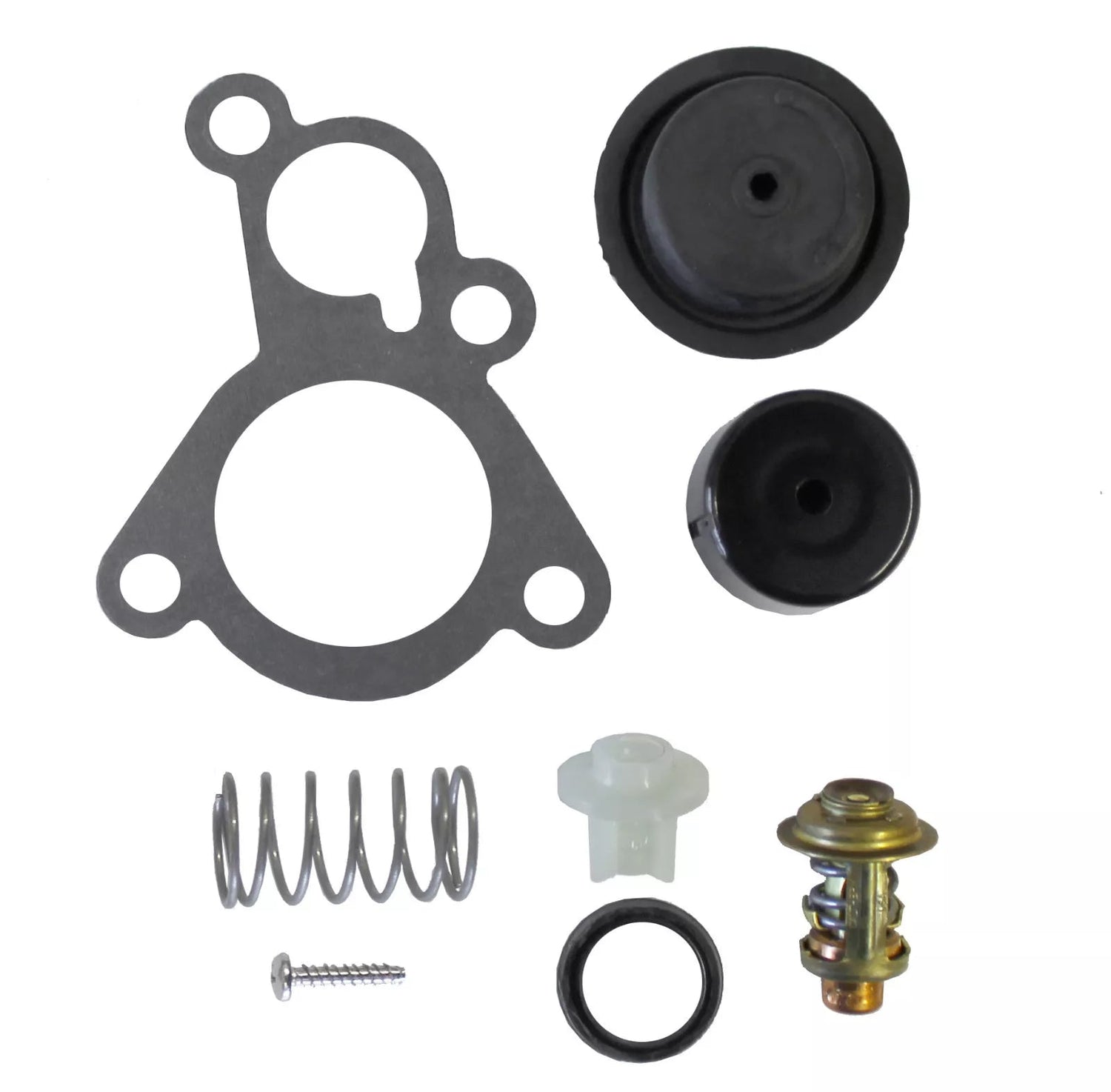

What’s in the Box

1 x Thermostat (700-13200)
1 x Poppet (700-13802)
1 x Cup (700-13803)
1 x Diaphragm (700-13809)
1 x Spring (700-13823)
1 x Screw #10-16x3/4 (700-21751)
1 x Gasket (700-30610)
1 x Gasket (700-35090)

Installation Notes

Ensure the engine is completely cool and disconnect the battery.
Place a drain pan under the engine and drain the cooling system.
Locate the thermostat housing on the engine block.
Remove the bolts securing the housing cover. Note their orientation.
Carefully remove the old thermostat, gaskets, and poppet assembly.
Thoroughly clean all mating surfaces of old gasket material and corrosion.
Install the new thermostat, poppet valve, spring, and gaskets from the kit. Ensure the thermostat is oriented correctly.
Securely re-install the housing cover and tighten bolts to the manufacturer’s specified torque.
Refill the cooling system with the appropriate coolant.
Reconnect the battery, start the engine, and carefully check for any leaks around the housing.
Allow the engine to reach operating temperature to confirm the thermostat opens correctly.

Troubleshooting & FAQ

How do I confirm this kit fits my specific engine?

The surest way is to match your engine's model, year, and serial number against the compatibility table. The serial number range is critical for ensuring a precise fit, especially for Mercury/Mariner engines. Always double-check the OEM part number (14586A7) listed in your service manual.

There’s a year discrepancy for the 40 HP model. Which is correct?

Our data shows two possible year ranges for the 40 HP 2-Cylinder engine based on manufacturing location (USA vs. Belgium) and serial number. We have included both known ranges (1994–1998 and 1980–1983) to cover all possibilities. Please use your engine's serial number as the primary guide for confirming fitment.

What are the common signs of a failing thermostat?

A thermostat can fail by sticking open or closed. If it sticks open, your engine will take a very long time to warm up or may never reach proper operating temperature, leading to poor performance and fuel economy. If it sticks closed, the engine will overheat quickly, which can cause severe damage.

How often should a marine thermostat be replaced?

For preventative maintenance, it is recommended to inspect your thermostat annually and replace it every 2-3 years, or approximately every 200-300 service hours, especially if operating in saltwater. Always replace it if you notice signs of corrosion or incorrect temperature regulation.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost?

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns?

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
