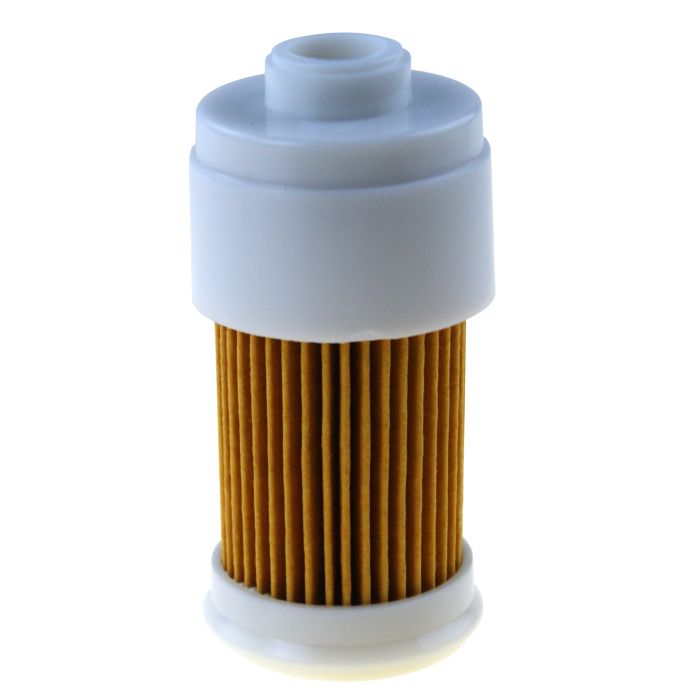

Fuel Filter Element – Fits Yamaha 150-300 HP HPDI Outboards (Replaces 68F-24563-10-00)
Fuel Filter Element – Fits Yamaha 150-300 HP HPDI Outboards (Replaces 68F-24563-10-00) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Fuel Filter Element – Fits Yamaha 150-300 HP HPDI Outboards (Replac...
Product Details
This Fuel Filter Element – Fits Yamaha 150-300 HP HPDI Outboards (Replaces 68F-24563-10-00) is designed for Yamaha 150-300 HP HPDI 2-Stroke outboard engines from 2004–2005. With a 10-micron filtration rating, it ensures clean fuel delivery for Yamaha's High Pressure Direct Injection (HPDI) system, protecting critical engine components from contaminants.
This element serves as a direct replacement for Yamaha part number 68F-24563-10-00, as well as aftermarket equivalents Sierra 18-7955 and WSM 600-298.
- Simple drop-in cartridge design for easy replacement.
- Engineered specifically for gasoline-fueled HPDI outboards.
- Maintains fuel system integrity by trapping fine particles.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.
| Brand | Part Number |
|---|---|
| Yamaha | 68F-24563-10-00 |
| Sierra | 18-7955 |
| WSM | 600-298 |
Engine & Model Compatibility
Confirm your engine model and year in the table below to ensure correct fitment.
This filter element is designed for a specific range of Yamaha HPDI (High Pressure Direct Injection) 2-stroke outboard models. Please verify your engine's model code against this list.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | LZ150TXR | 150 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | LZ150TXRD | 150 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
| Yamaha | LZ200TXR | 200 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | LZ200TXRD | 200 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
| Yamaha | LZ250TUR | 250 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | LZ250TURD | 250 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
| Yamaha | LZ250TXR | 250 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | LZ250TXRD | 250 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
| Yamaha | LZ300TUR | 300 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | LZ300TURC | 300 | 2-Stroke | 2004 | 68F-24563-10-00 | HPDI |
| Yamaha | LZ300TURD | 300 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
| Yamaha | LZ300TXR | 300 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | LZ300TXRC | 300 | 2-Stroke | 2004 | 68F-24563-10-00 | HPDI |
| Yamaha | LZ300TXRD | 300 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
| Yamaha | VZ150TLR | 150 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | VZ150TLRD | 150 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
| Yamaha | VZ175TLR | 175 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | VZ175TLRD | 175 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
| Yamaha | VZ200TLR | 200 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | VZ200TLRD | 200 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
| Yamaha | VZ225TLR | 225 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | VZ225TLRD | 225 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
| Yamaha | VZ250TLR | 250 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | VZ250TLRD | 250 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
| Yamaha | VZ300TLR | 300 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | VZ300TLRC | 300 | 2-Stroke | 2004 | 68F-24563-10-00 | HPDI |
| Yamaha | VZ300TLRD | 300 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
| Yamaha | Z150TXR | 150 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | Z150TXRD | 150 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
| Yamaha | Z175TXR | 175 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | Z175TXRD | 175 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
| Yamaha | Z200TLR | 200 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | Z200TLRD | 200 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
| Yamaha | Z200TXR | 200 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | Z200TXRD | 200 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
| Yamaha | Z250TUR | 250 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | Z250TURD | 250 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
| Yamaha | Z250TXR | 250 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | Z250TXRD | 250 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
| Yamaha | Z300TUR | 300 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | Z300TURC | 300 | 2-Stroke | 2004 | 68F-24563-10-00 | HPDI |
| Yamaha | Z300TURD | 300 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
| Yamaha | Z300TXR | 300 | 2-Stroke | 2004–2005 | 68F-24563-10-00 | HPDI |
| Yamaha | Z300TXRC | 300 | 2-Stroke | 2004 | 68F-24563-10-00 | HPDI |
| Yamaha | Z300TXRD | 300 | 2-Stroke | 2005 | 68F-24563-10-00 | HPDI |
Technical Specs
- Product Type
- Fuel Filter Element
- Installation
- In-line replacement cartridge
- Filtration Rating
- 10 micron
- Fuel Type
- Gasoline
- Connection
- Drop-in cartridge (filter element only)
- Housing Material
- Paper/synthetic filter media
- Housing Color
- White with yellow/tan pleated media
- Dimensions
- Height: 4.5 in, Width: 8.0 in, Length: 14.0 in
- Weight
- 0.1 kg (0.22 lb)
- Warranty
- 1 Year (aftermarket)
- Other Technical Attributes
- Designed for HPDI (High Pressure Direct Injection) fuel system
What’s in the Box
- 1 x Fuel Filter Element (68F-24563-10-00)
Installation Notes
- Before starting, ensure the engine is off and cool. Relieve fuel system pressure according to your engine's service manual to prevent spills.
- Locate the fuel filter housing on your engine. Place an absorbent shop towel underneath to catch any residual fuel.
- Carefully disconnect the fuel lines and remove the housing cover or canister, taking note of the orientation of any seals or O-rings.
- Remove the old filter element. Clean the inside of the housing with a clean, lint-free cloth.
- Install the new filter element, ensuring it is seated correctly.
- Reassemble the housing, making sure any gaskets or O-rings are properly positioned and lubricated if required.
- Securely reconnect the fuel lines.
- Prime the fuel system using the primer bulb until firm.
- Start the engine and carefully inspect the filter housing and connections for any leaks.
Troubleshooting & FAQ
How do I know if this filter fits my Yamaha HPDI engine?
This filter is specifically for Yamaha 150-300 HP HPDI 2-Stroke models made between 2004 and 2005. The best way to confirm fitment is to match your engine's model and year to the compatibility table provided on this page.
What is the recommended replacement interval for this fuel filter?
For optimal performance and engine protection, it is recommended to replace your fuel filter every 100 operating hours or at least once per season, whichever comes first. Refer to your owner's manual for specific service schedules.
What are the signs that my fuel filter needs to be replaced?
Common symptoms of a clogged or failing fuel filter include engine hesitation, loss of power, difficulty starting, stalling at low speeds, and inconsistent engine performance. If you notice any of these issues, inspect and replace the filter.
Is this a direct replacement for the Yamaha 68F-24563-10-00 filter?
Yes, this is a direct aftermarket replacement for the OEM Yamaha part 68F-24563-10-00. It is also an interchange for Sierra 18-7955 and WSM 600-298.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
