Fuel Filter Element – Fits Yamaha 50-115 HP Outboards (Replaces 68V...
Product Details

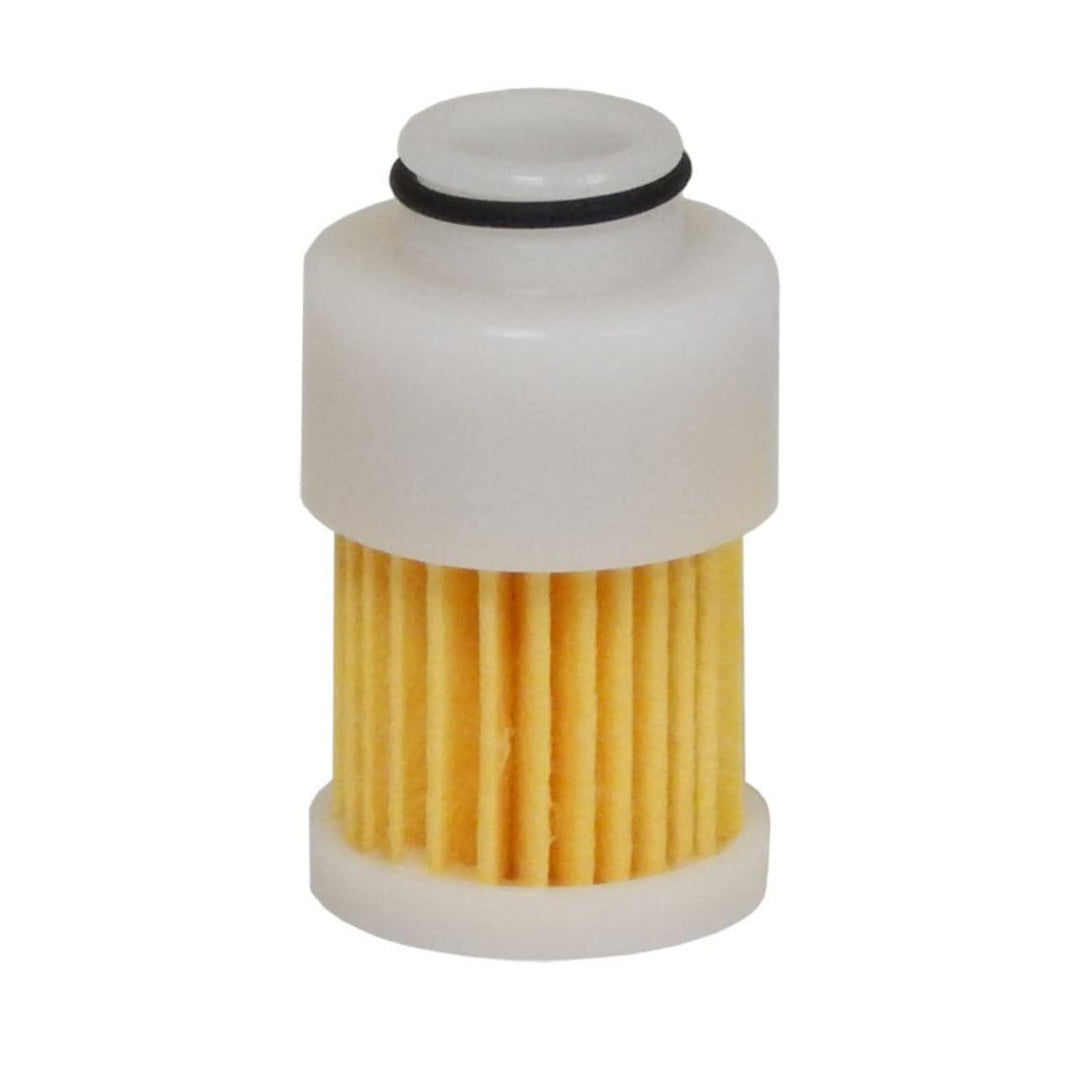

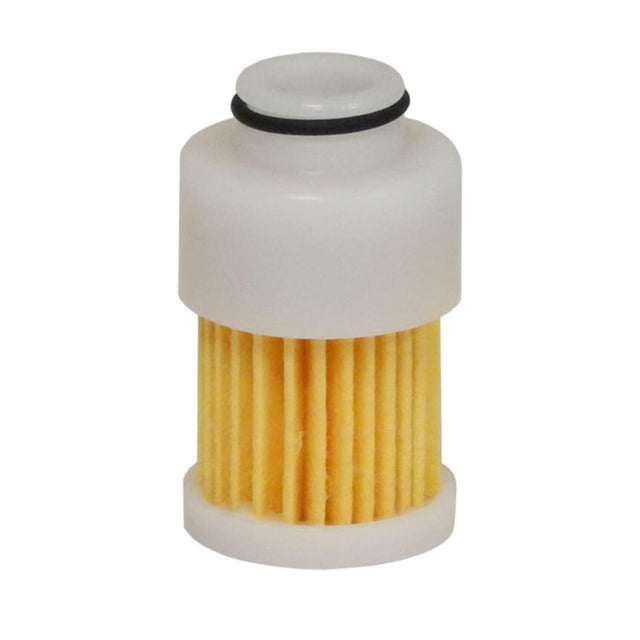

This Fuel Filter Element – Fits Yamaha 50-115 HP Outboards is designed to protect your engine by screening out contaminants from the fuel supply. It is engineered for a direct fit on a wide range of Yamaha 4-stroke outboards from 50–115 HP manufactured between 2000–2006, including F50, F60, T50, T60, F75, F90, F115, and LF115 models.
It serves as a direct replacement for Yamaha 68V-24563-00-00 and interchanges with Mercury 881540, Sierra 18-7979, and Mallory 9-37961.
- Easy to install as an in-line fuel filter element.
- Designed for gasoline-fueled marine engines.
- Built to original equipment specifications for reliable performance.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 68V-24563-00-00 |
| Mercury | 881540 |
| Sierra | 18-7979 |
| Mallory | 9-37961 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This element is designed for select Yamaha 4-stroke models from 50HP to 115HP.
This element is also compatible with certain Mercury 4-stroke engines that use equivalent part numbers.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. |
|---|---|---|---|---|---|
| Yamaha | F115TJR | 115 | 4-Stroke | 2004–2005 | 68V-24563-00-00 |
| Yamaha | F115TJRA | 115 | 4-Stroke | 2002 | 68V-24563-00-00 |
| Yamaha | F115TJRB | 115 | 4-Stroke | 2003 | 68V-24563-00-00 |
| Yamaha | F115TJRC | 115 | 4-Stroke | 2004 | 68V-24563-00-00 |
| Yamaha | F115TJRD | 115 | 4-Stroke | 2005 | 68V-24563-00-00 |
| Yamaha | F115TLR | 115 | 4-Stroke | 2004–2005 | 68V-24563-00-00 |
| Yamaha | F115TLRA | 115 | 4-Stroke | 2002 | 68V-24563-00-00 |
| Yamaha | F115TLRB | 115 | 4-Stroke | 2003 | 68V-24563-00-00 |
| Yamaha | F115TLRC | 115 | 4-Stroke | 2004 | 68V-24563-00-00 |
| Yamaha | F115TLRD | 115 | 4-Stroke | 2005 | 68V-24563-00-00 |
| Yamaha | F115TLRY | 115 | 4-Stroke | 2000 | 68V-24563-00-00 |
| Yamaha | F115TLRZ | 115 | 4-Stroke | 2001 | 68V-24563-00-00 |
| Yamaha | F115TXR | 115 | 4-Stroke | 2004–2005 | 68V-24563-00-00 |
| Yamaha | F115TXRA | 115 | 4-Stroke | 2002 | 68V-24563-00-00 |
| Yamaha | F115TXRB | 115 | 4-Stroke | 2003 | 68V-24563-00-00 |
| Yamaha | F115TXRC | 115 | 4-Stroke | 2004 | 68V-24563-00-00 |
| Yamaha | F115TXRD | 115 | 4-Stroke | 2005 | 68V-24563-00-00 |
| Yamaha | F115TXRY | 115 | 4-Stroke | 2000 | 68V-24563-00-00 |
| Yamaha | F115TXRZ | 115 | 4-Stroke | 2001 | 68V-24563-00-00 |
| Yamaha | F50TLR | 50 | 4-Stroke | 2004–2005 | 68V-24563-00-00 |
| Yamaha | F50TLRD | 50 | 4-Stroke | 2005 | 68V-24563-00-00 |
| Yamaha | F60TJR | 60 | 4-Stroke | 2004–2005 | 68V-24563-00-00 |
| Yamaha | F60TJRD | 60 | 4-Stroke | 2005 | 68V-24563-00-00 |
| Yamaha | F60TLR | 60 | 4-Stroke | 2004–2005 | 68V-24563-00-00 |
| Yamaha | F60TLRD | 60 | 4-Stroke | 2005 | 68V-24563-00-00 |
| Yamaha | F75TLR | 75 | 4-Stroke | 2004–2005 | 68V-24563-00-00 |
| Yamaha | F75TLRD | 75 | 4-Stroke | 2005 | 68V-24563-00-00 |
| Yamaha | F90TJR | 90 | 4-Stroke | 2004–2005 | 68V-24563-00-00 |
| Yamaha | F90TJRD | 90 | 4-Stroke | 2005 | 68V-24563-00-00 |
| Yamaha | F90TLR | 90 | 4-Stroke | 2004–2005 | 68V-24563-00-00 |
| Yamaha | F90TLRD | 90 | 4-Stroke | 2005 | 68V-24563-00-00 |
| Yamaha | F90TXR | 90 | 4-Stroke | 2004–2005 | 68V-24563-00-00 |
| Yamaha | F90TXRD | 90 | 4-Stroke | 2005 | 68V-24563-00-00 |
| Yamaha | LF115TXR | 115 | 4-Stroke | 2004–2005 | 68V-24563-00-00 |
| Yamaha | LF115TXRA | 115 | 4-Stroke | 2002 | 68V-24563-00-00 |
| Yamaha | LF115TXRB | 115 | 4-Stroke | 2003 | 68V-24563-00-00 |
| Yamaha | LF115TXRC | 115 | 4-Stroke | 2004 | 68V-24563-00-00 |
| Yamaha | LF115TXRD | 115 | 4-Stroke | 2005 | 68V-24563-00-00 |
| Yamaha | LF115TXRY | 115 | 4-Stroke | 2000 | 68V-24563-00-00 |
| Yamaha | LF115TXRZ | 115 | 4-Stroke | 2001 | 68V-24563-00-00 |
| Yamaha | T50TLR | 50 | 4-Stroke | 2004–2005 | 68V-24563-00-00 |
| Yamaha | T50TLRD | 50 | 4-Stroke | 2005 | 68V-24563-00-00 |
| Yamaha | T60TLR | 60 | 4-Stroke | 2004–2005 | 68V-24563-00-00 |
| Yamaha | T60TLRD | 60 | 4-Stroke | 2005 | 68V-24563-00-00 |
| Mercury | 115 EFI | 115 | 4-Stroke | 881540 | |
| Mercury | 75 HP | 75 | 4-Stroke | 881540 | |
| Mercury | 75 HP (Bodensee) | 75 | 4-Stroke | 881540 | |
| Mercury | 90 HP | 90 | 4-Stroke | 881540 |
Technical Specs
- Product Type
- Fuel Filter Element
- Installation
- In-line fuel filter
- Fuel Type
- Gasoline
- Connection
- Direct insertion into filter housing
- Housing Material
- Plastic
- Housing Color
- White
- Dimensions
- 13.0 x 10.0 x 3.0 inches
- Weight
- 0.317 ounces (9 grams)
- Fitting Type
- Direct fit for Yamaha housing
- Warranty
- Manufacturer warranty
- Other Attributes
- Aftermarket part built to OEM specifications
What’s in the Box
- 1 x Element, Filter (68V-24563-00-00)
Installation Notes
- Before starting, relieve the fuel system pressure according to your engine's service manual.
- Locate the fuel filter housing on your outboard motor.
- Carefully disassemble the filter housing, taking note of the orientation of the old element.
- Remove the old filter element and discard it properly.
- Clean the inside of the filter housing and inspect it for any cracks or damage.
- Install the new filter element, ensuring it is seated correctly.
- Reassemble the housing securely, then prime the fuel system and check for any leaks before starting the engine.
Troubleshooting & FAQ
How do I know if this fuel filter fits my engine?
This filter is designed for most Yamaha 4-stroke outboards from 50–115 HP manufactured between 2000–2006. To ensure a correct fit, please find your specific model and year in the compatibility table above before ordering.
What are the signs of a clogged fuel filter?
Common symptoms of a dirty or failing fuel filter include engine hesitation, sputtering, rough idling, reduced power, or difficulty starting. If you experience these issues, a clogged filter is a likely cause.
How often should I replace my outboard fuel filter?
For optimal performance and engine protection, it is recommended to replace the fuel filter annually or every 100 hours of operation, whichever comes first. Always refer to your owner's manual for specific service intervals.
Is this a genuine Yamaha part?
No, this is a high-quality aftermarket part designed to meet or exceed OEM specifications for Yamaha part number 68V-24563-00-00 and other cross-referenced part numbers.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
