Fuel Injector – Fits Yamaha F200/F225/F250/LF250 (Replaces 6P2-13761-00-00)
Fuel Injector – Fits Yamaha F200/F225/F250/LF250 (Replaces 6P2-13761-00-00) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Fuel Injector – Fits Yamaha F200/F225/F250/LF250 (Replaces 6P2-1376...
Product Details

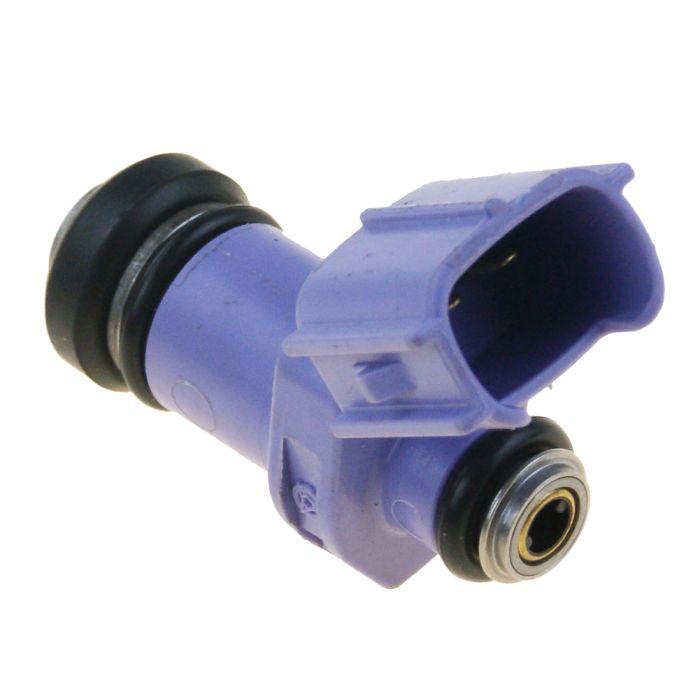

This aftermarket Fuel Injector – Fits Yamaha F200/F225/F250/LF250 (Replaces 6P2-13761-00-00) is designed for Yamaha 4-Stroke 200–250 HP F200, F225, F250, LF200, LF225, and LF250 series outboard motors from model years 2005–2015.
It serves as a direct interchange for Yamaha part numbers 6P2-13761-00-00, 6P2-13761-10-00, and 6P2-13761-11-00.
- Installation Method: Direct Replacement
- Advanced Design: Features a modern 4-hole nozzle for improved fuel atomization.
- Connection Type: Plugs in with a standard EV6 electrical connector.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 6P2-13761-00-00 |
| Yamaha | 6P2-13761-10-00 |
| Yamaha | 6P2-13761-11-00 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Yamaha Outboard Motors:
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F200XA | 200 | 4-Stroke | 2011–2015 | 6P2-13761-00-00 | Throttle Body Assembly 3 |
| Yamaha | LF200XA | 200 | 4-Stroke | 2011–2015 | 6P2-13761-00-00 | Throttle Body Assembly 3 |
| Yamaha | F225XA | 225 | 4-Stroke | 2011–2015 | 6P2-13761-00-00 | Throttle Body Assembly 3 |
| Yamaha | F225TLR | 225 | 4-Stroke | 2007–2009 | 6P2-13761-00-00 | Throttle Body Assembly 3 |
| Yamaha | F250XA | 250 | 4-Stroke | 2012–2015 | 6P2-13761-00-00 | Throttle Body Assembly 3 |
| Yamaha | F250TXR | 250 | 4-Stroke | 2006–2011 | 6P2-13761-00-00 | Throttle Body Assembly 3 |
| Yamaha | F250TUR | 250 | 4-Stroke | 2006–2011 | 6P2-13761-00-00 | Throttle Body Assembly 3 |
| Yamaha | LF250XA | 250 | 4-Stroke | 2012–2015 | 6P2-13761-00-00 | Throttle Body Assembly 3 |
| Yamaha | LF250TUR | 250 | 4-Stroke | 2006–2011 | 6P2-13761-00-00 | Throttle Body Assembly 3 |
| Yamaha | LF250TXR | 250 | 4-Stroke | 2006–2011 | 6P2-13761-00-00 | Throttle Body Assembly 3 |
| Yamaha | LF250BTUR | 250 | 4-Stroke | 2008–2009 | 6P2-13761-00-00 | Throttle Body Assembly 3 |
| Yamaha | LF250BTXR | 250 | 4-Stroke | 2008–2009 | 6P2-13761-00-00 | Throttle Body Assembly 3 |
| Yamaha | F250BTUR | 250 | 4-Stroke | 2008–2010 | 6P2-13761-00-00 | Throttle Body Assembly 3 |
| Yamaha | F250BTXR | 250 | 4-Stroke | 2008–2010 | 6P2-13761-00-00 | Throttle Body Assembly 3 |
| Yamaha | F250UA | 250 | 4-Stroke | 2012–2013 | 6P2-13761-00-00 | Throttle Body Assembly 3 |
| Yamaha | LF250UA | 250 | 4-Stroke | 2012–2013 | 6P2-13761-00-00 | Throttle Body Assembly 3 |
Technical Specs
- Product Type
- Fuel Injector
- Installation
- Direct Replacement
- Fuel Type
- Gasoline
- Connection
- Electrical Connector (EV6)
- Housing Material
- Metal
- Housing Color
- Purple (Aftermarket) / Black (OEM)
- Dimensions
- 6.0" L × 0.8" W × 0.9" H
- Weight
- 90.7 g (3.2 oz)
- Fitting Type
- Barb
- Nozzle Design
- 4-hole
- Outlet Connection Size
- 3.3 mm (0.13 inches)
- Warranty
- 1 year (Aftermarket)
What’s in the Box
- 1 x Injector Assembly (Replaces 6P2-13761-00-00/10-00/11-00)
Installation Notes
- Relieve fuel system pressure according to the service manual.
- Disconnect the negative terminal from the battery.
- Unplug the electrical connectors from the fuel injectors.
- Remove the fuel rail mounting bolts and lift the rail assembly.
- Carefully remove the old injector from the fuel rail or cylinder head.
- Lightly lubricate the new O-rings with clean engine oil before installation.
- Press the new injector firmly into place.
- Re-secure the fuel rail and torque its mounting bolts to the manufacturer's specification.
- Reconnect the electrical connectors to each injector.
- Reconnect the battery.
- Prime the fuel system and carefully check for any leaks before starting the engine.
Troubleshooting & FAQ
How do I know if my fuel injector is failing?
Common signs of a faulty fuel injector include engine misfires, rough idling, poor acceleration, increased fuel consumption, or difficulty starting. Diagnostic checks may show fuel mixture error codes.
What's the difference between the OEM black injector and this purple one?
The color is the primary difference, used by aftermarket manufacturers to distinguish their parts from OEM components. This injector is functionally equivalent and built to meet or exceed original specifications for fit and performance.
Is this a direct fit for my Yamaha F250TXR engine?
Yes, this injector is compatible with the Yamaha F250TXR for model years 2006–2011. Always confirm by checking the part number on your original injector and consulting our compatibility table.
What is the benefit of a 4-hole nozzle design?
The 4-hole nozzle provides a finer, more evenly distributed fuel spray. This improved atomization leads to more efficient combustion, which can enhance engine performance and fuel economy.
Should I replace all injectors at once?
While you can replace a single failed injector, it is recommended to replace them as a complete set. This ensures balanced fuel delivery across all cylinders, as old injectors may have different flow rates compared to a new one.
Are the 6P2-13761-00-00, -10-00, and -11-00 versions interchangeable?
Yes, these part numbers are considered interchangeable replacements for each other. Yamaha often updates numbers over time for minor revisions, but they fit the same applications listed.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
