Product Details

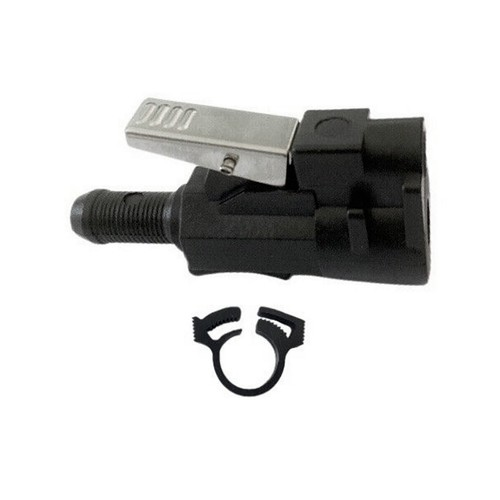

This Fuel Line Connector – Fits Mercury/Mariner 4-40 HP (Replaces 22-13563Q7, 13563A7, 13563T7) is designed for a wide range of Mercury and Mariner 2-stroke and 4-stroke outboard engines from 4 HP to 40 HP, covering models from the 1990s to current production years. It ensures a secure, leak-free connection for your fuel system.
It serves as a direct interchange for Mercury parts 22-13563Q7, 22-13563A7, and 22-13563T7, as well as aftermarket equivalents like Sierra 18-8091, Mallory 9-38011, Attwood 8890LP6, and Scepter 05793.
- Installation: Quick-disconnect female connector for the fuel tank end.
- Compatibility: Designed for a 5/16" (8mm) fuel hose.
- Mating Part: Pairs with the 18-80402 male tank connector.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Mercury | 22-13563Q7 |
| Mercury | 22-13563A7 |
| Mercury | 22-13563T7 |
| Sierra | 18-8091 |
| Mallory | 9-38011 |
| Attwood | 8890LP6 |
| Scepter | 05793 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This connector is designed for Mercury and Mariner outboards at the fuel tank end of the fuel line assembly.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Mercury | Outboard | 4 | 2-Stroke & 4-Stroke | 0P017000–0P400999 | 22-13563Q7/A7/T7 | Tank End |
| Mercury | Outboard | 4 | 2-Stroke & 4-Stroke | 0P401000 & Up | 22-13563Q7/A7/T7 | Tank End |
| Mercury | Outboard | 4 | 2-Stroke & 4-Stroke | 0G710613–0T894438 | 22-13563Q7/A7/T7 | Tank End |
| Mercury | Outboard | 4 | 2-Stroke & 4-Stroke | 0T894439 & Up | 22-13563Q7/A7/T7 | Tank End |
| Mercury | Outboard | 5 | 2-Stroke & 4-Stroke | 0P017000–0P400999 | 22-13563Q7/A7/T7 | Tank End |
| Mercury | Outboard | 5 | 2-Stroke & 4-Stroke | 0P401000 & Up | 22-13563Q7/A7/T7 | Tank End |
| Mercury | Outboard | 5 | 2-Stroke & 4-Stroke | 0G710613–0T894438 | 22-13563Q7/A7/T7 | Tank End |
| Mercury | Outboard | 5 | 2-Stroke & 4-Stroke | 0T894439 & Up | 22-13563Q7/A7/T7 | Tank End |
| Mercury | Outboard | 40 | 2-Stroke & 4-Stroke | 0P017000–0P400999 | 22-13563Q7/A7/T7 | Tank End |
| Mercury | Outboard | 40 | 2-Stroke & 4-Stroke | 0G710613–0T894438 | 22-13563Q7/A7/T7 | Tank End |
| Mercury | Outboard | 40 | 2-Stroke & 4-Stroke | 0T894439 & Up | 22-13563Q7/A7/T7 | Tank End |
| Mercury | Sportjet | Various | 22-13563Q7/A7/T7 | For fuel line assemblies with clip-on disconnect |
Technical Specs
- Product Type
- Quick Disconnect Fuel Line Connector
- Installation
- Female Tank End
- Fuel Type
- Gasoline
- Connection
- 5/16" (8mm) Fuel Hose
- Housing Material
- Plastic with Metal Clip
- Housing Color
- Black
- Dimensions
- Dimensions vary by manufacturer [verify orientation]
- Weight
- Approximately 0.05 kg (1.76 oz)
- Fitting Type
- Quick Disconnect Female
- Thread Size
- N/A (Clip-on type)
- Warranty
- Standard manufacturer warranty
- Other Technical Attributes
- Mates with 18-80402 tank connector
What’s in the Box
- 1 x Fuel Connector (22-13563Q7/22-13563A7/22-13563T7)
Installation Notes
- Ensure the engine is off and the area is well-ventilated before starting.
- Disconnect the negative battery terminal as a safety precaution.
- Relieve pressure from the fuel line by following the manufacturer's procedure. Have a rag ready to catch any residual fuel.
- Using pliers, release the clamp securing the old connector to the fuel hose and slide it off.
- Slide a new hose clamp onto the fuel line, then firmly press the new female connector onto the hose barb.
- Position and tighten the hose clamp to secure the connector to the hose.
- Clip the new connector onto the male fitting on the fuel tank, ensuring it clicks securely into place.
- Reconnect the battery, prime the fuel system using the primer bulb until it feels firm, and carefully inspect for any leaks before starting the engine.
Troubleshooting & FAQ
How do I know if this connector is the right one for my engine?
This connector fits a wide range of Mercury/Mariner 4–40 HP outboards (2-stroke and 4-stroke). The best way to confirm is to check your existing part number against the references in our Part Number Matrix. Also, verify that you need a female connector for the fuel tank side that connects to a 5/16" (8mm) hose.
What is the difference between the tank-end and engine-end connector?
This is a female tank-end connector, which clips onto the male fitting on your portable fuel tank. The engine-end connector is typically a different style and attaches directly to the outboard motor. Ensure you are replacing the correct part.
There's a conflict in hose size (3/8" vs. 5/16"). Which is it?
While some aftermarket sources list this part for a 3/8" hose, the most common and widely confirmed size for this OEM-equivalent connector is 5/16" (8mm). This part is designed for a 5/16" fuel hose.
What are the signs of a failing fuel line connector?
Common symptoms include fuel leaks at the connection point, a strong smell of gasoline around the tank, difficulty starting the engine, or the engine stalling. A loose or cracked connector should be replaced immediately.
How often should these connectors be replaced?
There is no fixed replacement interval, but fuel line components should be inspected annually for signs of cracking, brittleness, or leaks. Replace them as needed to prevent fuel system failures.
This is an aftermarket part. Is it as good as OEM?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
What are the shipping speed and cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
What is the warranty and return policy?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
