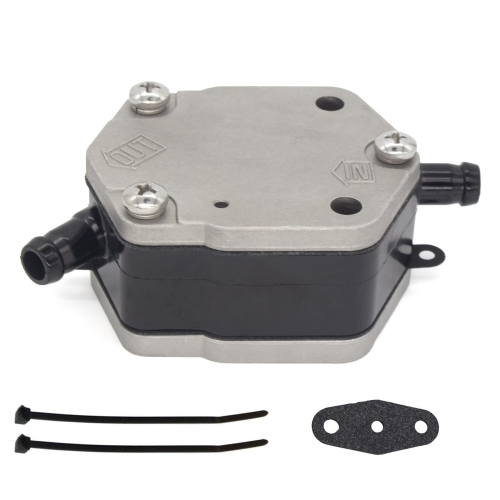

Fuel Pump Assembly – Fits Yamaha Outboard 115-300 HP 2-Stroke (Replaces 6E5-24410-03-00, 6E5-24410-04-00)

Product Details

This is a complete Fuel Pump Assembly – Fits Yamaha Outboard 115-300 HP 2-Stroke engines. It is designed for a wide range of Yamaha 2-Stroke models, including 115HP, 130HP, 140HP, 150HP, 175HP, 200HP, 225HP, 250HP, and 300HP outboard engines manufactured between 1984 and 2004.

This assembly is a direct replacement for multiple OEM and aftermarket part numbers, including Yamaha 6E5-24410 series, Sierra 18-7349, and Mercury 8M6010284, ensuring broad interchangeability.

• Installs as a direct OEM replacement with no modifications needed.
• Mechanically operated pump designed for reliable gasoline fuel delivery.
• Includes all necessary gaskets and diaphragms for a complete overhaul.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This pump is designed for a wide variety of Yamaha 2-stroke outboard models. Please check your specific model and year against the list to ensure fitment.

Technical Specs

Product Type

Mechanical Fuel Pump Assembly

Installation

Direct OEM replacement

Fuel Type

Gasoline

Connection

Barb fitting

Housing Material

Plastic/Aluminum alloy

Housing Color

Black

Fitting Type

Hose Barb

Operation Mode

Mechanical

Warranty

1 Year (aftermarket)

What’s in the Box

• 1 x Fuel Pump Assembly (6E5-24410-03-00)
• 1 x Body Gasket (6E5-24434-02-00)
• 1 x Body Gasket (6E5-24435-00-00)
• 1 x Diaphragm (6E5-24471-00-00)
• 1 x Diaphragm Spring (6E5-24423-00-00)
• 1 x Check Valve (6A0-24421-01-00)
• 1 x Spring Seat (648-24424-00-00)
• 1 x Body (6E5-24413-00-00)
• 1 x Body (6E5-24412-02-00)
• 1 x Diaphragm (6E5-24411-00-00)
• 1 x Plate Washer (92990-05600-00)
• 1 x Nut (95380-03600-00)
• 1 x Pan Head Screw (6A0-14325-00-00)
• 1 x Pan Head Screw (98580-05035-00)

Installation Notes

1. Safety First: Before starting, disconnect the battery and ensure the engine is cool. Work in a well-ventilated area and have a fire extinguisher nearby.
2. Locate and Disconnect: Find the old fuel pump on the engine block. Place a rag underneath to catch any spilled fuel. Carefully disconnect the fuel lines and hose clamps.
3. Remove the Old Pump: Unbolt the existing fuel pump from the engine. Note the orientation of the fittings and mounting bolts.
4. Clean the Surface: Clean the mounting surface on the engine, removing any old gasket material or sealant to ensure a proper seal.
5. Install the New Pump: Position the new gasket and fuel pump. Hand-tighten the mounting bolts, then torque them to the manufacturer's specifications.
6. Reconnect Lines: Attach the fuel inlet and outlet lines to the new pump, securing them with the original clamps. Ensure they are snug and leak-free.
7. Test the System: Reconnect the battery. Prime the fuel system if necessary. Start the engine and carefully check for any fuel leaks around the pump and fittings. Let the engine run for a few minutes to confirm proper operation.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
