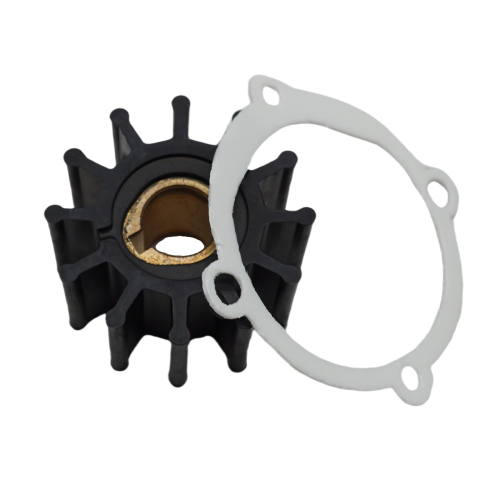

Impeller Kit with 4-Hole Gasket – Fits Volvo Penta Marine Engines (Replaces 875575, 855901)

Product Details

This Impeller Kit with 4-Hole Gasket is designed for the raw water cooling pumps on a wide range of Volvo Penta marine engines. It covers various models manufactured from the 1970s through the 1990s, including the AQ115–AQ171 series, 230A–251A, BB115–BB170 series, and MB20/MD21 models.

It serves as a direct replacement for Volvo Penta part numbers 875575, 21951350, and 831182, as well as Sierra 18-3075.

• Installation: Fits marine engine raw water cooling pumps.
• Material: Durable neoprene impeller with a brass insert for longevity.
• Kit Includes: One impeller and one 4-hole gasket for a complete service.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

Fits a wide range of Volvo Penta gas and diesel engines. Also compatible with specific Johnson Pump models.

Technical Specs

Product Type

Water Pump Impeller Kit

Installation

Marine Engine Raw Water Cooling Pump

Dimensions

Impeller Diameter: 57mm (2-1/4"), Width: 31.5mm (1-1/4"), Shaft: 16mm (5/8")

Weight

100g (0.22 lbs)

Fitting Type

Key Drive (3/16")

Impeller Blades

12

Impeller Profile

K Silhouette

Impeller Material

Neoprene

Insert Material

Brass

Warranty

30-day return policy (standard Amazon/retailer terms)

What’s in the Box

• 1 x Impeller (Replaces 875575, 21951350, 831182)
• 1 x 4-Hole Gasket (Replaces 855901)

Installation Notes

1. Close the water inlet valve (seacock) before starting.
2. Locate the raw water pump on your engine. You may need to remove a belt guard for access.
3. Loosen the screws on the pump cover and remove it. Note the orientation of the old impeller blades.
4. Remove the old impeller. Use pliers or impeller pullers if it's stuck, being careful not to damage the pump housing.
5. Clean the old gasket material from the pump cover and housing surfaces.
6. Lubricate the inside of the pump housing and the new impeller with a water-based lubricant or glycerine. Do not use petroleum grease.
7. Install the new impeller, bending the blades in the same direction as the old one.
8. Place the new gasket on the pump housing.
9. Reinstall the pump cover and tighten the screws evenly. Do not overtighten.
10. Open the water inlet valve. Start the engine and immediately check for leaks and proper water flow.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
