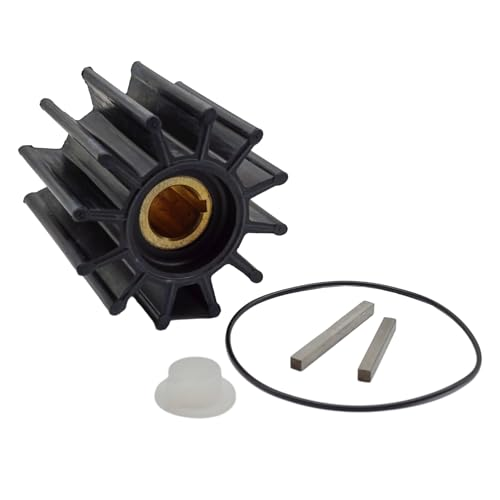

Marine Impeller Kit – Fits Sherwood, Jabsco, Johnson (Replaces 17000K-SHW, 18958-0001-P, 09-704BT-1)

Product Details

This high-performance Marine Impeller Kit is engineered for engine cooling water pumping applications in a variety of marine engines. It is designed to fit Caterpillar models 3116, 3126, and 3208; Cummins B Series (like the 6B 300Hp) and C Series; and John Deere 6076 series engines.

This kit serves as a direct replacement for a wide range of part numbers, including Sherwood 17000K-SHW, Jabsco 18958-0001-P, Johnson 09-704BT-1, Caterpillar 1W5664, and Cummins 3802444, among other equivalents.

• Constructed from durable, high-performance neoprene rubber to withstand the marine environment.
• Features a threaded end, allowing for easy removal with a standard impeller puller tool.
• Kit includes the impeller, O-ring, keys, and plug for a complete installation.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model or pump series in the tables below.

For Caterpillar engines, this impeller fits a range of models. Note that compatibility for C7 and C9 is based on aftermarket data.

This impeller is compatible with specific Cummins B Series, C Series, and 6CTA8.3M engines as detailed below.

Fits John Deere engines in the 6076 series using the specified OEM part number.

Widely compatible with numerous Sherwood P17 series water pumps.

Technical Specs

Product Type

Water Pump Impeller Kit

Material

Neoprene rubber

Dimensions

Overall Diameter: 84mm (3-5/16"), Width: 73mm (2-7/8")

Shaft Diameter

20mm (0.787")

Drive Type

3/16" Key drive

Impeller Blades

12

Keyway

Single keyway with one threaded end for puller

Weight

0.47 kg (1.04 lb)

Applications

Engine cooling water pumping

What’s in the Box

• 1 x Impeller
• 1 x O-ring
• 2 x Keys
• 1 x Plug

Installation Notes

1. Ensure the engine is off and cool. Close the water intake seacock to prevent water from entering the vessel.
2. Access the sea water pump and remove the screws holding the end cover plate.
3. Use an appropriate impeller puller tool or needle-nose pliers to carefully remove the old impeller from the pump housing.
4. Clean the inside of the pump housing and the cover plate, removing any old gasket material or debris. Inspect for scoring or damage.
5. Lightly lubricate the new impeller and the inside of the housing with a water-based lubricant or glycerin. Do not use petroleum-based grease.
6. Install the new impeller with a gentle twisting motion, ensuring the blades are bent in the correct direction of the pump's rotation.
7. Fit the new O-ring or gasket onto the pump housing or cover plate, ensuring it is seated correctly.
8. Securely refasten the cover plate, tightening the screws in a star pattern to ensure even pressure. Do not over-tighten.
9. Re-open the seacock, start the engine, and immediately check for proper water flow from the exhaust and for any leaks around the pump cover.

Troubleshooting & FAQ

Safety & Important Info

• Verify images and specifications against your original part before purchase. If anything differs—even if your model appears compatible—do not order.
• This is an aftermarket replacement component, not an OEM part. Brand names and part numbers are used for reference purposes only.
• Professional installation is recommended for safety and optimal performance. Improper installation can lead to engine damage.
