Recessed Trolling Motor Foot Pedal Tray – Fits Minn Kota (Replaces ...
Recessed Trolling Motor Foot Pedal Tray – Fits Minn Kota (Replaces UanofCn 100RTMP, JLM Marine 100RTMP, R&R Design 100RTMP) is backordered and will ship as soon as it is back in stock.
Product Details

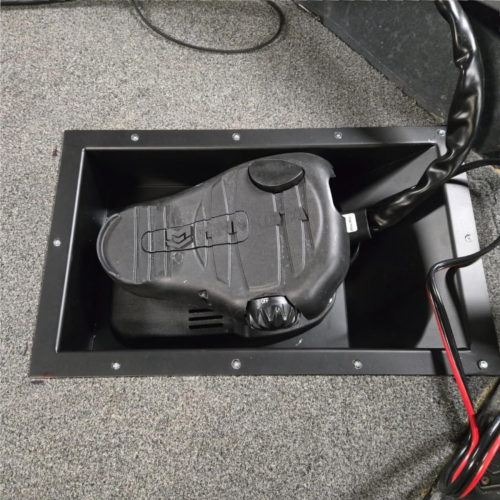

This universal Recessed Trolling Motor Foot Pedal Tray provides a clean, ergonomic, and flush-mounted installation for Minn Kota and other major brands of corded foot pedals. Made from high-strength, powder-coated aluminum, it secures the foot pedal on your boat's deck, protecting it from damage while creating a more comfortable setup.
It serves as a direct replacement for several aftermarket interchange part numbers, including UanofCn 100RTMP, JLM Marine 100RTMP, and R&R Design 100RTMP.
- Installs recessed/flush within your boat's deck for a clean, factory look.
- Constructed from powder-coated aluminum for superior rust protection and light weight.
- Features a built-in drainage hole in the bottom of the pan to prevent water accumulation.
Part Number Matrix
Use this matrix to confirm equivalent references across aftermarket brands.
| Brand | Part Number |
|---|---|
| UanofCn | 100RTMP |
| JLM Marine | 100RTMP |
| R&R Design | 100RTMP |
Engine & Model Compatibility
Confirm your trolling motor model in the table below.
This tray is designed for a wide range of Minn Kota corded foot pedals, primarily those manufactured in 2007 and after. Always verify your pedal's dimensions for a proper fit.
| Brand | Model | Notes |
|---|---|---|
| Minn Kota | PowerDrive, PowerDrive V2, Riptide PowerDrive, Riptide SP | Fits most corded foot pedal models manufactured in 2007 and after |
| Minn Kota | Legacy PowerDrive, Riptide SP | Will accommodate various corded foot pedal models |
| Minn Kota | Terrova, Riptide Terrova, Ulterra, Riptide Ulterra | Universal design will accommodate most corded foot pedal types |
Technical Specs
- Product Type
- Recessed Trolling Motor Foot Pedal Tray
- Installation
- Recessed/Flush Mount in Boat Deck
- Material
- Powder Coated Aluminum
- Coating
- Black UV Resistant Paint
- Advantages
- Rust Protection and Light Weight
- Compatibility
- Universal - Fits Most Brands of Trolling Motor Foot Controls
- Dimensions (Inside)
- 9-3/4" W × 17" L × 4" D (247.7 mm × 431.8 mm × 101.6 mm)
- Dimensions (Outside)
- 12" W × 19-1/2" L (304.8 mm × 495.3 mm)
- Required Cutout Size
- 10-1/2" W × 17-3/4" L (266.7 mm × 450.9 mm)
- Weight
- 2.1 Kilograms (4.63 lbs)
- Features
- Drainage Hole in Bottom of Pan
- Installation Hardware
- Predrilled Countersunk Mounting Holes
What’s in the Box
- 1 x Recessed Trolling Motor Tray (100RTMP)
Installation Notes
Installation requires cutting a hole in the boat deck and is best performed by a qualified marine technician. Note: Installation hardware (screws), a mounting template, and drain tube are NOT included.
- Disconnect all power to the trolling motor system.
- Position the tray on the deck and trace the required cutout outline (10-1/2" W × 17-3/4" L).
- Carefully cut the opening using a jigsaw or router. Always measure twice, cut once.
- Place the tray into the opening and mark the predrilled mounting hole locations. Remove the tray and drill pilot holes.
- Apply a generous bead of marine-grade sealant around the underside of the tray's lip to create a waterproof seal.
- Set the tray in place, align the holes, and secure it firmly with appropriate screws (not included).
- Install the foot pedal, route all wiring, and connect a drain tube (not included) to the bottom fitting.
- Reconnect power and test the foot pedal's operation.
Troubleshooting & FAQ
Will this tray fit my specific trolling motor pedal?
This is a universal tray designed for most corded foot pedals, especially Minn Kota models from 2007 and later. The most important step is to compare your pedal's dimensions against the tray's inside dimensions: 9-3/4" W × 17" L × 4" D. If your pedal fits within these measurements, it is compatible.
Is a cutting template included?
No, a physical template is not included. You must measure and mark the required cutout size of 10-1/2" W × 17-3/4" L on your boat's deck before cutting.
What do I use to seal the tray to the deck?
We recommend using a high-quality marine-grade silicone or polyurethane sealant to create a durable, waterproof bond between the tray flange and the boat deck.
Does this tray come with a drain hose?
No. The tray includes a pre-drilled drain hole in the bottom, but the drain tube/hose and any associated fittings must be purchased separately.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
