Sherwood 10615K Impeller Kit – Fits Volvo Penta, Crusader, Onan (Replaces 835874, 18948-0001)

Product Details

This Sherwood 10615K Impeller Kit is an aftermarket component designed for raw water cooling applications on a variety of inboard marine engines, including models from Volvo Penta, Crusader, Pleasurecraft Marine, Onan, and others. It serves as a crucial part of the engine's cooling system, ensuring reliable performance.

It is a direct replacement for multiple OEM and aftermarket part numbers, including Sherwood 10615/10615K-SHW, Volvo Penta 835874, Jabsco 18948-0001, Johnson 09-702B-1, Cummins 3908220, and others.

• Installation Method: Keyed Drive (5/8" shaft)
• Impeller Material: Durable Neoprene with 12 blades

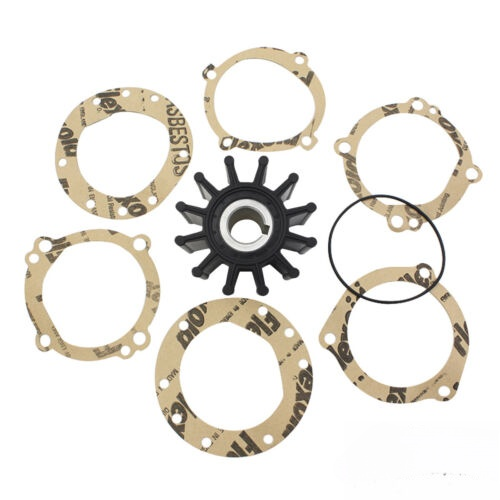

• Kit Contents: Includes impeller, o-ring, and gaskets for a complete service

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This impeller is used on various Volvo Penta models equipped with 5.7L & 8.1L V8 GM engines.

For Crusader applications, this part fits multiple models including the 220, 270, 300, and 350.

Also compatible with a range of Pleasurecraft Marine engines, including Chevy 454, 350 GM, and both 5.7L/8.1L V8 GM powerplants.

Technical Specs

Product Type

Raw Water Cooling Pump Impeller Kit

Installation

Keyed Drive

Connection

5/8" (15.9mm) Keyed Shaft

Housing Material

Neoprene (Impeller)

Housing Color

Black

Dimensions

Width: 41mm (1-5/8"), Diameter: 65mm (2-9/16")

Weight

0.17kg (0.37lb)

Fitting Type

Through Key

Thread Size

Keyway: 4.8mm (3/16")

Warranty

1 Year (from some retailers)

Other Technical Attributes

12 Impeller Blades/Vanes

What’s in the Box

• 1 x Impeller (Sherwood 10615)
• 1 x O-Ring (Sherwood 12231)
• 1 x Set of Gaskets
• 1 x Technical Guide (some packages)
• 1 x Keyway (varies by vendor)
• 4 x Stainless Steel Hex Bolts (varies by vendor)
• 4 x Stainless Steel Spring Lock Washers (varies by vendor)
• 1 x Tube of Impeller Lube (varies by vendor)

Installation Notes

1. Close the raw water seacock to prevent water from entering the boat.
2. Access the raw water pump housing. You may need to loosen belts or remove other components.
3. Remove the screws on the pump cover plate to expose the old impeller.
4. Use impeller pullers or two screwdrivers to carefully pry out the old impeller.
5. Clean the pump housing interior, inspecting for scoring or debris. Remove any leftover pieces of the old impeller.
6. Lightly lubricate the new impeller and housing interior with the supplied lube or a suitable marine-grade grease.
7. Insert the new impeller, rotating the shaft in the direction of engine operation to bend the vanes correctly.
8. Install the new gasket or o-ring on the cover plate.
9. Reinstall the cover plate and tighten the screws in a star pattern to ensure an even seal.
10. Re-open the seacock, start the engine, and immediately check the pump for any leaks.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
