Suzuki Outboard Trim Cylinder Head / End Cap – DF200, DF225, DF250,...
Suzuki Outboard Trim Cylinder Head / End Cap – DF200, DF225, DF250, DF300, DF325A & DF350A is backordered and will ship as soon as it is back in stock.
Product Details

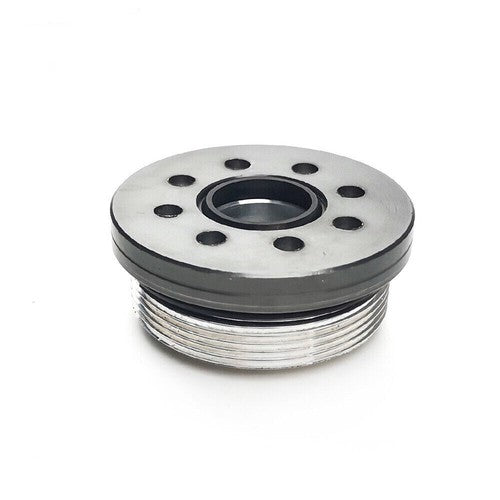

This Trim Cylinder Head / End Cap is a replacement component for the hydraulic tilt and trim cylinder on selected Suzuki 4-stroke outboard motors. It is listed for Suzuki DF200, DF225, DF250, DF250AP, DF300, DF300AP, DF300T/Z, DF300B, DF325A, and DF350A applications within the model, year, and configuration ranges shown below.
Use the original component and the applicable engine model information to confirm the correct fit before ordering. The listed Suzuki manufacturer part-number references are 48630-98L00, 48630-98L01, 48630-98L02, 48630-98J00, and 48630-98J01.
- Trim cylinder head and end-cap replacement component
- For selected Suzuki 4-stroke hydraulic tilt and trim systems
- Single replacement part; this listing is not a kit
- Confirm the engine model, year, configuration, and original part number before purchase
Manufacturer Part Number References
These Suzuki references are associated with this replacement trim-cylinder head/end-cap application. Number references are not interchangeable across every engine configuration, so verify the complete fitment details before ordering.
| Brand | Manufacturer Part Number | Component Description |
|---|---|---|
| Suzuki | 48630-98L00 | Trim cylinder head / end cap reference |
| Suzuki | 48630-98L01 | Trim cylinder head / end cap reference |
| Suzuki | 48630-98L02 | Trim cylinder head / rod-guide reference |
| Suzuki | 48630-98J00 | Trim cylinder head / end cap reference |
| Suzuki | 48630-98J01 | Trim cylinder head / end cap reference |
Engine & Model Compatibility
Compatibility is based on the Suzuki model and year ranges listed for this component. Model suffixes, trim-cylinder versions, and serial-number ranges can affect fitment; always compare the original part before installation.
| Brand | Model / Configuration | Rated HP | Stroke | Year or Application Range |
|---|---|---|---|---|
| Suzuki | DF200 | 200 | 4-Stroke | 2004 and newer |
| Suzuki | DF225 | 225 | 4-Stroke | 2004 and newer |
| Suzuki | DF250 | 250 | 4-Stroke | 2004 and newer |
| Suzuki | DF250AP | 250 | 4-Stroke | 2012–2018; configuration 25003P |
| Suzuki | DF300AP | 300 | 4-Stroke | 2012–2018; configuration 30002P |
| Suzuki | DF300T / DF300Z | 300 | 4-Stroke | 2007–2011 |
| Suzuki | DF300B | 300 | 4-Stroke | 2020 and newer |
| Suzuki | DF325A | 325 | 4-Stroke | 2018 and newer |
| Suzuki | DF350A | 350 | 4-Stroke | 2018 and newer |
Technical Specs
- Part Type
- Trim cylinder head / end cap
- Application
- Hydraulic tilt and trim cylinder
- Brand Application
- Suzuki Outboard
- Engine Coverage
- Selected DF200 through DF350A 4-stroke applications
- Manufacturer References
- 48630-98L00, 48630-98L01, 48630-98L02, 48630-98J00, 48630-98J01
- Package Type
- Single replacement component
What's in the Box
- 1 × Trim Cylinder Head / End Cap
Installation Notes
- Disconnect the battery and secure the outboard before beginning work.
- Support the engine in a stable position and relieve hydraulic pressure according to the service-manual procedure.
- Remove the existing trim-cylinder head or end cap using the correct tools and procedure for the engine configuration.
- Inspect the trim rod, seals, threads, retaining hardware, and cylinder surfaces for wear, corrosion, or damage.
- Clean the mating surfaces and compare the replacement part with the original component before installation.
- Install the replacement head/end cap and any required seals or retaining hardware according to the engine manufacturer's service instructions.
- Restore hydraulic fluid and bleed the system if hydraulic lines or the cylinder were opened.
- Reconnect the battery and test the full tilt and trim range while checking carefully for leaks or binding.
Troubleshooting & FAQ
What is this part?
This is a trim-cylinder head/end cap used in the hydraulic tilt and trim system of selected Suzuki DF-series outboards. It is supplied as one replacement component.
Which Suzuki engines are listed for this component?
The listed applications include DF200, DF225, and DF250 models from 2004 and newer; DF250AP and DF300AP models from 2012–2018; DF300T/Z models from 2007–2011; DF300B models from 2020 and newer; and DF325A and DF350A models from 2018 and newer. Verify the exact configuration and original part number before ordering.
Are all DF200, DF225, DF250, and DF300 models interchangeable?
No. The model family alone does not confirm fitment. Year, configuration, trim-cylinder design, and the original manufacturer part number must be checked together.
What manufacturer numbers should I compare?
Compare your original component with Suzuki references 48630-98L00, 48630-98L01, 48630-98L02, 48630-98J00, or 48630-98J01, together with the engine model and year information.
Will installation require hydraulic-system service?
Depending on the cylinder design and access procedure, installation may require relieving hydraulic pressure, replacing seals, refilling fluid, or bleeding air from the system. Follow the service manual for the specific engine configuration.
What should I inspect before installation?
Inspect the trim rod, cylinder bore, threads, seals, retaining hardware, and adjacent hydraulic components. Do not install the part if the rod or cylinder is damaged or excessively corroded.
Safety & Important Information
- Verify the original component, manufacturer part number, engine model, year, and configuration before purchase.
- Do not rely on horsepower or model-family information alone to confirm fitment.
- Hydraulic tilt and trim systems can contain stored pressure. Secure the outboard and follow the manufacturer's safety procedures.
- Professional installation is recommended when hydraulic-system disassembly or bleeding is required.
About Sea Sierra
- We supply replacement marine components for selected outboard and sterndrive applications.
- Product compatibility is organized by manufacturer part number, engine model, year, and configuration.
- For the best fit, compare the original part and complete engine identification information before ordering.
