Universal Sprayless Fuel Connector Female Fitting – 1/4" NPT, Replaces 8838HF6

Product Details

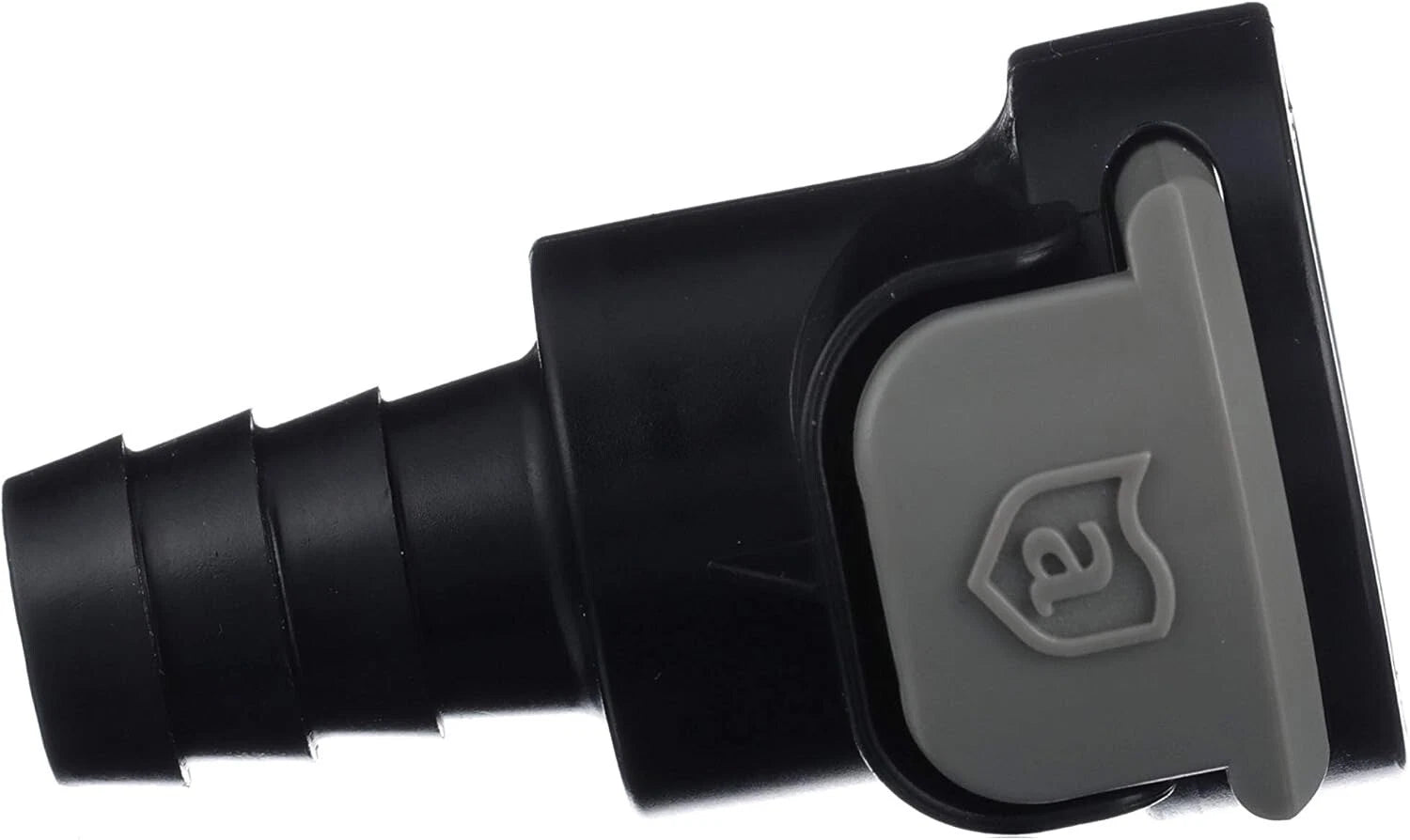

The Universal Sprayless Fuel Connector Female Fitting is a marine fuel-system connector designed for applications using a 1/4" NPT female fitting. Its sprayless connector design helps reduce fuel discharge when the fuel connection is disconnected. The fitting is listed for use with 5/16" and 3/8" marine fuel lines.

This aftermarket replacement is associated with OEM reference number 8838HF6. Confirm the fitting style, thread specification, fuel-line size, and original connector before installation.

• Female 1/4" NPT fitting
• Listed for 5/16" and 3/8" marine fuel lines
• Sprayless connector design for cleaner disconnection
• Single replacement connector

Part Number Matrix

Use the following reference to compare the replacement with the original connector.

Engine & Model Compatibility

This is a general marine fuel-system connector rather than an engine-specific part. Compatibility depends on the connector arrangement, 1/4" NPT thread, and fuel-line size on the application. Verify the original part before ordering.

Technical Specs

Product Type

Sprayless fuel connector female fitting

Fitting Type

Female 1/4" NPT

Fuel Line Compatibility

5/16" and 3/8" marine fuel lines

Connector Function

Designed to help reduce fuel discharge during disconnection

Application

Marine fuel-system connector replacement

OEM Reference

8838HF6

Product Configuration

Single connector; not a multi-part kit

What's in the Box

• 1 × Sprayless fuel connector female fitting

Installation Notes

1. Work in a well-ventilated area with the engine stopped and all ignition sources eliminated.
2. Relieve fuel-system pressure and prevent fuel from entering the bilge or surrounding work area.
3. Compare the replacement connector with the original part, including thread type, fitting orientation, and fuel-line size.
4. Remove the existing connector or fitting according to the manufacturer's service procedure.
5. Inspect the fuel hose, clamps, threads, and sealing surfaces for damage or deterioration.
6. Install the female 1/4" NPT fitting using a fuel-system-compatible sealing method appropriate for the application. Do not over-tighten.
7. Attach the compatible 5/16" or 3/8" fuel line securely and verify that the connection is properly retained.
8. Restore the fuel system gradually and inspect every connection for leakage before operating the engine.

Troubleshooting & FAQ

What fuel-line sizes are listed for this connector?

This connector is listed for use with 5/16" and 3/8" marine fuel lines. Measure the original hose and verify the connector arrangement before installation.

What does “sprayless” mean?

The connector is designed to help reduce fuel discharge when the fuel connection is disconnected. Follow safe fuel-handling procedures regardless of the connector design.

What thread specification does the fitting use?

The fitting is listed as a female 1/4" NPT connector. Confirm that the mating component uses the same thread specification before installation.

Is this an engine-specific part?

No specific engine model, year, horsepower, or serial-number range was established for this connector. Fitment should be confirmed by comparing the original connector, thread, and fuel-line size.

Does this replace reference number 8838HF6?

Yes. Reference number 8838HF6 is associated with this replacement connector. Use the original connector and application dimensions for final fitment confirmation.

What is included?

The package contains one female sprayless fuel connector fitting. Additional hoses, clamps, adapters, or sealing materials are not specified as included.

How do I check for a problem after installation?

Before starting the engine, inspect the fitting and hose connection for seepage or fuel odor. If any leakage is present, stop the installation and correct the connection before operating the vessel.

Safety & Important Information

• Fuel is flammable. Keep the work area ventilated and away from sparks, flames, hot surfaces, and other ignition sources.
• Verify the thread specification, connector style, and fuel-line diameter against the original part before purchase and installation.
• Do not operate the engine if fuel leakage, seepage, or a persistent fuel odor is present.
• This is an aftermarket replacement connector, not an OEM-branded component.
• Professional installation is recommended when the correct fuel-system connection cannot be positively identified.

Product Summary

This single female sprayless fuel connector is intended for marine fuel-system replacement applications using a 1/4" NPT fitting and 5/16" or 3/8" fuel line. Compare the original connector and the 8838HF6 reference before ordering.
