Water Pump Impeller – Fits Mercury/Mariner 2/2.5/3/3.3/4/5/6 HP (Re...
Water Pump Impeller – Fits Mercury/Mariner 2/2.5/3/3.3/4/5/6 HP (Replaces 47-16154, 47-161543) is backordered and will ship as soon as it is back in stock.
Product Details
The Sea Sierra Water Pump Impeller – Fits Mercury Marine 2/2.5/3/3.3/4/5/6 HP Outboards (Replaces 47-16154, 47-161543) is an essential replacement part for specific Mercury and Mariner outboard motors. It is designed for 2-Stroke 3.3 HP models (1993 & up), 2-Stroke 4/5 HP models (1987 & up), and 4-Stroke 4/5/6 HP models (1999 & up).
This impeller directly interchanges with Mercury 47-16154/47-161543, Sierra 18-3098, Mallory 9-45302/9-45302-10, and QuickMarine 161543.
- Installation: A direct replacement for a straightforward fit.
- Manufacturing: The Sierra version is quality-made in Italy.
- Warranty: Backed by Sierra's Limited Lifetime Warranty.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Mercury | 47-16154 / 47-161543 |
| Sierra | 18-3098 |
| Mallory | 9-45302 / 9-45302-10 |
| QuickMarine | 161543 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Mercury/Mariner owners, check your engine series, horsepower, and year range to ensure a match.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Mercury/Mariner | Shiftable | 3.3 | 2-Stroke | 1993 & Up | 47-161543/47-16154 | |
| Mercury/Mariner | Standard | 4/5 | 2-Stroke | 1987 & Up | 47-161543/47-16154 | |
| Mercury/Mariner | 4/5/6 | 4-Stroke | 1999 & Up | 47-161543/47-16154 |
Technical Specs
- Product Type
- Water Pump Impeller
- Installation
- Direct replacement
- Housing Color
- Black
- Weight
- 0.04 kg (0.09 lb)
- Warranty
- Limited Lifetime (Sierra)
- Country of Manufacture
- Italy (Sierra version)

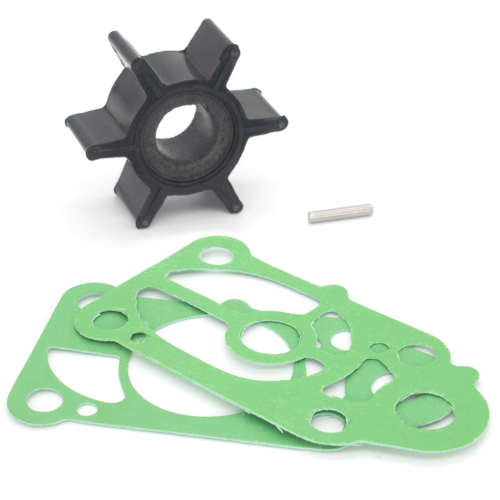

What’s in the Box
- 1 x Impeller (47-161543/47-16154)
- 1 x Gasket (included with QuickMarine kit)
- 1 x Key Pin (included with QuickMarine kit)
Installation Notes
- Disconnect the battery and drain the lower unit gear oil.
- Unbolt and remove the lower unit from the engine.
- Remove the bolts on the water pump housing to access the impeller.
- Slide the old impeller off the driveshaft, removing the drive key.
- Clean the housing, plate, and surrounding areas. Inspect for scoring or grooves.
- Lightly lubricate the new impeller and the inside of the housing with marine grease.
- Install the new key, slide the new impeller onto the driveshaft, and turn it clockwise to seat the vanes.
- Reinstall the water pump housing and torque the bolts to manufacturer specifications.
- Reattach the lower unit and refill with fresh gear oil.
- Reconnect the battery and test the engine in water, confirming a steady stream from the tell-tale outlet.
Troubleshooting & FAQ
How do I know if this impeller fits my outboard?
Check your engine's model, horsepower, and year against the "Engine & Model Compatibility" table. You can also verify by cross-referencing your existing impeller's part number with our "Part Number Matrix."
What are the signs of a failing water pump impeller?
Common symptoms include a weak or absent water stream from the "telltale" outlet, engine overheating alarms, and in severe cases, steam from the exhaust.
How often should I replace my impeller?
As a preventative measure, we recommend replacing your impeller every 1-2 years or every 100-200 hours of use, especially if you operate in saltwater or sandy/silty conditions.
Is this part difficult to install?
Installation can be done by a mechanically inclined owner with the right tools. It involves removing the lower unit. If you are not comfortable with this process, we recommend professional installation.
Is a gasket included?
Package contents can vary. The QuickMarine kit includes a gasket and key pin, but this is not guaranteed for all aftermarket or OEM versions. Review the "What’s in the Box" section for details specific to this listing.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
