Water Pump Impeller Kit – Fits Mercury Marine 30–70 HP Outboards (Replaces 46-60366A1, 46-32767A1)

Product Details

This Water Pump Impeller Kit for Mercury Marine 30–70 HP Outboards is a comprehensive service kit for maintaining the engine cooling system. It is intended for selected Mercury Marine outboard applications across multiple model years. Because Mercury fitment depends on engine design and serial number, always compare your engine’s exact serial range with the compatibility information below before ordering.

The kit is listed as an aftermarket replacement for Mercury part numbers 46-60366A1, 46-32767A1, 46-60366Q1, and 46-60366T1, with additional aftermarket reference numbers from Sierra, GLM, Mallory, and Heurofosh shown in the matrix below.

• Services the water pump assembly in the lower-unit area of the outboard.
• Uses a durable neoprene marine-rubber impeller for dependable cooling-water flow.
• Includes a nylon PA66 plastic upper water-pump housing.
• Designed for selected Mercury 30–70 HP applications; serial-number verification is required.

Part Number Matrix

Use these references to compare the listed OEM and aftermarket numbers. A reference number alone does not replace confirmation of the complete engine model, stroke, year, and serial-number conditions.

Engine & Model Compatibility

The following applications are listed for this replacement kit. Model descriptions, horsepower, cylinder configuration, and serial ranges must be considered together. Blank year or stroke fields indicate that the available application information is expressed by serial range rather than by a complete year or stroke designation.

Technical Specifications

Product Type

Water pump impeller kit

Installation Area

Lower-unit water-pump assembly

Fuel Type

Gasoline outboard applications

Housing Material

Nylon PA66 plastic water-pump housing

Impeller Material

Neoprene marine rubber

Weight

198.4 g (7 oz)

Maximum Listed Horsepower

70 HP

Warranty

1 year; see the applicable warranty terms for conditions and coverage.

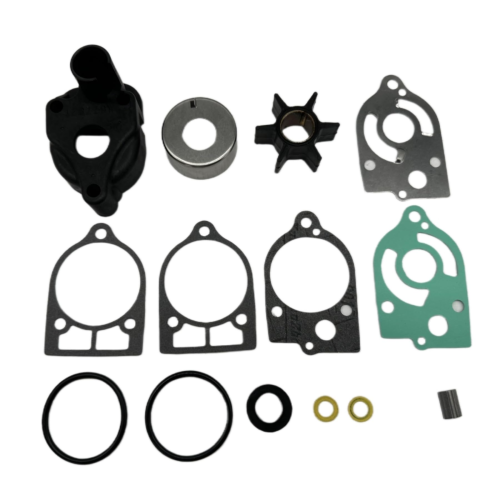

What’s in the Box

• 1 × Upper pump housing — 46-77822A1
• 1 × Impeller — 47-89983
• 2 × Drain gasket — 12-20260 / 12-19183
• 1 × Lower water-pump base-to-face-plate gasket — 27-32769 / 27-19553
• 1 × Upper face-plate-to-pump-body gasket — 27-32770
• 1 × Water-pump base gasket — 27-32771 / 27-19551
• 1 × Water-pump base gasket — 27-77417 / 27-19552
• 1 × Rubber washer — 12-49221-1
• 1 × Plate — 54705
• 1 × O-ring — 25-26855
• 1 × O-ring — 25-45711
• 1 × O-ring — 25-26722

Installation Notes

1. Disconnect the negative battery cable and follow the engine manufacturer’s safety procedures before starting work.
2. Remove the lower unit or gearcase from the outboard’s driveshaft housing. Disconnect the speedometer tube if required by the engine configuration.
3. Locate and unbolt the water-pump housing assembly. Keep track of bolt locations because bolt lengths may differ.
4. Remove the old housing and impeller from the driveshaft, then remove the old gaskets, wear plate, and applicable seals.
5. Clean all mating surfaces thoroughly. Remove old gasket material, debris, and corrosion without damaging the sealing surfaces.
6. Install the replacement gaskets, O-rings, plate, and other applicable components from the kit in the correct order for your engine.
7. Install the new impeller on the driveshaft. Rotate the shaft clockwise as needed to seat the impeller vanes in the housing.
8. Install the new pump housing and tighten the fasteners to the manufacturer’s specified torque.
9. Reinstall the lower unit, ensuring that the driveshaft, shift shaft, and water tube are correctly aligned.
10. Reconnect the battery. Start and test the engine only in an appropriate water supply or test tank, and confirm a steady tell-tale stream before normal operation.

Troubleshooting & FAQ

Safety & Important Information

• Verify the engine model, horsepower, cylinder configuration, serial number, and original component before ordering.
• Do not operate an outboard without an adequate cooling-water supply.
• This is an aftermarket replacement kit, not a Mercury OEM component.
• Professional installation is recommended, especially when removing and reinstalling the lower unit.
• If the supplied parts differ from the parts required by your engine’s service information, stop installation and confirm fitment before use.
