Water Pump Impeller Kit – Fits Mercury/Mariner 3.9-9.8 HP (Replaces Mercury 47-89980T1)
Water Pump Impeller Kit – Fits Mercury/Mariner 3.9-9.8 HP (Replaces Mercury 47-89980T1) is backordered and will ship as soon as it is back in stock.
Worry-free returns
Worry-free returns
Shop with confidence. If you’re not completely satisfied, eligible items may be returned within the return window, provided they are unused and in original packaging.
If the return is due to our error or a defective item, we’ll make it right.
Please contact us before returning any item.
Delivery and Shipping
Delivery and Shipping
Orders are typically processed within 1–2 business days.
U.S. orders usually arrive within 6–15 days, depending on stock location and destination.
International delivery times may vary due to customs processing.
Tracking information will be provided once your order ships.
Water Pump Impeller Kit – Fits Mercury/Mariner 3.9-9.8 HP (Replaces...
Water Pump Impeller Kit – Fits Mercury/Mariner 3.9-9.8 HP (Replaces Mercury 47-89980T1) is backordered and will ship as soon as it is back in stock.
Product Details
This Water Pump Impeller Kit – Fits Mercury/Mariner 3.9-9.8 HP (Replaces 47-89980T1) is designed for Mercury and Mariner 2-stroke outboard engines from 3.9 HP to 9.8 HP, manufactured between 1979 and 1986. It is specifically for models requiring an impeller with a 0.438" inner diameter.
This kit serves as a direct replacement for multiple OEM and aftermarket part numbers, including Mercury 47-89980T1, Sierra 18-3006, GLM 700-12271, SEI 96-260-03AK, and Mercury Quicksilver 47-89980Q1.
- Engineered for direct replacement of the original impeller and related seals.
- The impeller is made from durable neoprene rubber for reliable performance.
- Includes essential components for a complete water pump service.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Mercury | 47-89980T1 |
| Mercury Quicksilver | 47-89980Q1 |
| Sierra | 18-3006 |
| GLM | 700-12271 |
| SEI | 96-260-03AK |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Mercury/Mariner/Force models, it is crucial to verify your engine's serial number against the ranges provided to ensure an exact match.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Mercury/Mariner | 9.8 HP (Model 110) | 9.8 | 2-Stroke | 1979–1985 | 47-89980T1 | Made in USA: Serial Range 5206550 & Up |
| Mercury/Mariner | 7.5 HP | 7.5 | 2-Stroke | 1979–1986 | 47-89980T1 | Made in USA: Serial Range 5206550 & Up |
| Mercury/Mariner | 4.5 HP (1-Cyl.) | 4.5 | 2-Stroke | 1980–1985 | 47-89980T1 | Made in USA: Serial Range 5595532 & Up |
| Mercury/Mariner | 4 HP (1-Cyl.) | 4 | 2-Stroke | 1982–1986 | 47-89980T1 | Made in USA: Serial Range 5595532-0A809600 |
| Mercury/Mariner | 9.8 HP (Model 110) | 9.8 | 2-Stroke | 1979–1985 | 47-89980T1 | Made in AUS: Serial Range 8057545 & Up |
| Mercury/Mariner | 7.5 HP | 7.5 | 2-Stroke | 1979–1986 | 47-89980T1 | Made in AUS: Serial Range 8057545 & Up |
| Mercury/Mariner | 4.5 HP (1-Cyl.) | 4.5 | 2-Stroke | 1980–1985 | 47-89980T1 | Made in AUS: Serial Range 8068065 & Up |
| Mercury/Mariner | 4 HP (1-Cyl.) | 4 | 2-Stroke | 1982–1986 | 47-89980T1 | Made in AUS: Serial Range 8068065 & Up |
| Mercury/Mariner | 9.8 HP (Model 110) | 9.8 | 2-Stroke | 1979–1985 | 47-89980T1 | Made in BEL: Serial Range 9217756 & Up |
| Mercury/Mariner | 7.5 HP | 7.5 | 2-Stroke | 1979–1986 | 47-89980T1 | Made in BEL: Serial Range 9217756 & Up |
| Mercury/Mariner | 4.5 HP (1-Cyl.) | 4.5 | 2-Stroke | 1980–1985 | 47-89980T1 | Made in BEL: Serial Range 9258281 & Up |
| Mercury/Mariner | 4 HP (1-Cyl.) | 4 | 2-Stroke | 1982–1986 | 47-89980T1 | Made in BEL: Serial Range 9258281-9477829 |
| Mercury/Mariner | 9.8 HP (Model 110) | 9.8 | 2-Stroke | 1979–1985 | 47-89980T1 | Made in CAN: Serial Range 7125388 & Up |
| Mercury/Mariner | 7.5 HP | 7.5 | 2-Stroke | 1979–1986 | 47-89980T1 | Made in CAN: Serial Range 7125388 & Up |
| Mercury/Mariner | 4.5 HP (1-Cyl.) | 4.5 | 2-Stroke | 1980–1985 | 47-89980T1 | Made in CAN: Serial Range 7147238 & Up |
| Mercury/Mariner | 4 HP (1-Cyl.) | 4 | 2-Stroke | 1982–1986 | 47-89980T1 | Made in CAN: Serial Range 7143688 & Up |
Technical Specs
- Product Type
- Water Pump Impeller Kit
- Installation
- Direct replacement
- Impeller ID
- 0.438" (11.13 mm)
- Material
- Neoprene rubber (impeller)
- Compatibility
- Mercury/Mariner outboards with specified HP ranges
- Housing Color
- Black

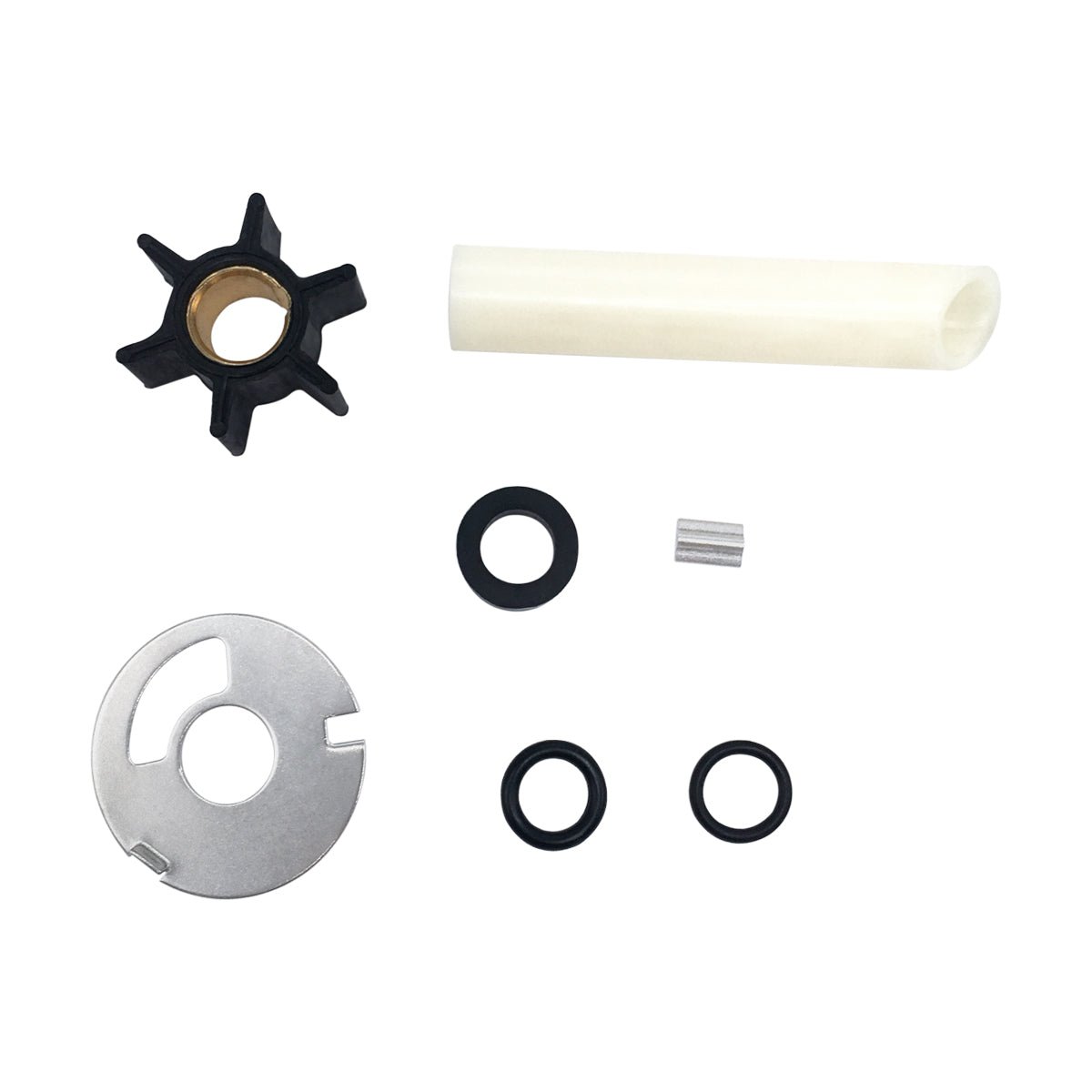

What’s in the Box
- 1 x Sleeve (700-12963)
- 1 x Impeller (700-89800)
- 1 x Wear Plate (700-12560)
- 1 x O-Ring (700-81230)
- 1 x O-Ring (700-81090)
- 1 x Seal (700-85651)
Installation Notes
- Disconnect the engine's battery and shift the outboard into neutral.
- Remove the lower unit (gearcase) by unbolting it from the engine leg.
- Unscrew the bolts holding the water pump housing and lift it off the driveshaft.
- Take note of the old components' orientation before removal. Remove the old impeller, wear plate, and seals.
- Thoroughly clean the inside of the housing and inspect it for cracks or warping.
- Install the new wear plate, gaskets, and O-rings as provided in the kit.
- Slide the new impeller onto the driveshaft, turning the shaft clockwise to bed the vanes correctly.
- Apply a thin layer of marine grease to the inside of the housing and reinstall it. Secure the bolts to the manufacturer's torque specifications.
- Reattach the lower unit to the engine.
- Once fully assembled, start the engine in a water-filled test tank or with a hose attachment to confirm water is pumping correctly from the tell-tale outlet.
Troubleshooting & FAQ
How do I confirm this impeller kit fits my specific engine?
Check your engine's model, horsepower (HP), and year against our compatibility chart. Most importantly, verify your engine's serial number falls within the specified ranges listed in the table, as this is the most accurate way to guarantee fitment. This kit is only compatible with models requiring a 0.438" impeller ID.
What are the signs of a failing water pump impeller?
Common symptoms include the engine overheating at idle or low speeds, a weak or non-existent water stream from the "tell-tale" indicator outlet, and a dry, cracked, or brittle appearance of the impeller vanes upon inspection.
How often should I replace my outboard's impeller?
For preventative maintenance, it is recommended to inspect the impeller annually and replace it every 1-2 years or every 100-200 hours of operation. Replacement frequency should be increased if you frequently operate in saltwater, silty, or sandy conditions.
Is the pump housing included with this kit?
No, this is an impeller service kit. It includes the impeller, wear plate, sleeve, O-rings, and seals needed to rebuild your existing water pump housing. The housing itself is not included.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
details>Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
