Product Details
This Water Pump Impeller Kit is an essential service part designed for a wide range of Mercury and Mariner outboards from the 1970s through the 1990s, covering 30 HP to 70 HP models with both 2-stroke and 4-stroke engines. It provides a reliable, direct replacement to restore your engine's cooling system performance.
Engineered to serve as a direct replacement, this kit interchanges with Mercury part numbers 47-89983T, 47-89983, 47-65959, and 47-20268, as well as aftermarket equivalents like Sierra 18-3007, Mallory 9-45300, and CEF 500312.
- Installs as a direct OEM-spec replacement.
- Features a durable 6-blade neoprene impeller with a corrosion-resistant metal alloy hub.
- Complete kit includes the impeller, key, and necessary gaskets for a full service.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Mercury | 47-89983T |
| Mercury | 47-89983 |
| Mercury | 47-65959 |
| Mercury | 47-20268 |
| Sierra | 18-3007 |
| Mallory | 9-45300 |
| CEF | 500312 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
Fitment for this impeller kit covers a broad range of Mercury and Mariner outboards. Please verify your engine's serial number against the specified ranges to ensure an exact match.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Mercury | 30 HP | 30 | 2-Stroke | 1984–1989 | 47-89983T | Serial Range: 1271884-1448139 |
| Mercury | 30 Jet | 30 | 2-Stroke | 1994–1997 | 47-89983T | Serial Range: C159200-G589999 |
| Mercury | 35 HP (2-Cyl.) | 35 | 2-Stroke | 1984–1986 | 47-89983T | Serial Range: 1217222-1448139 & 1571114-UP |
| Mercury | 35 HP (2-Cyl.) | 35 | 2-Stroke | 1984–1989 | 47-89983T | Serial Range: 6445653 & Up, BEL 9384476 & Up, CAN 7209608 & Up |
| Mercury | 40 HP (2-Cyl.) | 40 | 2-Stroke | 1970–1983 | 47-89983T | Serial Range: 1224481-1476509 & 2874704-6445653 |
| Mercury | 40 HP (4-Cyl.) | 40 | 2-Stroke | 1989 & Up | 47-89983T | Serial Range: C159200-UP |
| Mercury | 45 HP (4-Cyl.) | 45 | 2-Stroke | 1986 | 47-89983T | Serial Range: 1279685-1476509 & 5531630-UP |
| Mercury | 50 HP (4-Cyl.) | 50 | 2-Stroke | 1976–1985 | 47-89983T | Serial Range: 1421113-4962055 |
| Mercury | 50 HP (4-Cyl.) | 50 | 2-Stroke | 1985 & Up | 47-89983T | Serial Range: 4962056-UP |
| Mercury | 50 HP (3-Cyl.) | 50 | 2-Stroke | 1986–1987 | 47-89983T | Serial Range: 6428681-D000749 |
| Mercury | 60 HP (3-Cyl.) | 60 | 2-Stroke | 1984–1987 | 47-89983T | Serial Range: 6428681-D000749 |
| Mercury | 65 HP (3-Cyl.) | 65 | 2-Stroke | 1972–1976 | 47-89983T | Serial Range: 3293184-4571651 |
| Mercury | 70 HP (3-Cyl.) | 70 | 2-Stroke | 1977–1983 | 47-89983T | Serial Range: 4571652-B11005 |
| Mercury | 350 (35 HP) | 35 | 2-Stroke | 1966–1969 | 47-89983T | Serial Range: 1960827-2453068 |
Technical Specs
- Product Type
- Water Pump Impeller Kit
- Installation
- Direct OEM replacement
- Dimensions
- Height: 19.1 mm (0.75 inches); Overall Diameter: 51.8 mm (2.04 inches); Hub Shaft Diameter: 19.2 mm (0.76 inches)
- Weight
- 30 g (1.06 oz)
- Other Technical Attributes
- 6 blades; neoprene rubber with metal alloy hub insert

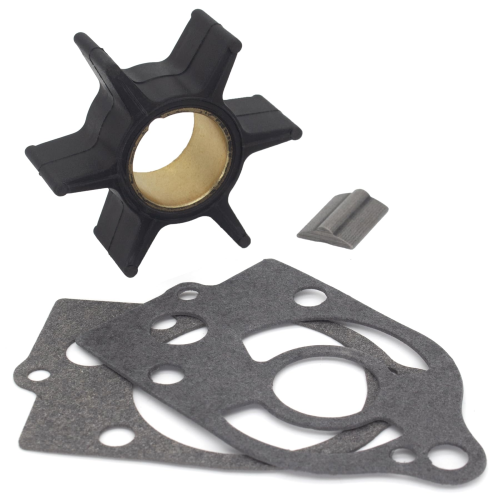

What’s in the Box
- 1 x Water Pump Impeller (47-89983T)
- 1 x Impeller Key (28-56662)
- 2 x Gasket (12-19183-3)
Installation Notes
- Disconnect the battery and shift the outboard into neutral.
- Place a drain pan under the lower unit and remove the gear oil drain/fill screws to empty the oil.
- Remove the bolts securing the lower unit (gearcase) to the upper housing. There may be a hidden bolt under the trim tab anode.
- Carefully lower and separate the lower unit from the engine.
- Unbolt and remove the old water pump housing to access the impeller.
- Remove the old impeller, key, and gaskets. Thoroughly clean all mating surfaces.
- Install the new lower gasket, impeller key, and then the new impeller. Rotate the driveshaft clockwise while pushing down to seat the blades correctly.
- Install the new upper gasket and re-install the water pump housing, tightening bolts to the manufacturer's torque specification.
- Re-install the lower unit, ensuring the driveshaft, shift shaft, and water tube align correctly.
- Refill the lower unit with fresh gear oil from the bottom up until it flows from the top vent hole. Re-install both screws.
- Reconnect the battery, start the engine using a water source (flushing muffs), and verify a strong water stream from the tell-tale outlet.
Troubleshooting & FAQ
How do I find my engine's serial number to confirm fitment?
Your engine's serial number is typically located on a tag on the transom bracket or on the engine block itself. Compare this number to the ranges listed in the compatibility table to ensure this kit is the correct fit for your outboard.
What are the signs of a failing water pump impeller?
Common symptoms include the engine overheating at idle or low speeds, a weak or non-existent water stream from the "tell-tale" cooling outlet, and in some cases, a high temperature alarm if your engine is equipped with one.
How often should I replace my impeller?
As a preventative maintenance item, it is recommended to replace the impeller every 1 to 2 years, or every 100-200 hours of operation. Frequency should be increased if you operate in sandy, silty, or saltwater conditions.
Why does the new impeller seem difficult to install in the housing?
New impellers are designed for a tight fit. To install, place the new key on the driveshaft, align the impeller, and rotate the driveshaft clockwise while gently pushing the impeller down into the housing. This will correctly bend the vanes in the direction of rotation.
Is this impeller suitable for both saltwater and freshwater use?
Yes. The impeller is made from durable neoprene rubber with a corrosion-resistant metal alloy hub, making it suitable for operation in both saltwater and freshwater environments.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
