Water Pump Impeller Kit – Fits Suzuki 2-Stroke 8-9.9HP (Replaces 17400-92D00, 17400-92D01)

$23.00

Shipping calculated at checkout.

Water Pump Impeller Kit – Fits Suzuki 2-Stroke 8-9.9HP (Replaces 17400-92D00, 17400-92D01) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This Water Pump Impeller Kit – Fits Suzuki DT8C/DT9.9C 8–9.9HP 2-Stroke (Replaces 17400-92D00, 17400-92D01) provides all necessary components to service the water pump on Suzuki 8 HP to 9.9 HP DT8C and DT9.9C 2-stroke outboard motors manufactured between 1988 and 1997. It ensures your engine receives proper cooling to prevent overheating.

This kit is a direct aftermarket replacement for Suzuki part numbers 17400-92D00, 17400-92D01, and 17400-92D11, as well as Sierra 18-3255, CEF 500319, and HJ SHJB-92D01.

Engineered for direct OEM-level fit and function.
Kit includes a new impeller, gaskets, plate, key, and other hardware for a complete overhaul.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number	Notes
Suzuki	17400-92D00	Superseded. Equivalent to this kit.
Suzuki	17400-92D01	Superseded. Equivalent to this kit.
Suzuki	17400-92D11	Current equivalent.
Sierra	18-3255	Aftermarket equivalent.
CEF	500319	Aftermarket equivalent.
HJ	SHJB-92D01	Aftermarket equivalent.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This kit is designed for the following Suzuki outboard models:

Brand	Model	Rated HP	Stroke	Years	OEM Part No.
Suzuki	DT8C	8 HP	2-Stroke	1988–1997	17400-92D00/17400-92D01
Suzuki	DT9.9C	9.9 HP	2-Stroke	1988–1997	17400-92D00/17400-92D01

Technical Specs

Product Type: Water Pump Impeller Service Kit
Installation: Direct OEM replacement
Impeller Overall Diameter: 42mm (1.65")
Impeller Shaft Diameter: 12.3mm (0.48")
Impeller Height: 20mm (0.79")

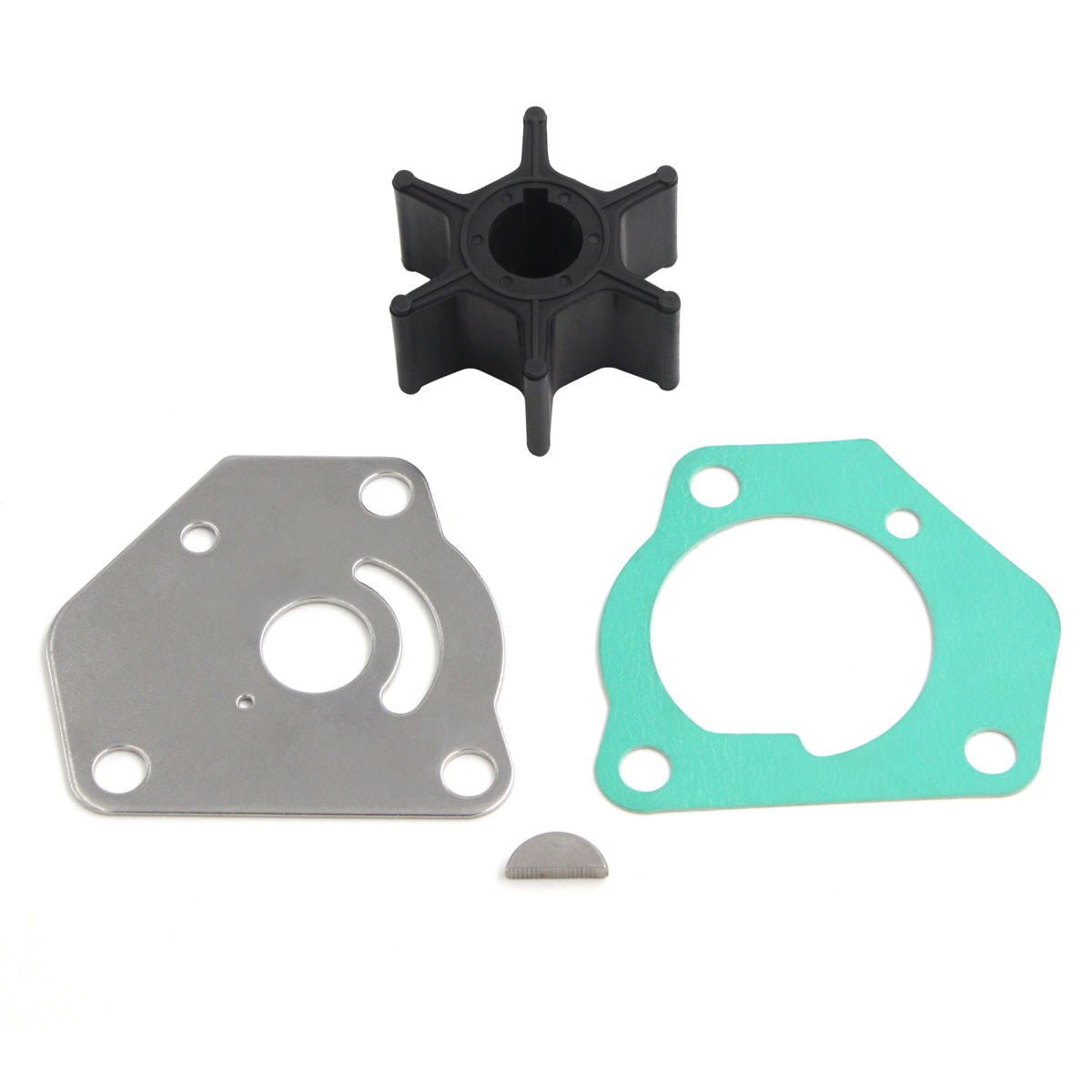

What’s in the Box

1 x Impeller (17461-92D02)
1 x Plate (17471-92D10)
1 x Gasket (17472-92D10)
1 x Key (09420-03005)
1 x Pin (09204-03003)
2 x Gasket (09168-10022) (10X17X1.5)
1 x Gasket (09168-12012) (12.5X20X2.5)
2 x O-Ring (09280-22019) (D:1.9, ID:21.8)

Installation Notes

Disconnect the spark plug leads and battery cables for safety.
Place a drain pan under the lower unit and remove the gearcase oil drain screw to empty the oil.
Remove the bolts securing the gearcase (lower unit) to the engine. Carefully lower it away from the drive shaft housing.
Unbolt and remove the water pump housing to expose the old impeller and gaskets.
Clean all mating surfaces thoroughly, removing any old gasket material or sealant residue.
Install the new lower gasket, wear plate, and Woodruff key on the driveshaft.
Slide the new impeller onto the driveshaft, turning the shaft clockwise to align the fins correctly.
Install the new upper gasket and bolt down the housing assembly to the specified torque.
Lightly grease the driveshaft splines and reinstall the gearcase, ensuring the water tube and shift shaft are aligned.
Refill the gearcase with fresh marine gear lube.
Reconnect the battery and spark plugs. Start the engine in water and verify a strong, steady stream from the tell-tale outlet.

Troubleshooting & FAQ

How do I know if this kit fits my engine?

This kit is specifically designed for Suzuki 8 HP DT8C and 9.9 HP DT9.9C 2-stroke models from 1988–1997. Please verify your exact model and year using the compatibility table provided on this page.

My original part number is 17400-92D00. Will this kit work?

Yes. This aftermarket kit is a direct replacement for Suzuki OEM part numbers 17400-92D00, 17400-92D01, and 17400-92D11.

What are the signs of a failing water pump impeller?

Common symptoms include a weak or non-existent water stream from the "tell-tale" outlet, engine overheating alarms, or visible damage like cracks, brittleness, or melted fins on the old impeller upon inspection.

How often should I replace my impeller?

As a preventative maintenance practice, we recommend inspecting the impeller annually and replacing it every 1-2 years or 100-200 hours of operation. More frequent replacement may be necessary in saltwater or silty conditions.

What is the small metal 'key' for?

The included Woodruff key (part no. 09420-03005) is critical. It locks the impeller onto the driveshaft, ensuring it spins with the shaft to pump water. Do not lose or forget to install it.

Is this kit difficult to install myself?

The process is manageable for individuals with good mechanical skills and the correct tools. However, due to the importance of proper assembly for engine cooling, professional installation is always recommended for safety and performance.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost?

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns?

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
