Water Pump Impeller Kit – Fits Suzuki 4-Stroke 8-20HP (Replaces 17400-99840, 17400-99841, 17400-99J20)
Water Pump Impeller Kit – Fits Suzuki 4-Stroke 8-20HP (Replaces 17400-99840, 17400-99841, 17400-99J20) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Water Pump Impeller Kit – Fits Suzuki 4-Stroke 8-20HP (Replaces 174...
Product Details
This Water Pump Impeller Kit provides a complete solution for servicing the cooling system on Suzuki 4-Stroke 8 HP to 20 HP outboard motors (models DF8A, DF9.9A, DF9.9B, DF15A, and DF20A) manufactured from 2010 to 2021. Regular impeller replacement is crucial for preventing engine overheating and ensuring reliable performance.
The kit is a direct aftermarket replacement for Suzuki OEM part numbers 17400-99840, 17400-99841, 17400-99J00, 17400-99J01, and 17400-99J20.
- Engineered for direct-fit installation.
- Made with corrosion-resistant materials for saltwater and freshwater use.
- Includes essential components for a standard water pump service.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By |
|---|---|---|
| Suzuki | 17400-99840 | 17400-99J20 |
| Suzuki | 17400-99841 | 17400-99J20 |
| Suzuki | 17400-99J00 | 17400-99J20 |
| Suzuki | 17400-99J01 | 17400-99J20 |
| Suzuki | 17400-99J20 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DF8A | 8 | 4-Stroke | 2010–2011 | 17400-99840/99841 | Superseded by 17400-99J20 |
| Suzuki | DF9.9A | 9.9 | 4-Stroke | 2010–2016 | 17400-99840/99841 | Superseded by 17400-99J20 |
| Suzuki | DF9.9B | 9.9 | 4-Stroke | 2014–2021 | 17400-99J20 | |
| Suzuki | DF15A | 15 | 4-Stroke | 2013–2021 | 17400-99J20 | |
| Suzuki | DF20A | 20 | 4-Stroke | 2013–2020 | 17400-99J20 |
Technical Specs
- Product Type
- Water Pump Impeller Kit
- Installation
- Direct Fit
- Other Technical Attributes
- Corrosion-resistant materials

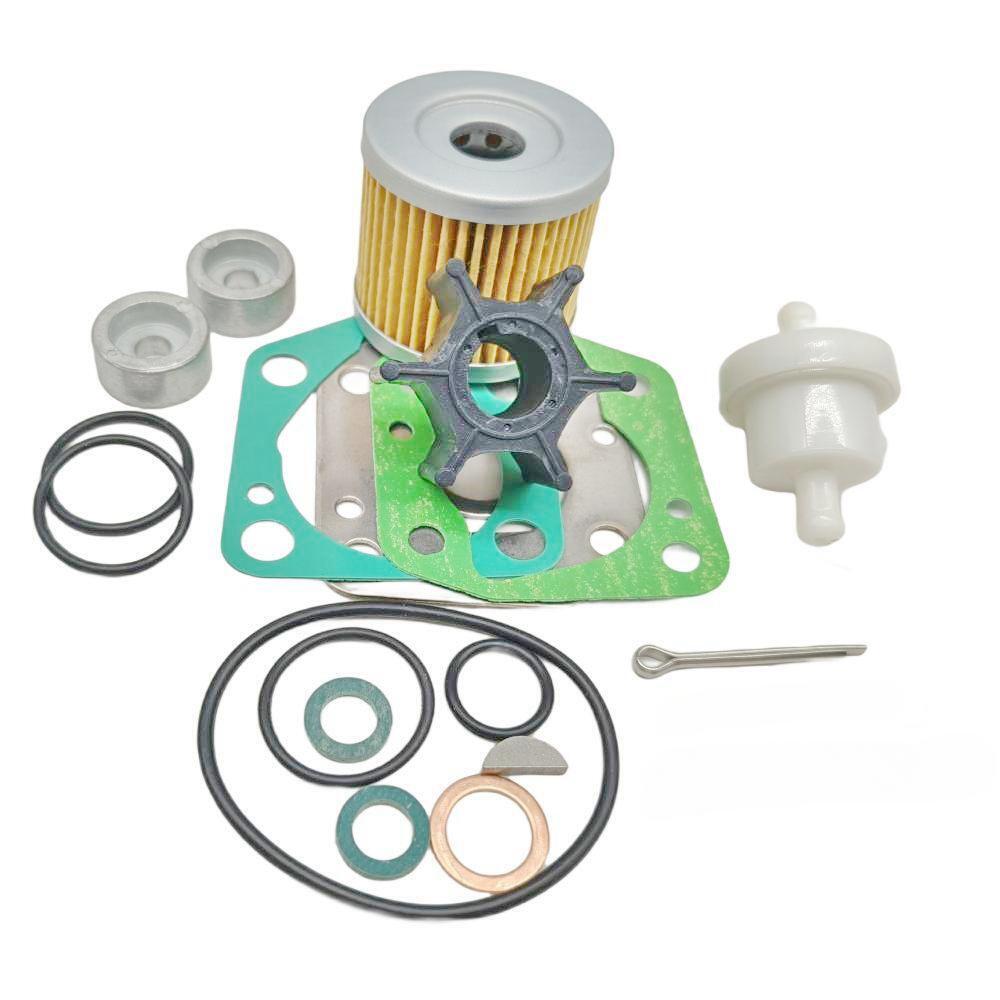

What’s in the Box
- 1 x Water Pump Repair Kit (Replaces 17400-99J20)
- 1 x Pump Case Sleeve (17413-94J00)
- 1 x Pump Plate Gasket (09168-12017)
- 1 x Key (09204-02004)
Installation Notes
- Always disconnect the battery and ensure the engine is off and in neutral before starting work.
- Remove the lower gearcase unit from the outboard motor.
- Unbolt and carefully remove the water pump housing cover.
- Observe the rotational direction of the old impeller's fins before removing it.
- Slide the old impeller off the driveshaft, and remove the drive key, gaskets, and wear plates.
- Thoroughly clean all mating surfaces, removing any old gasket material or debris.
- Install the new gasket, wear plate, drive key, and impeller. Bend the fins in the correct rotational direction.
- Lightly lubricate the inside of the pump housing and the new impeller with a marine-safe lubricant.
- Reinstall the water pump housing, ensuring a proper seal, and torque bolts to manufacturer specifications.
- Reattach the lower unit to the outboard motor.
- Reconnect the battery and test engine operation in a water-filled barrel or with a flush attachment to verify water flow.
Troubleshooting & FAQ
How do I know if my water pump impeller is failing?
Common signs of a worn or damaged impeller include the engine overheating, especially at low speeds, and a weak or inconsistent stream of water from the "tell-tale" outlet port. Visual inspection may reveal cracked, brittle, or missing vanes.
What is the recommended replacement interval for this kit?
For most recreational boats, it's best practice to inspect the impeller annually and replace it every 2-3 years or after 200-300 hours of use, whichever comes first. Refer to your Suzuki service manual for specific recommendations.
Will this fit a model not on the compatibility list?
No. This kit is specifically designed for the Suzuki DF8A, DF9.9A, DF9.9B, DF15A, and DF20A models listed. Attempting to install it on an incompatible engine may lead to improper cooling and severe engine damage.
Does this kit include O-rings?
This kit (equivalent to 17400-99J20) contains the primary components for a standard water pump service. Some engine service diagrams show additional O-rings (like 09280-13004, 09280-22019, or 09280-54001) that are not included here. Please consult your service manual to see if your specific repair requires a separate purchase of these O-rings.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
