Water Pump Impeller Repair Kit – Fits Honda 8–20 HP (Replaces 06192-ZW9-A30)
Water Pump Impeller Repair Kit – Fits Honda 8–20 HP (Replaces 06192-ZW9-A30) is backordered and will ship as soon as it is back in stock.
Worry-free returns
Worry-free returns
Shop with confidence. If you’re not completely satisfied, eligible items may be returned within the return window, provided they are unused and in original packaging.
If the return is due to our error or a defective item, we’ll make it right.
Please contact us before returning any item.
Delivery and Shipping
Delivery and Shipping
Orders are typically processed within 1–2 business days.
U.S. orders usually arrive within 6–15 days, depending on stock location and destination.
International delivery times may vary due to customs processing.
Tracking information will be provided once your order ships.
Water Pump Impeller Repair Kit – Fits Honda 8–20 HP (Replaces 06192...
Water Pump Impeller Repair Kit – Fits Honda 8–20 HP (Replaces 06192-ZW9-A30) is backordered and will ship as soon as it is back in stock.
Product Details
This Water Pump Impeller Repair Kit is designed for routine maintenance of the cooling system on Honda 8 HP, 9.9 HP, 15 HP, and 20 HP 4-stroke outboard motors. It provides a reliable solution for models in the BF8D, BF9.9D, BF15D, and BF20D series, ensuring your engine maintains optimal operating temperature.
It serves as a direct replacement for Honda part numbers 06192-ZW9-000, 06192-ZW9-010, 06192-ZW9-A30, and 06192-ZW9-A31, as well as aftermarket equivalents like Sierra 18-3493.
- Engineered for direct-fit installation, simplifying replacement.
- Kit includes the essential neoprene impeller, O-ring, gasket, and impeller key.
- Requires lubrication during installation to prevent damage (lubricant not included).
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.
| Brand | Part Number | Notes |
|---|---|---|
| Honda | 06192-ZW9-A30 | Current primary OEM part number. |
| Honda | 06192-ZW9-000 | Superseded by 06192-ZW9-A30. |
| Honda | 06192-ZW9-010 | Superseded by 06192-ZW9-A30. |
| Honda | 06192-ZW9-A31 | Alternative OEM reference. |
| Sierra | 18-3493 | Aftermarket interchange. |
| WINGOGO | 06192-ZW9-A30 | Aftermarket interchange. |
| UANOFCN | 06192ZW9000 | Aftermarket interchange. |
Engine & Model Compatibility
Confirm your engine model in the table below.
This kit is designed for various 4-stroke Honda outboard motors rated from 8 to 20 horsepower.
| Brand | Model | Rated HP | Stroke | OEM Part No. | Notes |
|---|---|---|---|---|---|
| Honda | BF8D (25") | 8 | 4-Stroke | 06192-ZW9-A30 | Supersedes 06192-ZW9-000, 06192-ZW9-010 |
| Honda | BFP8D (25") | 8 | 4-Stroke | 06192-ZW9-A30 | Supersedes 06192-ZW9-000, 06192-ZW9-010 |
| Honda | BF9.9D (25") | 9.9 | 4-Stroke | 06192-ZW9-A30 | Supersedes 06192-ZW9-000, 06192-ZW9-010 |
| Honda | BFP9.9D (25") | 9.9 | 4-Stroke | 06192-ZW9-A30 | Supersedes 06192-ZW9-000, 06192-ZW9-010 |
| Honda | BF15D | 15 | 4-Stroke | 06192-ZW9-A30 | Supersedes 06192-ZW9-000, 06192-ZW9-010 |
| Honda | BFP15D | 15 | 4-Stroke | 06192-ZW9-A30 | Supersedes 06192-ZW9-000, 06192-ZW9-010 |
| Honda | BF20D | 20 | 4-Stroke | 06192-ZW9-A30 | Supersedes 06192-ZW9-000, 06192-ZW9-010 |
| Honda | BFP20D | 20 | 4-Stroke | 06192-ZW9-A30 | Supersedes 06192-ZW9-000, 06192-ZW9-010 |
Technical Specs
- Product Type
- Water Pump Impeller Repair Kit
- Installation
- Direct replacement
- Other Technical Attributes
- Not to be run dry; requires lubrication during installation

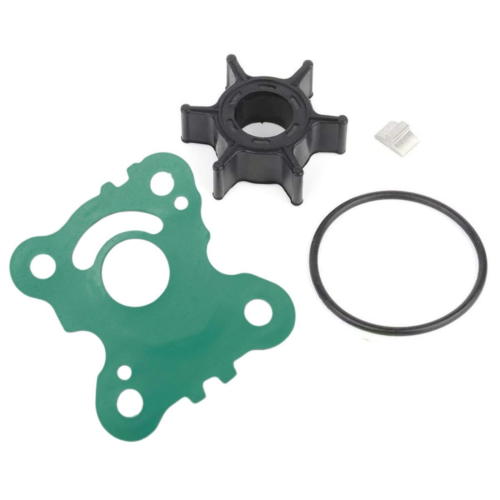

What’s in the Box
- 1 x Neoprene Impeller (19210-ZW9-A32)
- 1 x Impeller Key (90752-ZW9-A30)
- 1 x O-ring (91301-ZG3-000)
- 1 x Impeller Gasket (19232-ZW9-000)
Installation Notes
- Disconnect the battery and ensure the engine is off and in neutral.
- Remove the lower unit (gearcase) from the outboard motor.
- Unbolt and remove the water pump housing to access the old impeller.
- Remove the old impeller, gasket, o-ring, and key. Clean all mating surfaces thoroughly.
- Apply marine-grade silicone grease, glycerine, or dish soap to the new impeller and the inside of the pump housing.
- Install the new key and slide the new impeller onto the driveshaft, twisting it in the direction of normal engine rotation.
- Place the new gasket and O-ring in their correct positions.
- Reinstall the water pump housing and tighten the bolts to the manufacturer's recommended torque.
- Reattach the lower unit to the outboard.
- CRITICAL: Do not start the engine without a reliable water supply. Use a flusher or submerge the lower unit in water before starting to test.
Troubleshooting & FAQ
How do I know if this kit fits my Honda outboard?
This kit is designed for specific Honda 8, 9.9, 15, and 20 HP models. The best way to confirm fitment is to check your engine's model number (e.g., BF15D) against our compatibility table. You can also cross-reference your existing part number with those listed in the Part Number Matrix.
What are the signs of a failing water pump impeller?
Common signs include a weak or non-existent stream of water from the "tell-tale" outlet, engine overheating alarms, or a noticeable drop in engine performance. A worn or damaged impeller cannot move enough water to cool the engine effectively.
How often should I replace the water pump impeller?
As a preventative maintenance item, it is recommended to inspect the impeller annually and replace it every 1-2 years or every 100-200 hours of operation, depending on usage conditions (e.g., saltwater vs. freshwater).
Can I run the engine after installation to see if it works?
No. Never run the engine dry, even for a few seconds. A dry impeller will be immediately damaged by friction and heat. Always ensure the lower unit's water intake is fully submerged in water or connected to a hose with a flusher attachment before starting the engine.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
About Sea Sierra
- Pro-Grade Standards — We supply marine parts engineered to OEM-level tolerances and tested for real-world conditions.
- Fast Global Fulfillment — Free standard delivery to most regions in 5–15 days.
- Manufacturer-Direct Value — Fair pricing without compromising on materials or QC.
