Water Pump Repair Kit – Fits Suzuki DF9.9B/DF15A/DF20A (Replaces 17400-89812)

$52.80 $84.00

Shipping calculated at checkout.

Water Pump Repair Kit – Fits Suzuki DF9.9B/DF15A/DF20A (Replaces 17400-89812) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This Water Pump Repair Kit – Fits Suzuki DF9.9B/DF15A/DF20A Outboard Motors provides all essential components for servicing or rebuilding the water pump on select Suzuki four-stroke outboards. It is designed for DF9.9B, DF15A, and DF20A models from 2013 onwards, ensuring reliable cooling system performance.

The kit serves as a direct cross-reference for Suzuki OEM part numbers 17400-89810, 17400-89811, 17400-89812, and 17400-99J20, offering a complete solution for maintenance.

Engineered for direct OEM replacement installation.
Components are made of corrosion-resistant materials for durability in marine environments.
Includes all necessary impellers, gaskets, O-rings, and hardware for a full service.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket parts.

Brand	Part Number	Notes
Suzuki	17400-89810	Superseded by 17400-89812
Suzuki	17400-89811	Superseded by 17400-89812
Suzuki	17400-89812	Primary maintenance kit
Suzuki	17400-99J20	Alternative basic water pump kit

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This kit is confirmed to fit the following Suzuki outboard models.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Suzuki	DF9.9B	9.9	4-Stroke	2014–Present	17400-89812	Supercedes 17400-89810, 17400-89811
Suzuki	DF15A	15	4-Stroke	2013–Present	17400-89812	Supercedes 17400-89810, 17400-89811
Suzuki	DF20A	20	4-Stroke	2013–Present	17400-89812	Supercedes 17400-89810, 17400-89811
Suzuki	DF8A	8	4-Stroke	All Years	17400-99J20	Alternative compatible kit
Suzuki	DF9.9A	9.9	4-Stroke	All Years	17400-99J20	Alternative compatible kit

Technical Specs

Product Type: Water Pump Repair Kit
Installation: Direct OEM replacement
Connection: Direct fit to pump housing
Fitting Type: OEM specified
Other Technical Attributes: Made of corrosion resistant materials

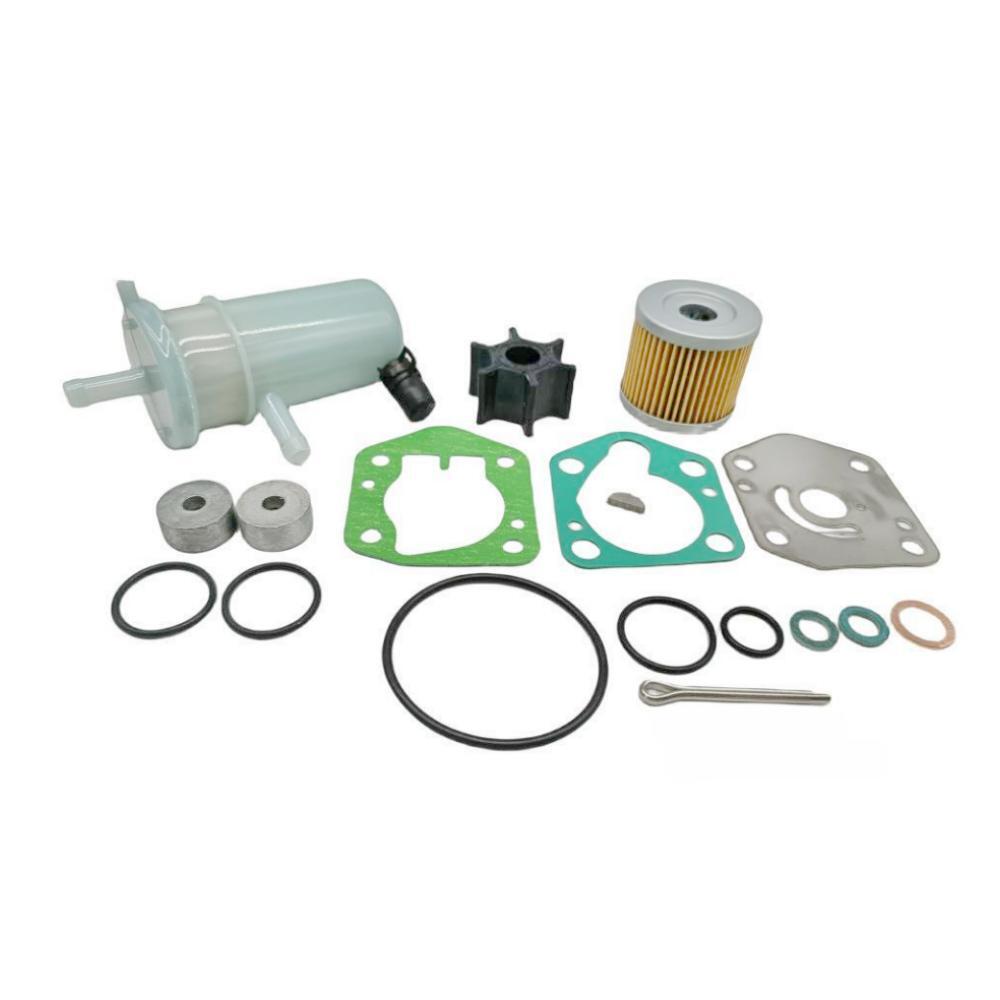

What’s in the Box

17400-89812 Maintenance Kit:

1 x Water Pump Repair Kit (17400-99J01)
1 x Gasket (12X17X1) (09168-12017)
1 x Pin (09204-02004)
1 x O Ring (D:1.9, ID:13) (09280-13004)
1 x O Ring (D:1.9, ID:21.8) (09280-22019)
1 x O Ring (D:2.4, ID:52.6) (09280-54001)
2 x Spark Plug (MR6K-9) (09482-00661)
1 x Fuel Filter (15410-87L00)
1 x Engine Oil Filter Assembly (16510-45H10)
1 x Water Pump Case Sleeve (17413-94J00)
2 x Protection Anode (55321-87J01)
2 x Drain Plug Gasket (59178-97J00)

Alternative 17400-99J20 Kit:

1 x Impeller
1 x Pump Plate
1 x Pump Case Sleeve
1 x Pump Plate Gasket
1 x Key

Installation Notes

Ensure the engine is off and disconnect the battery terminals for safety.
Remove the lower unit (gearcase) from the outboard motor. Refer to your service manual for specific instructions.
Unbolt and remove the existing water pump housing to access the old impeller and gaskets.
Carefully clean all mating surfaces, removing any old gasket material or corrosion.
Install the new gaskets, wear plate, and impeller. Ensure the impeller key is correctly seated.
Lightly lubricate the inside of the pump housing and the new impeller with a marine-grade grease.
Reassemble the water pump housing, ensuring bolts are tightened to the manufacturer's specified torque.
Reinstall the lower unit, reconnect the battery, and test the engine's cooling system at idle, confirming water flows from the tell-tale port.

Troubleshooting & FAQ

What are the signs of a failing water pump?

Common signs include a weak or non-existent water stream from the "tell-tale" outlet, engine overheating alarms, or a noticeable decrease in engine performance. A worn or damaged impeller is the most frequent cause.

How often should the water pump impeller be replaced?

For most outboards, it's recommended to inspect the impeller annually and replace it every 1-2 years or every 100-200 hours of use, whichever comes first. This interval can be shorter if you operate in sandy or silty water.

What is the difference between the 17400-89812 and 17400-99J20 kits?

The 17400-89812 is a comprehensive maintenance kit that includes the water pump repair components plus spark plugs, filters, anodes, and various gaskets for a full service. The 17400-99J20 is a basic water pump repair kit containing only the core components for the pump itself (impeller, plate, sleeve, gasket, key).

My engine still overheats after installation. What should I check?

Verify that the impeller was installed with the vanes rotating in the correct direction and that the woodruff key is properly seated. Check for any blockages in the cooling water passages, intake screens, and the tell-tale outlet. Ensure all gaskets are correctly sealed.

Will this kit fit a Suzuki DF9.9A model?

No, the complete 17400-89812 maintenance kit is specifically for DF9.9B, DF15A, and DF20A models from 2013 onwards. For the DF9.9A (and DF8A), the compatible basic water pump repair kit is 17400-99J20.

Is this an OEM part?

This listing is an aftermarket replacement (not OEM). It is built to OEM-level specifications with comparable materials. Our parts are manufactured in an ISO 9002 certified facility and batch-inspected for quality and consistency.

What are the shipping speed and cost?

We ship worldwide quickly—typical transit time is 5–15 days. Standard shipping is free to most regions, with expedited options available at checkout where applicable.

What is the warranty and return policy?

This product is covered by a 1-year warranty against manufacturing defects under normal use. If you encounter any issues, please contact our support team with your order details. Returns are accepted within our standard window for unused items in their original condition. See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
