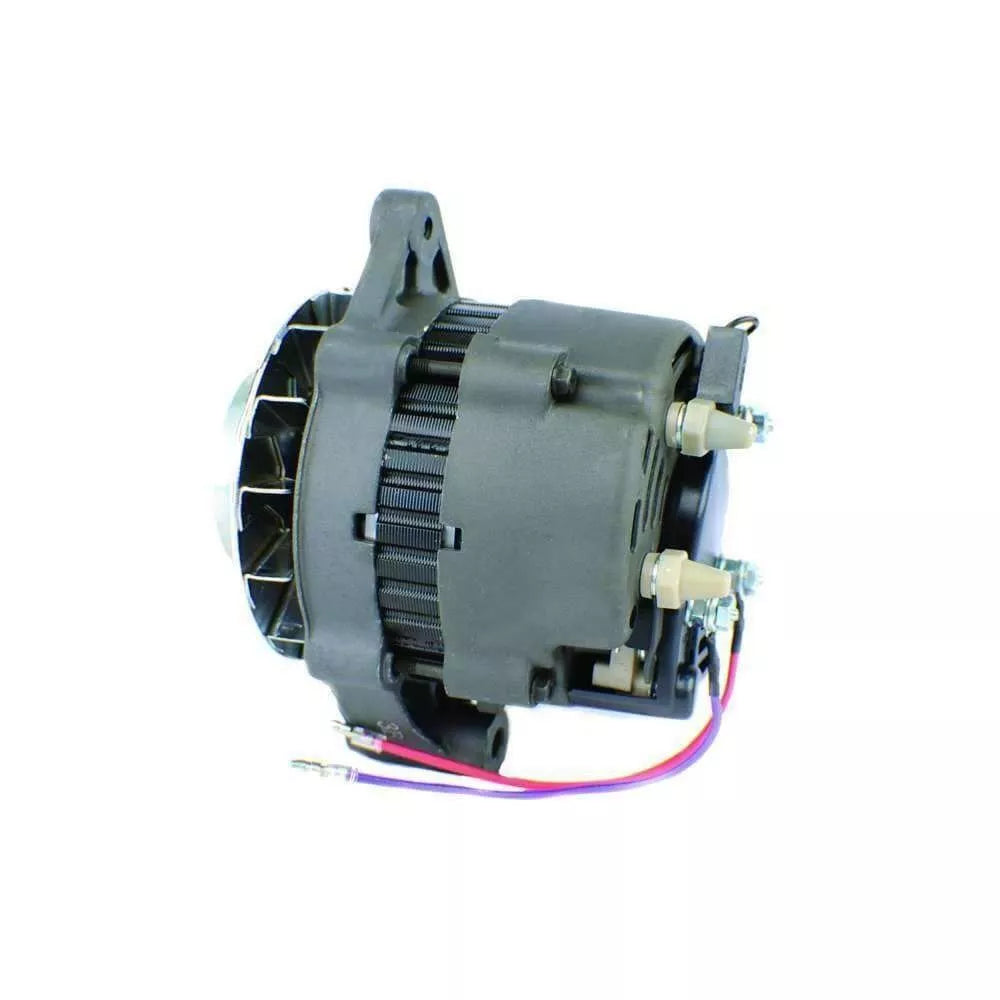

65-Amp Alternator – Fits Mercruiser V8 Engines 1993–1997 (Replaces 805884T)

$154.90 $247.00

Shipping calculated at checkout.

65-Amp Alternator – Fits Mercruiser V8 Engines 1993–1997 (Replaces 805884T) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This 65-Amp Alternator – Fits Mercruiser V8 Engines 1993–1997 (Replaces 805884T) is engineered for Mercruiser V8 5.7L, 7.4L, and 8.2L (350, 454, 502 ci) engines used in sterndrive and ski applications from 1993–1997.

It serves as a direct interchange for several OEM and aftermarket part numbers, including Mercury/Mercruiser 805884T, 805447T, API Marine 20054-HO, and Sierra 18-5965.

Installs with a standard V-Belt (Single V-Groove Pulley).
Marine Certified and compliant with SAE J1171 standards for ignition protection.
Features a simple 2-wire pigtail connection for easy hookup.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Mercury/Mercruiser	805884T
Mercury/Mercruiser	805447T
Mercury/Mercruiser	805884
Mercury/Mercruiser	805884P
Mercury/Mercruiser	807653
Mercury/Mercruiser	807653T
API Marine	20054-HO
Sierra	18-5965
WAI	12176N-1G

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This alternator fits a wide range of V8 GM engines used in Mercruiser sterndrive and ski boat applications.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Mercruiser	Black Scorpion Ski (Gen +)	5.7L/350ci	4-Stroke	1996	805884T	V8 GM Engine
Mercruiser	350 Mag EFI Ski (Gen +)	5.7L/350ci	4-Stroke	1996	805884T	V8 GM Engine
Mercruiser	350 Mag EFI Ski (TBI)	5.7L/350ci	4-Stroke	1994–1996	805884T	V8 GM Engine
Mercruiser	350 Mag MPI Ski	5.7L/350ci	4-Stroke	1995–1996	805884T	V8 GM Engine
Mercruiser	350 Mag Bravo MPI	5.7L/350ci	4-Stroke	1995	805884T	V8 GM Engine
Mercruiser	350 Mag Bravo MPI (Gen +)	5.7L/350ci	4-Stroke	1996	805884T	V8 GM Engine
Mercruiser	454 EFI (Gen V)	7.4L/454ci	4-Stroke	1994–1996	805884T	V8 GM Engine
Mercruiser	454 EFI Ski (Gen V)	7.4L/454ci	4-Stroke	1995	805884T	V8 GM Engine
Mercruiser	454 Mag MPI Ski (Gen VI)	7.4L/454ci	4-Stroke	1996–1997	805884T	V8 GM Engine
Mercruiser	454 Mag Bravo MPI (Gen VI)	7.4L/454ci	4-Stroke	1996–1999	805884T	V8 GM Engine
Mercruiser	454 Mag MPI (Gen VI)	7.4L/454ci	4-Stroke	1996–1997	805884T	V8 GM Engine
Mercruiser	502 EFI (Gen V)	8.2L/502ci	4-Stroke	1993–1995	805884T	V8 GM Engine
Mercruiser	502 Mag MPI (Gen VI)	8.2L/502ci	4-Stroke	1996–1997	805884T	V8 GM Engine
Mercruiser	5.7L EFI (TBI) Alpha	5.7L/350ci	4-Stroke	1995	805884T	V8 GM Engine
Mercruiser	5.7L EFI (TBI) Bravo	5.7L/350ci	4-Stroke	1995	805884T	V8 GM Engine
Mercruiser	7.4LX Bravo MPI (Gen V)	7.4L/454ci	4-Stroke	1996	805884T	V8 GM Engine
Mercruiser	7.4LX Bravo MPI (Gen VI)	7.4L/454ci	4-Stroke	1996–1997	805884T	V8 GM Engine
Mercruiser	7.4LX Bravo TBI (Gen VI)	7.4L/454ci	4-Stroke	1996–1997	805884T	V8 GM Engine
Mercruiser	7.4LX MPI (Gen V)	7.4L/454ci	4-Stroke	1996	805884T	V8 GM Engine
Mercruiser	7.4LX MPI (Gen VI)	7.4L/454ci	4-Stroke	1996–1997	805884T	V8 GM Engine
Mercruiser	7.4LX TBI (Gen VI)	7.4L/454ci	4-Stroke	1996–1997	805884T	V8 GM Engine

Technical Specs

Product Type: Marine Alternator
Installation: V-Belt (Single V-Groove Pulley)
Amperage: 65 Amps
Voltage: 12 Volts
Regulation: Internal
Housing Material: Aluminum
Housing Color: Black
Pulley Type: Single V-Groove
Connections: 2-Wire Pigtail
Shaft Size: 17mm with Two Flats
Mounting: Single Foot
Marine Certified: SAE J1171 Compliant
Dimensions: Height: 20.5cm; Width: 19.0cm; Length: 19.0cm

What’s in the Box

1 x Alternator Assembly (805884T)

Installation Notes

Disconnect the battery terminals, starting with the negative cable.
Loosen the belt tensioner and carefully remove the alternator drive belt.
Identify and disconnect the electrical connectors from the back of the old alternator.
Remove the mounting bolts securing the alternator to the engine bracket.
Lift the old alternator out of the engine bay.
Position the new alternator and loosely tighten the mounting bolts.
Reconnect the electrical pigtail and any other wires.
Reinstall the drive belt and adjust it to the proper tension.
Fully tighten all mounting bolts to the manufacturer's recommended torque specifications.
Reconnect the battery, starting with the positive cable.
Start the engine and use a voltmeter to confirm the charging output is within the correct range (typically 13.8–14.5 volts).

Troubleshooting & FAQ

How do I know if my alternator is failing?

Common signs include dimming headlights, a battery warning light on your console, a frequently dead battery, or a whining/grinding noise coming from the alternator itself while the engine is running.

Is this a direct bolt-on replacement for my engine?

Yes, this unit is designed to match the single-foot mounting style, V-belt pulley, and electrical connections of the original alternator on the specified Mercruiser V8 engine models.

What is the difference between an internally and externally regulated alternator?

This is an internally regulated alternator, which means the voltage regulator is built directly into the unit. This design simplifies wiring and is the standard for most modern marine applications, eliminating the need for a separate external regulator.

What maintenance does this alternator require?

Marine alternators are generally maintenance-free. However, it is good practice to periodically inspect the drive belt for wear and proper tension and to ensure all electrical connections are clean, tight, and free of corrosion.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
