395270 Boat Water Pump Impeller Repair Kit for Johnson Evinrude 18-28 HP Outboard Motors replaces 0395270 395271 Sierra 18-3383 Marine Engine

Product Details

This Water Pump Impeller Kit – Fits Johnson/Evinrude 14-28HP (Replaces 395270, 18-3383) is designed for Johnson and Evinrude outboard engines from 14HP to 28HP 2-Stroke models manufactured between 1979 and 1997. The kit provides all necessary components to rebuild the water pump assembly in the lower unit for a complete repair.

It directly replaces Johnson/Evinrude parts 395270, 395271, 777809, 394393, 394394, 391390 and interchanges with Sierra 18-3383, 18-3401, Mallory 9-48212, and GLM 12060.

• Installs in the lower unit housing.
• Includes impeller, housing, cup, gasket, grommet, and bolts.
• Engineered for direct OEM replacement fitment.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

For Johnson/Evinrude engines:

Technical Specs

Product Type

Water Pump Impeller Kit

Installation

Lower Unit

Housing Material

Plastic/Rubber

Connection

Direct Mount

Fitting Type

Direct OEM Replacement

Other Technical Attributes

Complete repair kit including housing and all necessary hardware

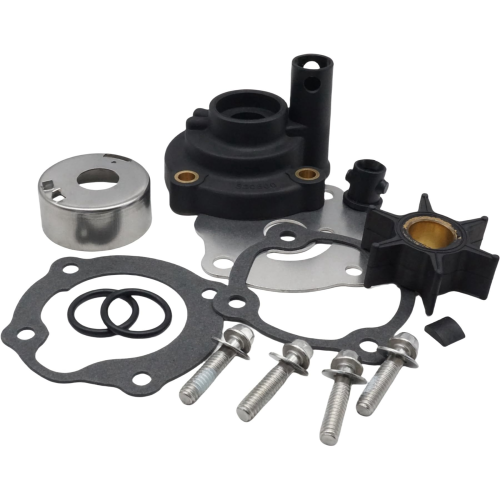

What’s in the Box

• 1 x Water Pump Impeller (395289, 18-3051)
• 1 x Housing (330560, 18-3363)
• 1 x Water Pump Cup (328751, 18-3358)
• 1 x Impeller Housing Gasket (329390, 18-3360)
• 1 x Grommet (302497, 18-3329)
• 4 x Bolts (331979, 18-3133)

Installation Notes

1. Disconnect the battery and remove the propeller.
2. Drain the gearcase lubricant completely.
3. Remove the lower unit from the outboard motor by unfastening the mounting bolts.
4. Unbolt and carefully separate the old water pump housing from the lower unit.
5. Clean the mating surfaces of any old gasket material or sealant.
6. Install the new impeller, cup, and housing components supplied in the kit.
7. Ensure the impeller drive key is correctly seated on the driveshaft.
8. Lightly grease the inside of the pump cup and the new impeller before assembly.
9. Reassemble the housing and tighten the bolts to the manufacturer's specified torque.
10. Reinstall the lower unit, refill with fresh gearcase lubricant, and reconnect the battery.
11. Start the engine in a water-filled test tank or with a water flusher to confirm proper water flow from the telltale outlet.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
