Water Pump Impeller Repair Kit – Fits Johnson/Evinrude 40-70 HP (Replaces 5000308, 438593, 769459)

$28.50

Shipping calculated at checkout.

Water Pump Impeller Repair Kit – Fits Johnson/Evinrude 40-70 HP (Replaces 5000308, 438593, 769459) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This complete Water Pump Impeller Repair Kit includes the pump housing and is designed for Johnson and Evinrude 40-70 HP 2-stroke outboard engines from approximately 1995 to 2005, including various commercial and E-TEC models. It provides all necessary components for a full service of the water pump assembly to restore engine cooling performance.

This kit is a direct aftermarket replacement for OEM part numbers including Johnson/Evinrude 5000308, 438593, 769459, 437772, and 437771, as well as other industry equivalents.

Engineered for direct OEM replacement fit and function.
Restores critical engine cooling system performance.
Includes impeller, housing, plate, gaskets, seals, and hardware.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Johnson/Evinrude	5000308
Johnson/Evinrude	438593
Johnson/Evinrude	769459
Johnson/Evinrude	437772
Johnson/Evinrude	437771
SEI Marine	96-364-01BK
GLM	12235

Engine & Model Compatibility

Confirm your engine model/year in the table below.

For Johnson/Evinrude/OMC models, this kit fits a wide range of 2-stroke outboards. Please verify your specific model and year, paying close attention to any notes regarding commercial models or specific gearcase types.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Johnson	J40WRLSIR, J40WRSIR, J40WRYSIR	40	2-Stroke	1998–2001	5000308
Johnson	J40WRLSSC, J40WRSSC, J40WRYSSC	40	2-Stroke	1998–2001	5000308
Johnson	J40WREES, J40WRLEES, J40WRYEES	40	2-Stroke	1998–2001	5000308
Johnson	SJ40RPLT2, SJ40RPT2, SJ40RPYT2	40	2-Stroke	1998–2001	5000308	T2 & M2 MODELS ONLY
Evinrude	E40DELSOR, E40DPLSOR, E40DRLSOR	40	2-Stroke	1998–2005	5000308
Evinrude	E40DELSRC, E40DPLSRC, E40DRLSRC	40	2-Stroke	1998–2005	5000308
Evinrude	E40WRLSIR, E40WRSIR, E40WRYSIR	40	2-Stroke	1998–2005	5000308
Evinrude	E40WRLSSC, E40WRSSC, E40WRYSSC	40	2-Stroke	1998–2005	5000308
Evinrude	E40WREES, E40WRLEES, E40WRYEES	40	2-Stroke	1998–2005	5000308
Evinrude	SE40RPLT2, SE40RPT2, SE40RPYT2	40	2-Stroke	1998–2005	5000308	T2 & M2 MODELS ONLY
Evinrude	E50DPLSOR, E50DPLSRC	50	2-Stroke	2004–2005	5000308
Johnson	J55APRLSOM, J55MLSOR	55	2-Stroke	1998–2005	5000308	Various gearcase models
Johnson	J55WRLSOE, J55WRYSOB	55	2-Stroke	1998–2005	5000308
Johnson	J55APRLSRA, J55APRLSRG	55	2-Stroke	1998–2005	5000308	GEARCASE & ROTOR HOUSING (APRL MODEL)
Johnson	J55MLSRC, J55MLSRG	55	2-Stroke	1998–2005	5000308	GEARCASE (ML MODEL)
Johnson	J55WRLSRB, J55WRLSRG, J55WRYSRM	55	2-Stroke	1998–2005	5000308
Johnson	J55APRL, J55MRL, J55WRLSTM	55	2-Stroke	1998–2005	5000308
Johnson	J55WRLSIR, J55WRSIR, J55WRYSIR	55	2-Stroke	1998–2005	5000308
Johnson	J55WRLSSC, J55WRSSC, J55WRYSSC	55	2-Stroke	1998–2005	5000308
Johnson	J55WREES, J55WRLEES, J55WRYEES	55	2-Stroke	1998–2005	5000308
Johnson	AM55RSLD	55	2-Stroke	1998–2005	5000308
Johnson	SJ55RSLM2, SJ55RSM2, SJ55RSYM2	55	2-Stroke	1998–2005	5000308	T2 & M2 MODELS ONLY
Evinrude	E55WRLSIR, E55WRSIR, E55WRYSIR	55	2-Stroke	1998–2001	5000308
Evinrude	E55WRLSSC, E55WRSSC, E55WRYSSC	55	2-Stroke	1998–2001	5000308
Evinrude	E55WREES, E55WRLEES, E55WRYEES	55	2-Stroke	1998–2001	5000308
Evinrude	SE55RSLM2, SE55RSM2, SE55RSYM2	55	2-Stroke	1998–2001	5000308	T2 & M2 MODELS ONLY
Evinrude	E60WDRLSOS, E60WDRYSOS	60	2-Stroke	2004–2005	5000308
Johnson/Evinrude	Commercial Models	40	2-Stroke	1995–2001	5000308	RP, RW designations
Johnson/Evinrude	Commercial Models	45, 55	2-Stroke	1995–2001	5000308
Evinrude E-TEC	Various	40, 50, 60	2-Stroke	2004–2005	5000308	Commercial models
Evinrude/Johnson	Various	65, 70	2-Stroke		5000308	Referenced in part listings but specific models not detailed

Technical Specs

Product Type: Water Pump Impeller Repair Kit with Housing
Installation: OEM Direct Replacement
Housing Color: Black
Warranty: 90 Day (Aftermarket)
Other Technical Attributes: Water cooling system component for outboard motors

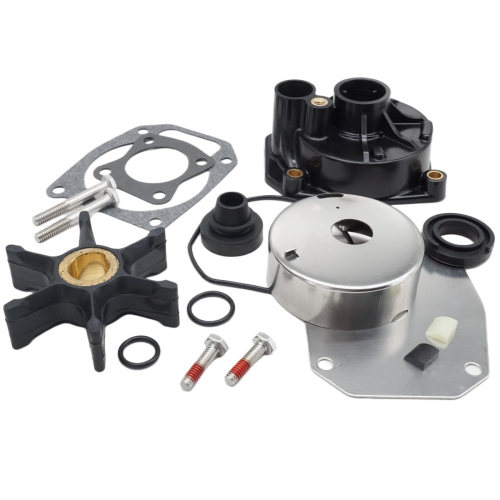

What’s in the Box

1 x Water Pump Impeller (396725)
1 x Pump Housing (438545)
1 x Insert Cup (340619)
1 x Wear Plate (341038)
1 x Gasket (336530)
1 x O-Ring (3010584)
1 x Seal (324981)
1 x Grommet (333758)
1 x Grommet (341732)
2 x Wedge Key (Black & White)
2 x Housing Screw (Short)
2 x Housing Screw (Long)

Installation Notes

Disconnect the battery and remove the engine cowling.
Shift the outboard into neutral. Drain the gearcase oil into a suitable container.
Remove the bolts securing the lower unit (gearcase) to the engine's midsection and carefully lower it.
Unbolt and remove the old water pump housing assembly located on top of the gearcase.
Clean the mounting surfaces and drive shaft. Note the orientation of the old impeller vanes upon removal.
Install the new components from the kit in reverse order. Lightly grease the new impeller and insert it while turning the drive shaft clockwise.
Ensure all gaskets, seals, and o-rings are seated correctly. Torque housing bolts to manufacturer specifications.
Reinstall the lower unit, top up the gearcase oil with the correct grade, and re-fasten all bolts.
Once assembled, start the engine in water and confirm a steady "telltale" stream of water is exiting the engine.

Troubleshooting & FAQ

How do I know if this kit fits my engine?

The best way to confirm fitment is to check your engine's model number and year against the compatibility table provided on this page. While this kit fits a wide range of Johnson and Evinrude motors, confirming your specific model is essential.

What are the signs of a failing water pump impeller?

Common symptoms include the engine overheating at idle or low speeds, a weak or non-existent water stream from the "telltale" outlet, and in some cases, a melted pump housing due to excessive heat.

How often should I replace my outboard's impeller?

As a general maintenance rule, it is recommended to inspect and/or replace the water pump impeller every 1 to 2 years or every 100-200 hours of use, whichever comes first. This interval can be shorter if you frequently operate in sandy or silty water.

Does this kit fit 65 HP and 70 HP models?

While some sources reference compatibility with 65 and 70 HP models, our data does not include specific model and year ranges for this horsepower class. We recommend verifying the OEM part number for your specific engine before purchasing.

Why are there two different colored wedge keys included?

The black and white wedge keys are included to fit different variations of the driveshaft across the wide range of supported engine models. You will only use the key that matches the one you are replacing.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
