Water Pump Drive Shaft Collar – Fits Yamaha 115-300HP Outboards (Replaces 61A-45527-00-00)
Water Pump Drive Shaft Collar – Fits Yamaha 115-300HP Outboards (Replaces 61A-45527-00-00) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Water Pump Drive Shaft Collar – Fits Yamaha 115-300HP Outboards (Re...
Product Details

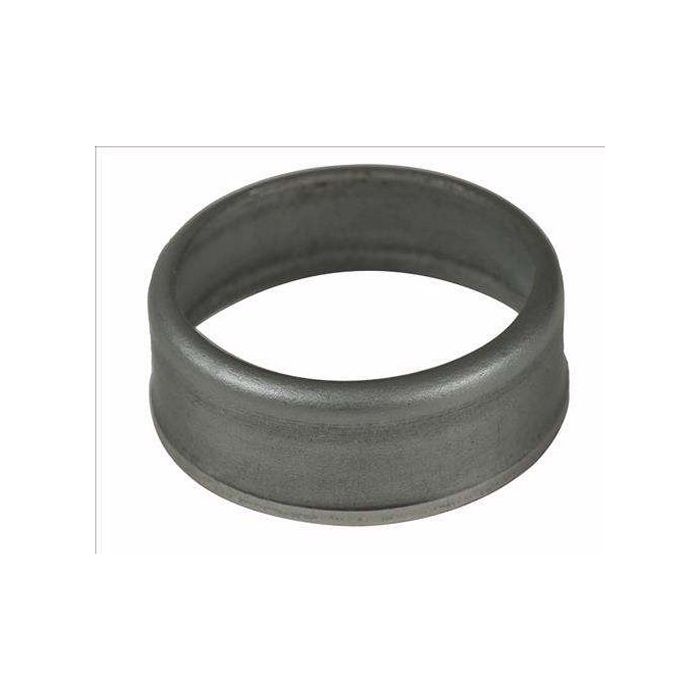

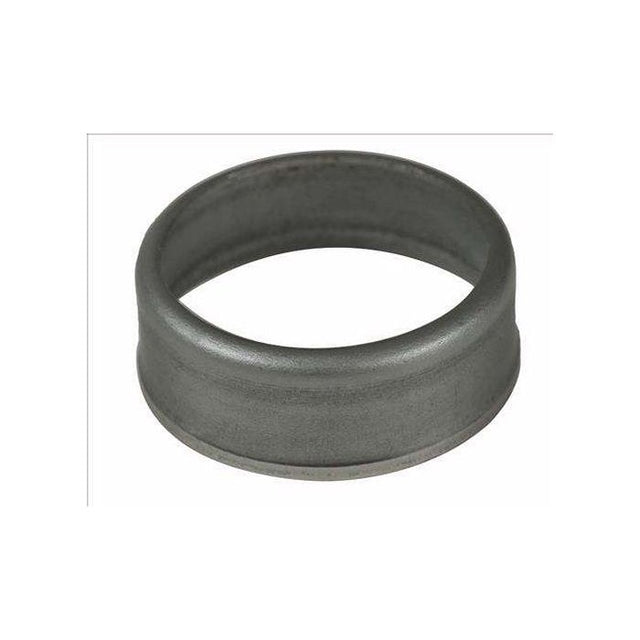

This high-quality Water Pump Drive Shaft Collar – Fits Yamaha 115-300HP Outboards (Replaces 61A-45527-00-00) secures critical components on the drive shaft within the water pump assembly. It is designed for a wide range of Yamaha 2-stroke and 4-stroke outboards from 115 to 300 HP (1990–2016) and select Mercury 225 EFI 4-stroke models (serial 0T653945 and up).
It serves as a direct replacement for Yamaha part 61A-45527-00-00 and interchanges with GLM 11194.
- Installation Location: Lower Unit / Outboard Lower Casing
- Material: Durable Stainless Steel Construction
- Note: Required when servicing a water pump on engines with anti-knock washers.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 61A-45527-00-00 |
| GLM | 11194 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This collar fits an extensive list of over 500 Yamaha engine models produced between 1990 and 2016. Below is a representative list of compatible series.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | 115TJR/TLR/TXR Series | 115 | 2-Stroke | 1993–2008 | 61A-45527-00-00 | |
| Yamaha | 130TLR/TXR Series | 130 | 2-Stroke | 1993–2004 | 61A-45527-00-00 | |
| Yamaha | 150TJR/TLR/TXR Series | 150 | 2-Stroke | 1992–2009 | 61A-45527-00-00 | |
| Yamaha | 175TLR/TXR Series | 175 | 2-Stroke | 1992–2005 | 61A-45527-00-00 | |
| Yamaha | 200TJR/TLR/TXR Series | 200 | 2-Stroke | 1992–1998 | 61A-45527-00-00 | |
| Yamaha | 225TLR/TUR/TXR Series | 225 | 2-Stroke | 1992–1997 | 61A-45527-00-00 | |
| Yamaha | 250ETX/TUR/TXR Series | 250 | 2-Stroke | 1990–1995 | 61A-45527-00-00 | |
| Yamaha | F115 Series | 115 | 4-Stroke | 2000–2016 | 61A-45527-00-00 | |
| Yamaha | F150 Series | 150 | 4-Stroke | 2004–2016 | 61A-45527-00-00 | |
| Yamaha | F175 Series | 175 | 4-Stroke | 2014–2016 | 61A-45527-00-00 | |
| Yamaha | F200 Series | 200 | 4-Stroke | 2002–2016 | 61A-45527-00-00 | |
| Yamaha | F225 Series | 225 | 4-Stroke | 2002–2016 | 61A-45527-00-00 | |
| Yamaha | VF115/VF150/VF175 Series | 115-175 | V MAX SHO 4-Stroke | 2014–2016 | 61A-45527-00-00 | |
| Yamaha | B/C/D/DX/FL/L/LF/LX/LZ/P/PX/S/SX/V/VX/VZ/Z Series | 115-300 | Various 2 & 4-Stroke | 1993–2012 | 61A-45527-00-00 | Multiple special designation models |
For Mercury engines, compatibility is specific to the models and serial numbers listed.
| Brand | Model | Rated HP | Stroke | Years | Notes |
|---|---|---|---|---|---|
| Mercury | 225 EFI | 225 | 4-Stroke | 0T653945 & Up |
Technical Specs
- Product Type
- Water Pump Drive Shaft Collar
- Installation
- Lower Unit/Outboard Lower Casing
- Material
- Stainless Steel
- Dimensions (H x W x L)
- 14.0 x 10.0 x 0.5
- Weight
- 9g (0.317 oz)
- Other Technical Attributes
- Required when changing a water pump on engines utilizing anti-knock washers
What’s in the Box
- 1 x Drive Shaft Collar (replaces 61A-45527-00-00)
Installation Notes
- Disconnect the battery and ensure the engine is off and in neutral.
- Drain the gearcase oil from the lower unit.
- Remove the lower unit bolts and detach the lower unit from the outboard.
- Disassemble the water pump housing to access the drive shaft.
- Remove the old drive shaft collar. Note the position of any associated washers or spacers.
- Clean the drive shaft and surrounding components of any corrosion or debris.
- Install the new drive shaft collar, ensuring it is properly seated.
- Reassemble the water pump with a new impeller and gaskets.
- Reattach the lower unit to the outboard, tightening bolts to the manufacturer's specified torque.
- Refill the gearcase with the correct type and amount of oil.
- Reconnect the battery and test the engine's cooling system function.
Troubleshooting & FAQ
How do I know if this collar fits my specific engine model?
This part fits hundreds of Yamaha models from 115-300HP (1990-2016) and select Mercury 225 EFI engines. Always check the compatibility table on this page against your engine's model, year, and serial number. When in doubt, compare the part number 61A-45527-00-00 to your service manual.
Is this collar difficult to install?
Installation requires removing the outboard's lower unit and disassembling the water pump. While it can be a DIY job for those with mechanical experience, we recommend professional installation to ensure correct assembly and function.
What are the signs of a failing drive shaft collar?
A worn or broken collar can lead to loose components on the drive shaft, causing unusual noises from the lower unit, vibrations, or potential failure of the water pump to circulate coolant effectively. It is typically replaced as part of a complete water pump service.
Do I need to replace anything else with this collar?
Yes, this collar is often used with a corresponding spacer (Yamaha P/N 61A-45538-00-00) and sometimes anti-knock washers. While these are separate parts not included here, it's crucial to inspect and replace them if they show signs of wear during your water pump service.
Is this an OEM or aftermarket part?
This listing is an aftermarket replacement (not OEM). It is built to OEM-level specifications with comparable materials and manufactured in an ISO 9002 facility, with batch inspections for consistency.
What are the shipping speed and cost?
We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free, and expedited options will appear at checkout where available.
What is the warranty and return policy?
This product is covered by a 1-year warranty against manufacturing defects under normal use. If any issues arise, please contact our support team with your order details. Returns are accepted within our standard window for unused items in their original condition. See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
