Aluminum Trim Tab Anode – Fits Mercury/Mariner Outboard 35+ HP & MerCruiser Stern Drives (Replaces 822777Q1, 822777A1)

$25.50 $40.00

Shipping calculated at checkout.

Aluminum Trim Tab Anode – Fits Mercury/Mariner Outboard 35+ HP & MerCruiser Stern Drives (Replaces 822777Q1, 822777A1) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

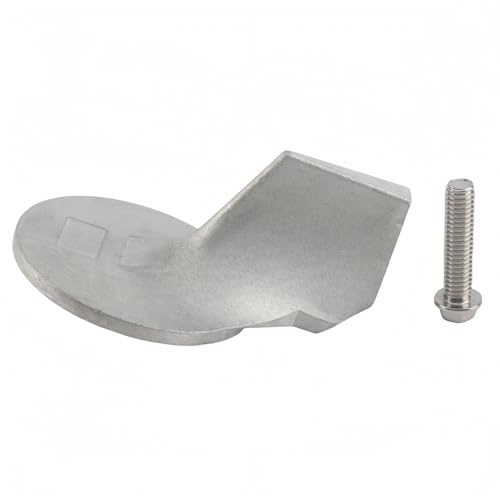

This high-quality Aluminum Trim Tab Anode is designed for a wide range of Mercury/Mariner outboards (35 HP and above, from 1995 and up), Force outboards (90HP and 120HP, 1995+), and all MerCruiser stern drives. It provides essential galvanic corrosion protection for your engine's underwater components while also serving as a trim tab to counteract propeller torque.

It serves as a direct interchange for Mercury part numbers 822777A1 and 822777Q1, MerCruiser 46399A1, and aftermarket equivalents including Sierra 18-6014 and GLM 12680.

Installation: Simple bolt-on process with the included mounting bolt.
Environment: Formulated from a premium aluminum alloy for use in both fresh water and salt water.
Function: Provides dual-purpose corrosion protection and hydrodynamic trim force.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Mercury	822777A1
Mercury	822777Q1
Mercury	46399A2
MerCruiser	46399A1
Sierra	18-6014
GLM	12680
Tecnoseal	00804AL

Engine & Model Compatibility

Confirm your engine model/year in the table below.

For Mercury/Mariner & Force Outboards: Fits most standard models 35HP and up from 1995, including specific 225HP CARB, Marathon, and SeaPro series.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Mercury	225 (3.0L CARB)	225	2-Stroke	1995–2004	822777Q1	Serial #0D280813 - 0G760299
Mercury	225 MARATHON (3.0L CARB)	225	2-Stroke	1995–2004	822777Q1	Serial #0G245605 - 0G760299
Mercury	225 SEAPRO (3.0L CARB)	225	2-Stroke	1995–2004	822777Q1	Serial #0G245605 - 0G760299
Mercury/Mariner	Standard Models	35-300	2-Stroke & 4-Stroke	1995 and up	822777A1/822777Q1	Fits most 35HP & above models
Force	Standard Models	90, 120	2-Stroke	1995 and up	822777A1/822777Q1

For MerCruiser Stern Drives: Compatible with all Alpha One, SSM series, and other sterndrive models, especially when using high-rake propellers.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
MerCruiser	Alpha One	All	4-Stroke	All	46399A1
MerCruiser	SSM II/III/IV/V	All	4-Stroke	All	46399A1
MerCruiser	ALPHA ONE SS	All	4-Stroke	1982–1989	46399A1
MerCruiser	All Sterndrives	All	4-Stroke	All	46399A1	Using high rake propellers

Technical Specs

Product Type: Trim Tab Anode
Installation: Bolt-on
Material: Aluminum Alloy
Color: Silver
Weight: 0.38 kg (0.84 lb)
Connection: Direct bolt-on with included bolt
Application: Marine outboard and stern drive engines
Operating Environment: Fresh water and salt water
Engine Type Compatibility: 2-Stroke & 4-Stroke
Function: Corrosion protection and hydrodynamic trim force

What’s in the Box

1 x Aluminum Trim Tab Anode (Replaces 822777Q1/822777A1)
1 x Mounting Bolt

Installation Notes

Disconnect the negative battery cable before beginning work.
Locate and unbolt the old trim tab anode from the underside of the anti-ventilation plate.
Thoroughly clean the mounting surface on the gearcase. A clean, bare metal contact area is essential for proper conductivity. Do not paint the anode or the mounting surface.
Position the new anode and install the included mounting bolt.
Tighten the bolt to the engine manufacturer's recommended torque specification. Do not overtighten.
Reconnect the negative battery cable.

Troubleshooting & FAQ

How do I know if this anode will fit my engine?

First, compare your old part to our images and specs. Second, check the compatibility tables provided for your engine's make, model, and year. Finally, you can cross-reference your existing part number with those in the Part Number Matrix to ensure it is a direct equivalent.

What is the 'trim tab' function for?

Besides protecting against corrosion, the tab acts as a small rudder to counteract propeller torque steer. This helps the boat track straight without requiring constant steering wheel correction. You may need to adjust its angle slightly for optimal handling.

Can I use this aluminum anode in salt water?

Yes. This modern aluminum alloy anode is specifically designed for excellent performance in all water types—salt, brackish, and fresh. It offers broader, more effective protection compared to traditional zinc anodes, which are only suitable for salt water.

How often should I replace my trim tab anode?

Inspect your anodes at least once a year or every 50-100 hours of operation. You must replace the anode when it is approximately 50-60% eroded to maintain continuous galvanic protection for your engine.

What are the signs of a failing or depleted anode?

Visible signs include rapid or uneven corrosion, significant pitting, or the anode being almost completely gone. Functionally, you may notice new corrosion or paint blistering on other underwater metal components like your gearcase or propeller.

Why is it important to use the new bolt?

Using the new, clean mounting bolt is critical. An old, dirty, or corroded bolt can impede the electrical connection between the anode and the engine, rendering the anode ineffective at protecting your expensive components.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
