Product Details

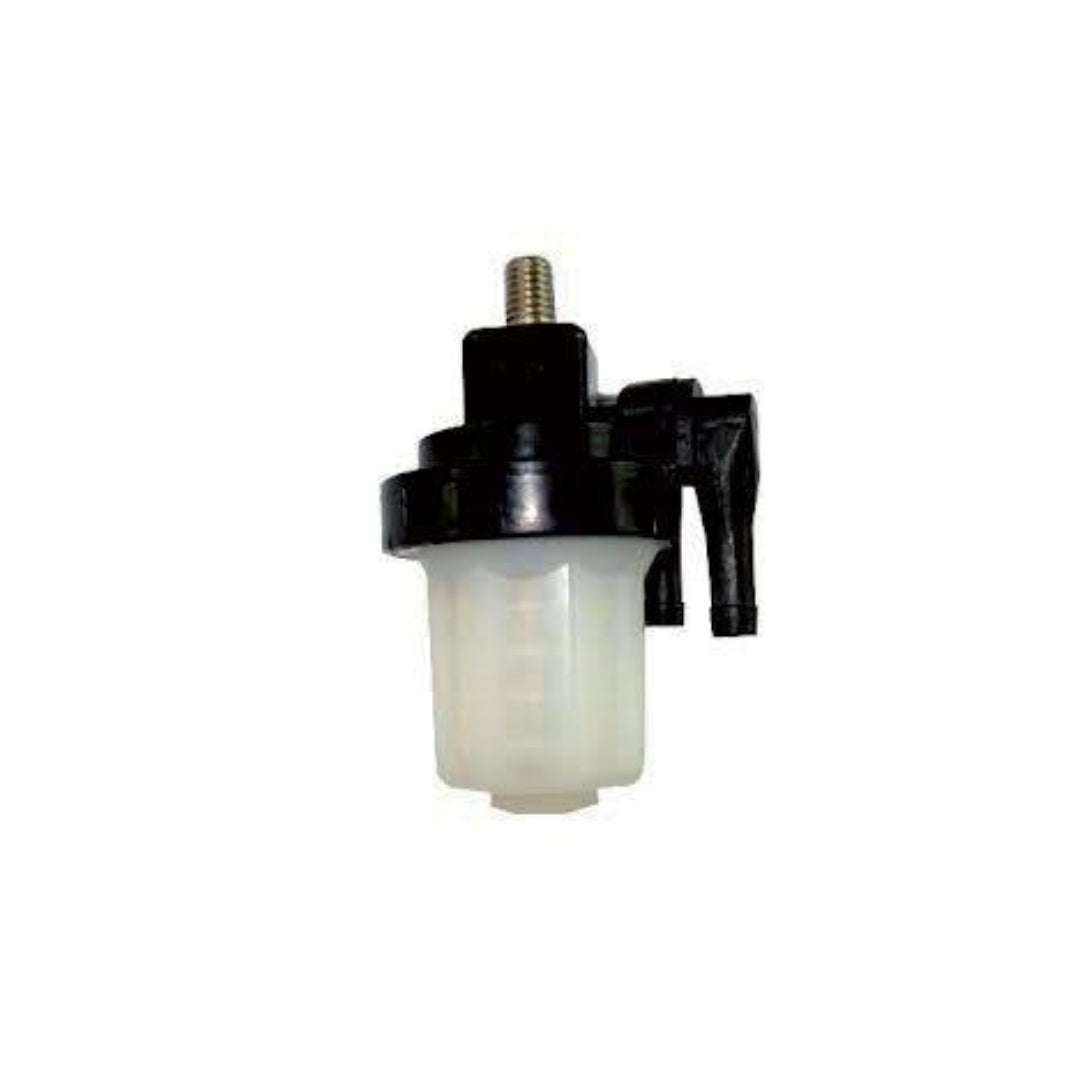

This inline Fuel Filter Assembly – Fits Yamaha, Suzuki, Tohatsu, Mercury (Replaces PAF15-07080000, 61N-24560-00) is designed for a broad range of 2-stroke and 4-stroke outboard engines. It offers wide compatibility with Yamaha (9.9–100 HP, 1995–2018), Suzuki (5–65 HP, 1986–2000), Tohatsu (25–30 HP), Mercury/Mariner (8–40 HP), and Parsun (9.9–25 HP) models, ensuring reliable fuel filtration.
This unit is a direct replacement for Yamaha 61N-24560-00/61N-24560-10, Mercury 35-826964T/826964M, Suzuki 15410-93411/15410-94400, Tohatsu 3AC-02230-0, and Parsun F15-07080000/PAF15-07080000.
- Installs externally on the inline fuel line.
- Compact design is ideal for tight engine spaces.
- Includes the filter element (pre-installed inside the assembly).
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 61N-24560-00 / 61N-24560-10 |
| Mercury | 35-826964T / 826964M |
| Suzuki | 15410-93411 / 15410-94400 |
| Tohatsu | 3AC-02230-0 |
| Parsun | F15-07080000 / PAF15-07080000 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Yamaha outboards from 9.9 to 100 HP, covering various F-series models from 1995 to 2018.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F9.9 (6CA) | 9.9 | 4-Stroke | 2009+ | 61N-24560-00/61N-24560-10 | |
| Yamaha | F15 (69A, 66M) | 15 | 4-Stroke | 2004–2007 | 61N-24560-00/61N-24560-10 | |
| Yamaha | F15 (6AG) | 15 | 4-Stroke | 2007+ | 61N-24560-00/61N-24560-10 | |
| Yamaha | F20 (65P, 65W) | 20 | 4-Stroke | 2002–2006 | 61N-24560-00/61N-24560-10 | |
| Yamaha | F20 (6AH) | 20 | 4-Stroke | 2007+ | 61N-24560-00/61N-24560-10 | |
| Yamaha | F20 (6DN, 6BP) | 20 | 4-Stroke | 2009–2018 | 61N-24560-00/61N-24560-10 | |
| Yamaha | F25 (65P, 65W) | 25 | 4-Stroke | 2002–2006 | 61N-24560-00/61N-24560-10 | |
| Yamaha | F25 (6DN, 6BP) | 25 | 4-Stroke | 2009–2018 | 61N-24560-00/61N-24560-10 | |
| Yamaha | F40 (66W) | 40 | 4-Stroke | 1999–2002 | 61N-24560-00/61N-24560-10 | |
| Yamaha | F50 (62Y) | 50 | 4-Stroke | 1995–2007 | 61N-24560-00/61N-24560-10 | |
| Yamaha | F50 (60A) | 50 | 4-Stroke | 2010 | 61N-24560-00/61N-24560-10 | |
| Yamaha | F60 (69W) | 60 | 4-Stroke | 2004–2007 | 61N-24560-00/61N-24560-10 | |
| Yamaha | F80 (67G) | 80 | 4-Stroke | 2002–2006 | 61N-24560-00/61N-24560-10 | |
| Yamaha | F100 (67F) | 100 | 4-Stroke | 2002–2006 | 61N-24560-00/61N-24560-10 | |
| Yamaha | F100 (60C) | 100 | 4-Stroke | 2003, 2005–2012 | 61N-24560-00/61N-24560-10 | |
| Yamaha | F100 (60D) | 100 | 4-Stroke | 2003 | 61N-24560-00/61N-24560-10 |
For Suzuki DT-series 2-stroke outboards from 5 to 65 HP, generally covering models from 1986 to 2000.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DT9.9K, DT15K-G-Y | 9.9, 15 | 2-Stroke | 1986–2000 | 15410-93411/15410-94400 | |
| Suzuki | DT25C, DT30C-K-Y | 25, 30 | 2-Stroke | 1989–2000 | 15410-93411/15410-94400 | |
| Suzuki | DT20, DT25, DT30G-Y | 20, 25, 30 | 2-Stroke | 1986–2000 | 15410-93411/15410-94400 | |
| Suzuki | DT55, DT65J-X | 55, 65 | 2-Stroke | 1988–1999 | 15410-93411/15410-94400 | |
| Suzuki | DT40C-W-G-X | 40 | 2-Stroke | 1986–1999 | 15410-93411/15410-94400 | |
| Suzuki | DT5, DT6, DT8G-Y | 5, 6, 8 | 2-Stroke | 1986–2000 | 15410-93411/15410-94400 |
For specific Tohatsu, Mercury/Mariner, and Parsun models listed below. Please verify your engine model, as specific year ranges are not available.
| Brand | Model | Rated HP | Stroke | OEM Part No. | Notes |
|---|---|---|---|---|---|
| Tohatsu | MFS25 | 25 | 4-Stroke | 3AC-02230-0 | |
| Tohatsu | MFS25B | 25 | 4-Stroke | 3AC-02230-0 | |
| Tohatsu | MFS30 | 30 | 4-Stroke | 3AC-02230-0 | |
| Mercury/Mariner | 8K/15K/25K/40K (Japan Origin) | 8, 15, 25, 40 | 4-Stroke | 35-826964T/826964M | |
| Mercury/Mariner | 25/30 EFI | 25, 30 | 4-Stroke | 35-826964T/826964M | |
| Parsun | F9.9BML, F9.9BMS | 9.9 | 4-Stroke | F15-07080000/PAF15-07080000 | |
| Parsun | F13.5BML, F13.5BMS | 13.5 | 4-Stroke | F15-07080000/PAF15-07080000 | |
| Parsun | F15BML, F15BMS | 15 | 4-Stroke | F15-07080000/PAF15-07080000 | |
| Parsun | F15A, F20A | 15, 20 | 4-Stroke | F15-07080000/PAF15-07080000 | |
| Parsun | F20, F25 | 20, 25 | 4-Stroke | F15-07080000/PAF15-07080000 |
Technical Specs
- Product Type
- Inline Fuel Filter Assembly
- Installation
- External, Inline
- Fuel Type
- Gasoline
- Connection
- Inline Fuel Line
- Housing Material
- Marine-Grade Construction
- Housing Color
- Black
- Dimensions
- 8.5 x 8.5 x 8.5 inches
- Weight
- 0.09 kg (0.2 lbs)
- Fitting Type
- Inline Fuel Line Connection
- Thread Size
- M8 (stud on filter housing)
- Warranty
- 1 Year (Recmar Aftermarket)
- Other Technical Attributes
- Compact design for tight engine spaces
What’s in the Box
- 1 x Fuel Filter Assembly (F15-07080000/PAF15-07080000)
- 1 x Filter Element (F15-07080001) [Included within assembly]
Installation Notes
- Ensure the engine is off and cool. Relieve any pressure in the fuel system according to your service manual.
- Place a rag or container under the old filter to catch any spilled fuel.
- Note the direction of fuel flow, usually marked with an arrow on the filter housing.
- Carefully loosen the clamps and disconnect the fuel lines from the old filter.
- Remove the old filter from its mounting bracket.
- Mount the new filter assembly, ensuring the flow arrow points in the correct direction (towards the engine).
- Securely attach the fuel lines to the new filter and tighten the clamps.
- Prime the fuel system according to your engine manufacturer's instructions.
- Start the engine and check carefully for any leaks around the filter and connections.
Troubleshooting & FAQ
How do I know if this filter fits my engine?
The best way is to compare your original part's number to the ones listed in our Part Number Matrix. Also, check your engine model and year against the compatibility tables. If you're still unsure, visually compare your old filter to our product photos.
What are the signs of a clogged fuel filter?
Common symptoms include engine sputtering, difficulty starting, rough idling, loss of power at high speeds, or stalling. A visual inspection might also show dirt or debris in the filter bowl if it's transparent.
How often should I replace my fuel filter?
For most outboard engines, it's recommended to replace the fuel filter annually or every 100 hours of operation, whichever comes first. Refer to your engine's service manual for the specific maintenance schedule.
Can I clean and reuse the filter element?
No, the filter element is a disposable component and is not designed to be cleaned and reused. Attempting to clean it can damage the filter media and allow contaminants to enter your fuel system, potentially causing engine damage.
My engine model isn't listed, but the part number matches. Will it fit?
If the OEM part number from your old filter matches a cross-reference number in our listing, it is highly likely to be the correct part. Engine manufacturers often use the same part across many unlisted or similar models.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
