Fuel Filter Element – Fits Yamaha Outboard 150-350 HP (Replaces 6P3...
Product Details

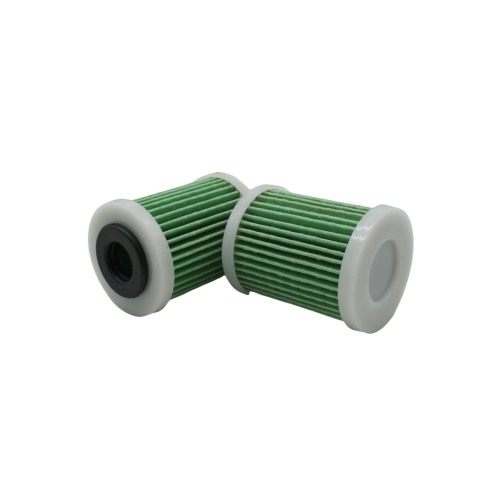

This replacement Fuel Filter Element – Fits Yamaha Outboard 150-350 HP (Replaces 6P3-WS24A-01-00, 6P3-WS24A-02-00) is designed to protect your engine’s fuel system from contaminants. It is engineered for a precise fit in Yamaha 4-Stroke outboard engines from 150 to 350 HP (including F, VF, and Z series models) manufactured in 2006 and later.
It serves as a direct replacement for Yamaha part numbers 6P3-WS24A-00-00, 6P3-WS24A-01-00, and 6P3-WS24A-02-00, as well as Sierra 18-79809 and Quicksilver 8M0122420.
- Installs directly into the OEM in-line filter housing.
- Provides 27-micron filtration to capture harmful particles.
- For use only with Yamaha filter housings marked "6P3".
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Notes |
|---|---|---|
| Yamaha | 6P3-WS24A-02-00 | Current part. Supersedes 6P3-WS24A-01-00 & 6P3-WS24A-00-00. |
| Yamaha | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00. |
| Yamaha | 6P3-WS24A-00-00 | Superseded by 6P3-WS24A-01-00. |
| Sierra | 18-79809 | Aftermarket equivalent. |
| Quicksilver | 8M0122420 | Aftermarket equivalent. |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This filter element is designed for a wide range of Yamaha 4-stroke outboards from 2006 onwards. Check your specific model and series for a perfect match.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F150 | 150 | 4-Stroke | 2006 and Later | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00, 6P3-WS24A-00-00 |
| Yamaha | F150A, F150LA, F150XA | 150 | 4-Stroke | 2012–2016 | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | F150JA, F150JB | 150 | 4-Stroke | 2012–2016 | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | F150TJR, F150TLR, F150TXR | 150 | 4-Stroke | 2006–2011 | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | LF150 Series | 150 | 4-Stroke | 2006 and Later | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | F175LA, F175XA | 175 | 4-Stroke | 2014–2016 | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | VF175LA | 175 | 4-Stroke | 2015–2016 | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | F200 Series | 200 | 4-Stroke | 2006 and Later | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | VF200LA | 200 | 4-Stroke | 2009–2016 | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | LF200 Series | 200 | 4-Stroke | 2012–2016 | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | F225 Series | 225 | 4-Stroke | 2006 and Later | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | VF225LA | 225 | 4-Stroke | 2009–2016 | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | LF225 Series | 225 | 4-Stroke | 2006 and Later | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | F250 Series | 250 | 4-Stroke | 2006 and Later | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | VF250LA, VF250XA | 250 | 4-Stroke | 2009–2016 | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | LF250 Series | 250 | 4-Stroke | 2006 and Later | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | F300 Series | 300 | 4-Stroke | 2006 and Later | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | LF300 Series | 300 | 4-Stroke | 2006 and Later | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | F350 Series | 350 | 4-Stroke | 2006 and Later | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | LF350 Series | 350 | 4-Stroke | 2006 and Later | 6P3-WS24A-2-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | VZ150TLR | 150 | 4-Stroke | 2006–2014 | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | VZ175TLR | 175 | 4-Stroke | 2006–2011 | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | Z200TXR | 200 | 4-Stroke | 2006–2011 | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | VZ225TLR, VZ250TLR, VZ300TLR | 225-300 | 4-Stroke | 2006 | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
| Yamaha | Z300TUR, Z300TXR | 300 | 4-Stroke | 2006 | 6P3-WS24A-02-00 | Supersedes 6P3-WS24A-01-00 |
Technical Specs
- Product Type
- Primary Fuel Filter Element
- Installation
- In-line, OEM housing required
- Filtration Rating
- 27 microns
- Fuel Type
- Gasoline
- Connection
- Direct fit to OEM filter housing
- Housing Material
- ABS (filter element only)
- Housing Color
- Green
- Weight
- 0.05 kg (1.58 oz)
- Other Technical Attributes
- For use with Yamaha filter housing marked "6P3" only
What’s in the Box
- 1 x Fuel Filter Element (6P3-WS24A-02-00)
Installation Notes
- Shut off the engine and the fuel supply line.
- Locate the fuel filter housing. Place a rag or container underneath to catch any spilled fuel.
- Carefully unscrew the filter cup or housing, being mindful of fuel pressure.
- Remove the old filter element and any O-rings or seals. Clean the inside of the housing.
- Install the new element, ensuring it is oriented correctly. Replace seals if necessary.
- Securely tighten the housing. Do not over-torque.
- Restore the fuel supply, prime the system according to your engine’s manual, and check for any leaks before starting the engine.
Troubleshooting & FAQ
How do I know if this filter fits my engine?
First, confirm that your engine's model and year are listed in the compatibility table. Second, and most importantly, verify that your onboard fuel filter housing is marked with "6P3". This element only fits that specific housing.
What are the signs of a clogged fuel filter?
Common symptoms include the engine bogging down under acceleration, inconsistent RPMs, sputtering, loss of power, or difficulty starting. These signs indicate fuel flow is restricted, and the filter is a likely cause.
What is the recommended replacement interval?
For most Yamaha outboards, the recommended service interval for the primary fuel filter is every 100 hours of operation or annually, whichever comes first. Always consult your owner’s service manual for the most accurate maintenance schedule.
Is this the entire filter assembly or just the element?
This listing is for the internal fuel filter element only. The fuel lines and the outer plastic housing/cup are not included.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
