Fuel Filter Element – Fits Yanmar 3JH, 4JH, 4LH, 6LY Series (Replaces 120324-55760)
Fuel Filter Element – Fits Yanmar 3JH, 4JH, 4LH, 6LY Series (Replaces 120324-55760) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Fuel Filter Element – Fits Yanmar 3JH, 4JH, 4LH, 6LY Series (Replac...
Product Details

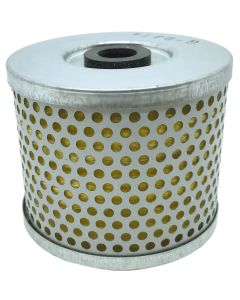

This primary Fuel Filter Element – Fits Yanmar 3JH, 4JH, 4LH, 6LY Series (Replaces 120324-55760) is engineered for a wide range of Yanmar 4-stroke marine diesel engines, including the 3JH, 4JH, 4LH, and 6LY series. It serves as a crucial primary fuel filter and water separator to protect your engine's fuel system from contaminants.
It is a direct replacement for Yanmar 120324-55760, Fleetguard FF230, Baldwin PF986, Donaldson P550745, Sakura SF-52150, and Hifi SN 21600.
- Installs directly into the fuel filter assembly housing (part number 120324-55751).
- This is the short type filter element, measuring 60mm in height. Always verify dimensions against your current part.
- Designed for use with diesel fuel in marine and industrial applications.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yanmar | 120324-55760 |
| Yanmar | YM-12032455760 |
| Fleetguard | FF230 |
| Baldwin | PF986 |
| Donaldson | P550745 |
| Sakura | SF-52150 |
| Hifi | SN 21600 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This element is known to fit a wide variety of Yanmar marine engines, as well as select Komatsu and Neuson industrial equipment that use Yanmar power plants.
| Brand | Model | Rated HP | Stroke | OEM Part No. | Notes |
|---|---|---|---|---|---|
| Yanmar | 3JH2-T | 4-Stroke | 120324-55760 | ||
| Yanmar | 3JH2E | 4-Stroke | 120324-55760 | ||
| Yanmar | 3JH3E | 4-Stroke | 120324-55760 | ||
| Yanmar | 3JH4E | 4-Stroke | 120324-55760 | ||
| Yanmar | 3JH5 | 4-Stroke | 120324-55760 | ||
| Yanmar | 3JH5E | 4-Stroke | 120324-55760 | ||
| Yanmar | 3JH40 | 4-Stroke | 120324-55760 | ||
| Yanmar | 4JH-E/TE/HTE/DTE | 4-Stroke | 120324-55760 | Various models in series | |
| Yanmar | 4JH2-E/TE/HTE/DTE | 4-Stroke | 120324-55760 | Various models in series | |
| Yanmar | 4JH2-UTE | 4-Stroke | 120324-55760 | ||
| Yanmar | 4JH3-TE/DTE | 4-Stroke | 120324-55760 | ||
| Yanmar | 4JH4-TE/HTE/HTE1 | 4-Stroke | 120324-55760 | ||
| Yanmar | 4JH4AE | 4-Stroke | 120324-55760 | ||
| Yanmar | 4JH4E | 4-Stroke | 120324-55760 | ||
| Yanmar | 4JH5E | 4-Stroke | 120324-55760 | ||
| Yanmar | 4LH-DTE | 4-Stroke | 120324-55760 | ||
| Yanmar | 4LH-STE | 4-Stroke | 120324-55760 | ||
| Yanmar | 4LHA-DTE | 4-Stroke | 120324-55760 | ||
| Yanmar | 4LHA-DTP | 4-Stroke | 120324-55760 | ||
| Yanmar | 4LHA-DTZE | 4-Stroke | 120324-55760 | ||
| Yanmar | 4LHA-DTZP | 4-Stroke | 120324-55760 | ||
| Yanmar | 4LHA-STE | 4-Stroke | 120324-55760 | ||
| Yanmar | 4LHA-STP | 4-Stroke | 120324-55760 | ||
| Yanmar | 4LHA-STZE | 4-Stroke | 120324-55760 | ||
| Yanmar | 4LHA-STZP | 4-Stroke | 120324-55760 | ||
| Yanmar | 4TNE106T | 4-Stroke | 120324-55760 | Industrial engine | |
| Yanmar | 6LY2A-STP | 4-Stroke | 120324-55760 | ||
| Yanmar | 8LV320 | 320 | 4-Stroke | 120324-55760 | |
| Yanmar | 8LV350 | 350 | 4-Stroke | 120324-55760 | |
| Yanmar | 8LV370 | 370 | 4-Stroke | 120324-55760 | |
| Neuson | 12002 RD | 4-Stroke | |||
| Komatsu | PC 110 R | 4-Stroke | YM12032455760 | ||
| Komatsu | PC 95-1 | 4-Stroke | YM12032455760 | ||
| Komatsu | PC 95-2 | 4-Stroke | YM12032455760 | ||
| Komatsu | PC 95 R-2 | 4-Stroke | YM12032455760 | ||
| Komatsu | PW 110 R | 4-Stroke | YM12032455760 | ||
| Komatsu | WA 75-3 | 4-Stroke | YM12032455760 | ||
| Komatsu | WA 85-3 | 4-Stroke | YM12032455760 | ||
| Komatsu | WA 90-3 | 4-Stroke | YM12032455760 | ||
| Komatsu | WA 95 | 4-Stroke | YM12032455760 | ||
| Komatsu | WA 95-3 | 4-Stroke | YM12032455760 | ||
| Komatsu | WB 91 R-2 | 4-Stroke | YM12032455760 | ||
| Komatsu | WB 93 R-2 | 4-Stroke | YM12032455760 | ||
| Komatsu | WB 97 R-2 | 4-Stroke | YM12032455760 | ||
| Komatsu | WB 97 S-2 | 4-Stroke | YM12032455760 | ||
| Komatsu | WB 98 A-2 | 4-Stroke | YM12032455760 |
Technical Specs
- Product Type
- Primary Fuel Filter Element / Water Separator
- Installation
- Fits in filter assembly P/N 120324-55751
- Fuel Type
- Diesel
- Dimensions
- Height: 60mm (2.36"); Diameter: 75mm (2.95")
- Weight
- 0.11 kg (0.24 lb)
- Warranty
- 1 year (aftermarket)
- Other Technical Attributes
- Short type filter element; Note: Some compatible models may alternatively use the larger 41650-502320 element (90mm height)
What’s in the Box
- 1 x Fuel Filter Element (120324-55760)
Installation Notes
- Shut off the fuel supply valve to the engine to prevent spills.
- Place a suitable container or absorbent towels under the fuel filter housing to catch any diesel fuel.
- Unscrew the filter housing bowl or retaining ring. Carefully lower and remove the old filter element.
- Clean the inside of the housing and bowl with a clean, lint-free cloth. Inspect gaskets and O-rings for wear and replace if necessary.
- Lightly lubricate the new filter's gaskets with clean diesel fuel or motor oil.
- Install the new filter element into the housing, ensuring it is seated correctly.
- Reassemble the housing, screwing it on hand-tight until the gasket makes contact, then tighten as per manufacturer specifications (usually an additional 1/2 to 3/4 turn). Do not overtighten.
- Prime the fuel system according to your engine's manual to bleed any air from the lines.
- Start the engine and carefully check for any leaks around the filter housing.
Troubleshooting & FAQ
Is this the correct filter for my Yanmar engine?
This element fits many models in the Yanmar 3JH, 4JH, 4LH, and 6LY series. However, it's critical to verify the part number (120324-55760) and dimensions against your existing filter. Some engine models use a taller 90mm element (part no. 41650-502320), so always measure before ordering.
What are the signs that my fuel filter needs replacement?
Common symptoms include engine hesitation or sputtering, difficulty starting, reduced power output, or visible debris or water in the fuel filter's water separator bowl. Regular replacement is the best prevention.
How often should this fuel filter be replaced?
Replacement intervals depend on fuel quality, tank condition, and operating hours. As a general guideline, it is recommended to replace the primary fuel filter element at least once per season or every 200-250 service hours, whichever comes first.
What is the difference between this and the taller 90mm filter?
This is the "short type" 60mm filter. The taller 90mm filter (41650-502320) has a larger surface area and may offer longer service intervals in some applications. The two are not interchangeable; you must use the size that corresponds to your fuel filter housing.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
