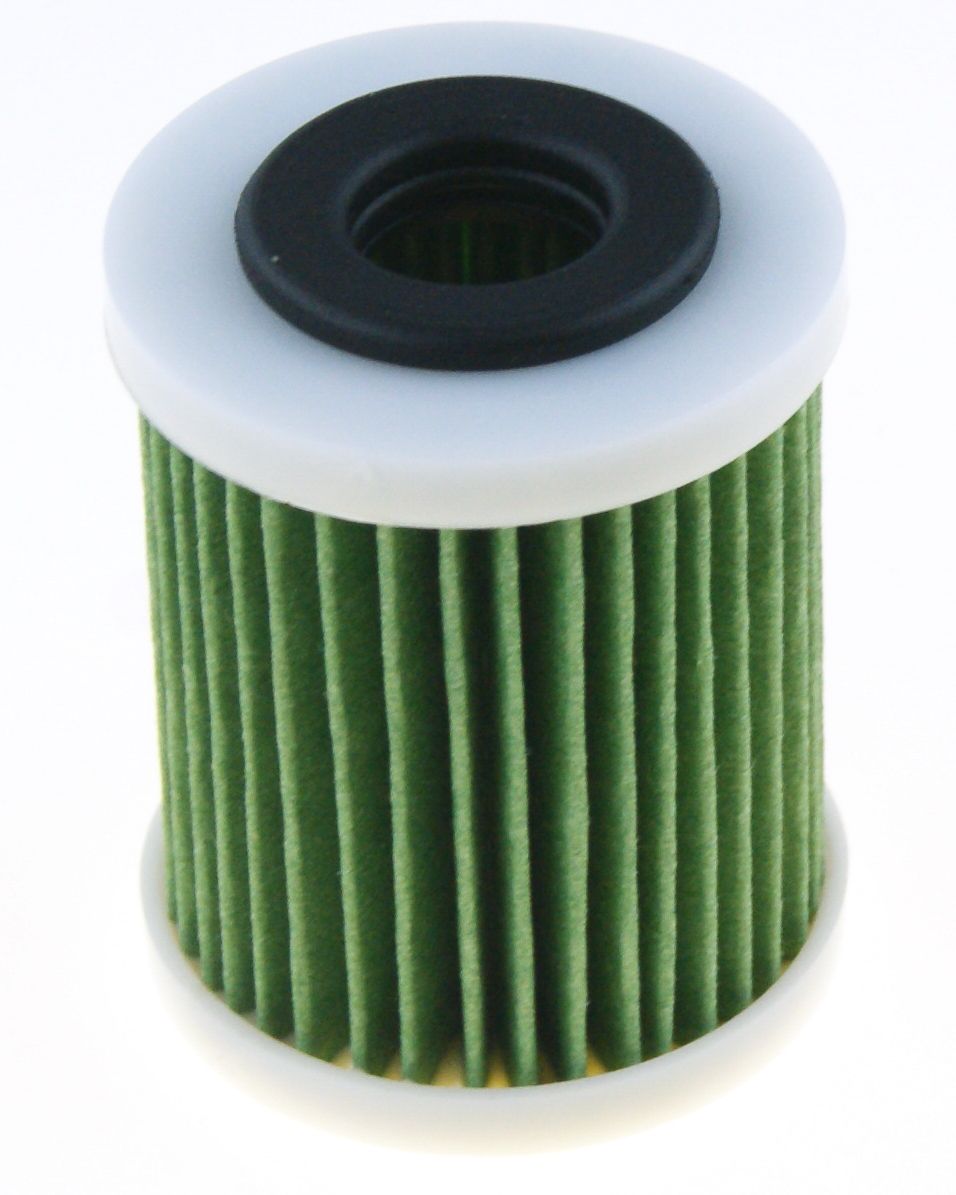

Fuel Filter – Fits Yamaha F150-F350 & Suzuki DF200-DF300 Outboards (Replaces 6P3-WS24A-00/01/02, 15412-93J10)
Fuel Filter – Fits Yamaha F150-F350 & Suzuki DF200-DF300 Outboards (Replaces 6P3-WS24A-00/01/02, 15412-93J10) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Fuel Filter – Fits Yamaha F150-F350 & Suzuki DF200-DF300 Outboa...
Product Details
This engine-mounted Fuel Filter – Fits Yamaha F150-F350 & Suzuki DF200-DF300 Outboards is designed to protect your marine engine by separating water from fuel. It is compatible with a wide range of Yamaha 4-stroke engines from 150-350 HP (2006–2011), Suzuki DF series 4-stroke outboards from 200-300 HP, and specific Mercury/Mercruiser models requiring part number 8M0154756.
It serves as a direct replacement for Yamaha 6P3-WS24A-00, 6P3-WS24A-01, 6P3-WS24A-02, 6P3-24563-00, 6P3-24563-01, Suzuki 15412-93J10, Mercury 8M0154756, and Sierra 18-79809.
- Installs directly into the OEM engine-mounted housing.
- Features high-efficiency water separating capability to prevent engine damage.
- Engineered as a primary fuel filter element for gasoline applications.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 6P3-WS24A-00 |
| Yamaha | 6P3-WS24A-01 |
| Yamaha | 6P3-WS24A-02 |
| Yamaha | 6P3-24563-00 |
| Yamaha | 6P3-24563-01 |
| Suzuki | 15412-93J10 |
| Mercury | 8M0154756 |
| Sierra | 18-79809 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
Yamaha: Fits various F, LF, VZ, Z, and LZ series models from 2006 to 2011.
Suzuki: Compatible with DF200, DF225, DF250, and DF300 models. Please verify using the OEM part number, as specific years are not available.
Mercury: Fits certain models using the 8M0154756 filter. Verify your part number before ordering.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F150TXR | 150 | 4-Stroke | 2006–2007 | 6P3-WS24A-00/01/02 | |
| Yamaha | F150TLR | 150 | 4-Stroke | 2006–2007 | 6P3-WS24A-00/01/02 | |
| Yamaha | F150TJR | 150 | 4-Stroke | 2010 | 6P3-WS24A-00/01/02 | |
| Yamaha | LF150TXR | 150 | 4-Stroke | 2006–2011 | 6P3-WS24A-00/01/02 | |
| Yamaha | VZ150TLR | 150 | 4-Stroke | 2006 | 6P3-WS24A-00/01/02 | |
| Yamaha | VZ175TLR | 175 | 4-Stroke | 2006 | 6P3-WS24A-00/01/02 | |
| Yamaha | F200TXR | 200 | 4-Stroke | 2006–2007 | 6P3-WS24A-00/01/02 | |
| Yamaha | LF200TXR | 200 | 4-Stroke | 2006–2007 | 6P3-WS24A-00/01/02 | |
| Yamaha | Z200TXR | 200 | 4-Stroke | 2006 | 6P3-WS24A-00/01/02 | |
| Yamaha | LZ200TXR | 200 | 4-Stroke | 2006 | 6P3-WS24A-00/01/02 | |
| Yamaha | VZ200TLR | 200 | 4-Stroke | 2006 | 6P3-WS24A-00/01/02 | |
| Yamaha | F225TXR | 225 | 4-Stroke | 2006–2007 | 6P3-WS24A-00/01/02 | |
| Yamaha | LF225TXR | 225 | 4-Stroke | 2006–2007 | 6P3-WS24A-00/01/02 | |
| Yamaha | VZ225TLR | 225 | 4-Stroke | 2006 | 6P3-WS24A-00/01/02 | |
| Yamaha | F250TXR | 250 | 4-Stroke | 2006–2007 | 6P3-WS24A-00/01/02 | |
| Yamaha | F250TUR | 250 | 4-Stroke | 2006–2007 | 6P3-WS24A-00/01/02 | |
| Yamaha | LF250TXR | 250 | 4-Stroke | 2006–2007 | 6P3-WS24A-00/01/02 | |
| Yamaha | LF250TUR | 250 | 4-Stroke | 2006–2007 | 6P3-WS24A-00/01/02 | |
| Yamaha | VF250LA | 250 | 4-Stroke | 2010 | 6P3-WS24A-00/01/02 | |
| Yamaha | VZ250TLR | 250 | 4-Stroke | 2006 | 6P3-WS24A-00/01/02 | |
| Yamaha | Z300TUR | 300 | 4-Stroke | 2006 | 6P3-WS24A-00/01/02 | |
| Yamaha | Z300TXR | 300 | 4-Stroke | 2006 | 6P3-WS24A-00/01/02 | |
| Yamaha | LZ300TUR | 300 | 4-Stroke | 2006 | 6P3-WS24A-00/01/02 | |
| Yamaha | LZ300TXR | 300 | 4-Stroke | 2006 | 6P3-WS24A-00/01/02 | |
| Yamaha | VZ300TLR | 300 | 4-Stroke | 2006 | 6P3-WS24A-00/01/02 | |
| Suzuki | DF200 | 200 | 4-Stroke | 15412-93J10 | ||
| Suzuki | DF225 | 225 | 4-Stroke | 15412-93J10 | ||
| Suzuki | DF250 | 250 | 4-Stroke | 15412-93J10 | ||
| Suzuki | DF300 | 300 | 4-Stroke | 15412-93J10 |
Technical Specs
- Product Type
- Primary Fuel Filter / Water Separator Element
- Installation
- Engine-Mounted
- Fuel Type
- Gasoline (Petrol)
- Connection
- Direct replacement in OEM housing
- Dimensions
- 6.5" L x 6.5" W x 5.5" H
- Weight
- 0.03 kg (1.13 oz)
- Other Attributes
- Water separating capability
- Warranty
- Varies by seller; typically 30-day return
What’s in the Box
- 1 x Fuel Filter Element
Installation Notes
- Shut off the engine and allow it to cool completely.
- Turn off the boat's fuel supply valve.
- Place a suitable container or absorbent rags beneath the fuel filter to catch any fuel spillage.
- Carefully disconnect the fuel lines connected to the filter housing. Note their orientation.
- Remove the old filter element from its housing. Take care not to spill residual fuel.
- Wipe the inside of the housing clean with a lint-free cloth, inspecting for any dirt or debris.
- Lightly lubricate the gasket on the new filter element with clean engine oil.
- Install the new filter element, ensuring it is properly seated in the housing.
- Securely reconnect the fuel lines.
- Turn the fuel supply valve back on and prime the fuel system as per your engine's service manual.
- Visually inspect for any leaks at all connection points.
- Start the engine and let it run for several minutes, checking again for any signs of fuel leaks.
Troubleshooting & FAQ
How often should I replace this fuel filter?
For optimal engine protection, it's recommended to replace your primary fuel filter every 100 hours of operation or annually, whichever comes first. This interval can be shorter if you frequently use fuel from questionable sources or notice performance issues.
What are signs of a clogged fuel filter?
Common symptoms include engine hesitation or sputtering, difficulty starting, reduced power and acceleration, and engine stalling, particularly under load. If you notice any of these, a blocked filter is a likely cause.
My engine model isn't listed, but the part number matches. Can I use it?
If your existing filter's part number is listed in our Part Number Matrix (e.g., 6P3-WS24A-01, 15412-93J10), this filter is a compatible cross-reference and should fit, even if your specific engine model year is not in the list.
Is this filter compatible with ethanol-blended gasoline?
Yes, this filter is designed for use with modern gasoline, including E10 ethanol blends. Its water-separating function is especially important with ethanol fuels, which can absorb more moisture from the air.
Is this an original OEM part?
This listing is an aftermarket replacement (not OEM). It is built to OEM-level specifications with comparable materials. Our parts are manufactured in an ISO 9002 facility and are batch-inspected for quality and consistency.
What are the shipping speed and cost?
We ship worldwide quickly—typical transit is 5–15 days. Standard shipping is free for most orders, with expedited options available at checkout where applicable.
What is the warranty and return policy?
This part is covered by a 1-year warranty against manufacturing defects under normal marine use. If you encounter an issue, please contact our support team with your order details. Returns are accepted within our standard window for items that are unused and in their original condition. See our policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement part, not an OEM component.
- Professional installation is recommended for safety and performance.
