In-Line Fuel Filter – Fits Yamaha F150 F200 F225 F250 Outboards (Re...
Product Details

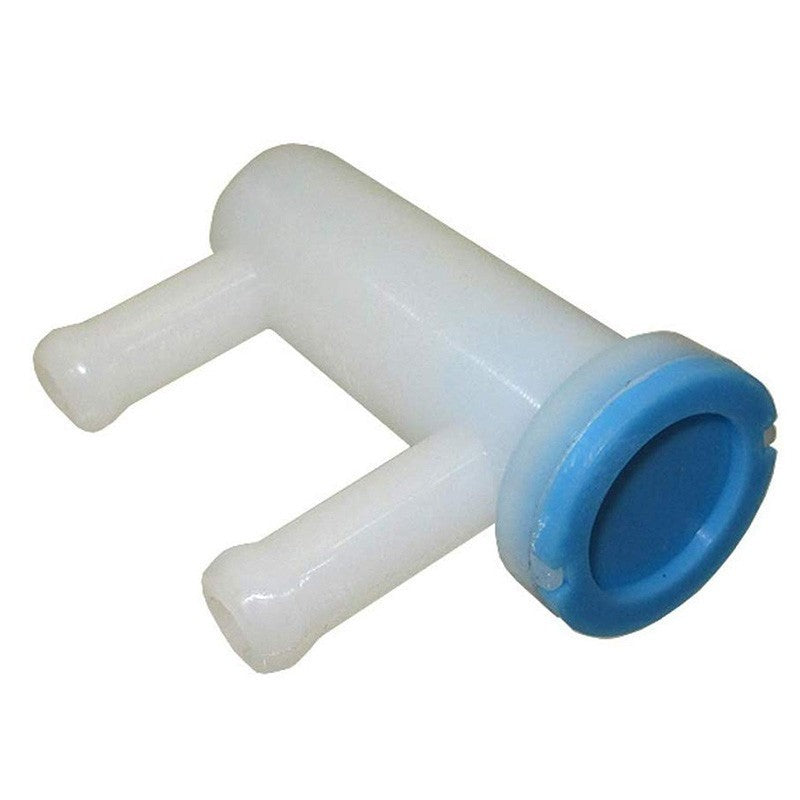

This high-efficiency In-Line Fuel Filter – Fits Yamaha F150 F200 F225 F250 Outboards is designed for Yamaha 2.8L & 4.2L 4-Stroke outboards (150–300 HP) manufactured between 2004 and 2016. It ensures clean fuel delivery for F150, F200, F225, F250, F250B models and their left-hand rotation (LF series) counterparts, protecting your engine from harmful debris.
It serves as a direct replacement for Yamaha part number 69J-24501-10-00 and Sierra 18-79905.
- Features a 10-micron filtration rating to trap impurities without impeding fuel flow.
- Installs externally in the fuel line with barbed hose connectors for a secure fit.
- Transparent housing allows for quick visual inspection of the filter element.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 69J-24501-10-00 |
| Sierra | 18-79905 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This filter fits a wide range of Yamaha 4-stroke outboards from 150 HP to 250 HP, including standard and left-hand rotation models.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F150AET1X | 150 | 4-Stroke | 2010 | 69J-24501-10-00 | |
| Yamaha | F150JA | 150 | 4-Stroke | 2012–2014 | 69J-24501-10-00 | |
| Yamaha | F150JB | 150 | 4-Stroke | 2015–2016 | 69J-24501-10-00 | |
| Yamaha | F150LA | 150 | 4-Stroke | 2012–2014 | 69J-24501-10-00 | |
| Yamaha | F150LB | 150 | 4-Stroke | 2015–2016 | 69J-24501-10-00 | |
| Yamaha | F150TJR | 150 | 4-Stroke | 2009–2011 | 69J-24501-10-00 | |
| Yamaha | F150TLR | 150 | 4-Stroke | 2005–2011 | 69J-24501-10-00 | |
| Yamaha | F150TXR | 150 | 4-Stroke | 2005–2011 | 69J-24501-10-00 | |
| Yamaha | F150XA | 150 | 4-Stroke | 2012–2014 | 69J-24501-10-00 | |
| Yamaha | F150XB | 150 | 4-Stroke | 2015–2016 | 69J-24501-10-00 | |
| Yamaha | F200TXR | 200 | 4-Stroke | 2005–2010 | 69J-24501-10-00 | |
| Yamaha | F225TLR | 225 | 4-Stroke | 2007–2009 | 69J-24501-10-00 | |
| Yamaha | F225TUR | 225 | 4-Stroke | 2005 | 69J-24501-10-00 | |
| Yamaha | F225TXR | 225 | 4-Stroke | 2005–2010 | 69J-24501-10-00 | |
| Yamaha | F250BTUR | 250 | 4-Stroke | 2009 | 69J-24501-10-00 | |
| Yamaha | F250BTXR | 250 | 4-Stroke | 2009 | 69J-24501-10-00 | |
| Yamaha | F250TUR | 250 | 4-Stroke | 2005–2010 | 69J-24501-10-00 | |
| Yamaha | F250TXR | 250 | 4-Stroke | 2005–2010 | 69J-24501-10-00 | |
| Yamaha | FL150AET1X | 150 | 4-Stroke | 2010 | 69J-24501-10-00 | |
| Yamaha | LF150TXR | 150 | 4-Stroke | 2005–2011 | 69J-24501-10-00 | Left-hand rotation |
| Yamaha | LF150XA | 150 | 4-Stroke | 2012–2014 | 69J-24501-10-00 | Left-hand rotation |
| Yamaha | LF150XB | 150 | 4-Stroke | 2015–2016 | 69J-24501-10-00 | Left-hand rotation |
| Yamaha | LF200TXR | 200 | 4-Stroke | 2005–2010 | 69J-24501-10-00 | Left-hand rotation |
| Yamaha | LF225TUR | 225 | 4-Stroke | 2005 | 69J-24501-10-00 | Left-hand rotation |
| Yamaha | LF225TXR | 225 | 4-Stroke | 2005–2010 | 69J-24501-10-00 | Left-hand rotation |
| Yamaha | LF250BTUR | 250 | 4-Stroke | 2009 | 69J-24501-10-00 | Left-hand rotation |
| Yamaha | LF250BTXR | 250 | 4-Stroke | 2009 | 69J-24501-10-00 | Left-hand rotation |
| Yamaha | LF250TUR | 250 | 4-Stroke | 2005–2010 | 69J-24501-10-00 | Left-hand rotation |
| Yamaha | LF250TXR | 250 | 4-Stroke | 2005–2010 | 69J-24501-10-00 | Left-hand rotation |
Technical Specs
- Product Type
- In-Line Fuel Filter
- Installation
- In-line, external fuel system
- Filtration Rating
- 10 micron
- Fuel Type
- Gasoline
- Connection
- Barbed hose connector
- Housing Material
- Plastic with stainless steel components
- Housing Color
- Clear/transparent
- Dimensions
- 8.0" L x 6.0" W x 6.0" H
- Warranty
- Limited lifetime warranty (Sierra replacement)
- Other Attributes
- Designed to trap impurities without compromising fuel flow
What’s in the Box
- 1 x Fuel Filter (69J-24501-10-00)
Installation Notes
- Turn off the engine and allow it to cool completely.
- Locate the existing in-line fuel filter. Place a rag or container underneath to catch any spilled fuel.
- Release any pressure from the fuel system according to the manufacturer's service manual.
- Carefully loosen the hose clamps on both sides of the old filter.
- Gently twist and pull the fuel lines off the filter fittings.
- Note the direction of the fuel flow arrow on the old filter.
- Install the new filter, ensuring the flow arrow points in the same direction (towards the engine).
- Securely reattach the fuel lines and tighten the clamps.
- Prime the fuel system if required. Check for any leaks before starting the engine.
Troubleshooting & FAQ
How do I know if this fuel filter fits my specific engine model?
This filter is designed for a range of Yamaha outboards (150-300 HP, 2004–2016). The most reliable way to confirm fitment is to check the part number (69J-24501-10-00) in your engine's service manual or by visually matching your old filter to our product photos and specifications. You can also consult the detailed compatibility table on this page.
What is the recommended replacement interval for this filter?
For optimal engine performance and protection, it is recommended to replace your in-line fuel filter every 100 hours of operation or at least once per season, whichever comes first. Refer to your Yamaha owner's manual for specific maintenance schedules.
What are the signs of a clogged or failing fuel filter?
Common symptoms include difficulty starting the engine, intermittent power loss, rough idling, stalling at low speeds, and reduced top-end performance. The transparent housing on this filter also allows for a visual check; if you see significant debris or discoloration, it's time for a replacement.
Can I clean and reuse this filter?
No, this filter is a disposable unit and is not designed to be cleaned or reused. Attempting to clean it can damage the fine filter media and may allow contaminants to pass into your engine's sensitive fuel injection system, causing costly damage.
Is this a genuine Yamaha (OEM) part?
This listing is an aftermarket replacement (not OEM). It is built to OEM-level specifications with comparable materials and manufactured in an ISO 9002 facility, where it is batch-inspected for quality and consistency.
How fast is shipping?
We ship worldwide quickly—typical transit time is 5–15 days. Standard shipping is free, and expedited options may be available at checkout depending on your location.
What is the warranty and return policy?
This part is covered by a 1-year warranty against manufacturing defects under normal use. If you encounter any issues, please contact our support team with your order details. Returns are accepted within our standard window for items that are unused and in their original condition. See our policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part before ordering. If anything differs—even if your model appears on our compatibility list—do not purchase.
- This is an aftermarket replacement component, not an OEM part. Brand names and part numbers are used for identification purposes only.
- Professional installation is recommended for safety and performance. Always follow your engine manufacturer’s service guidelines.
