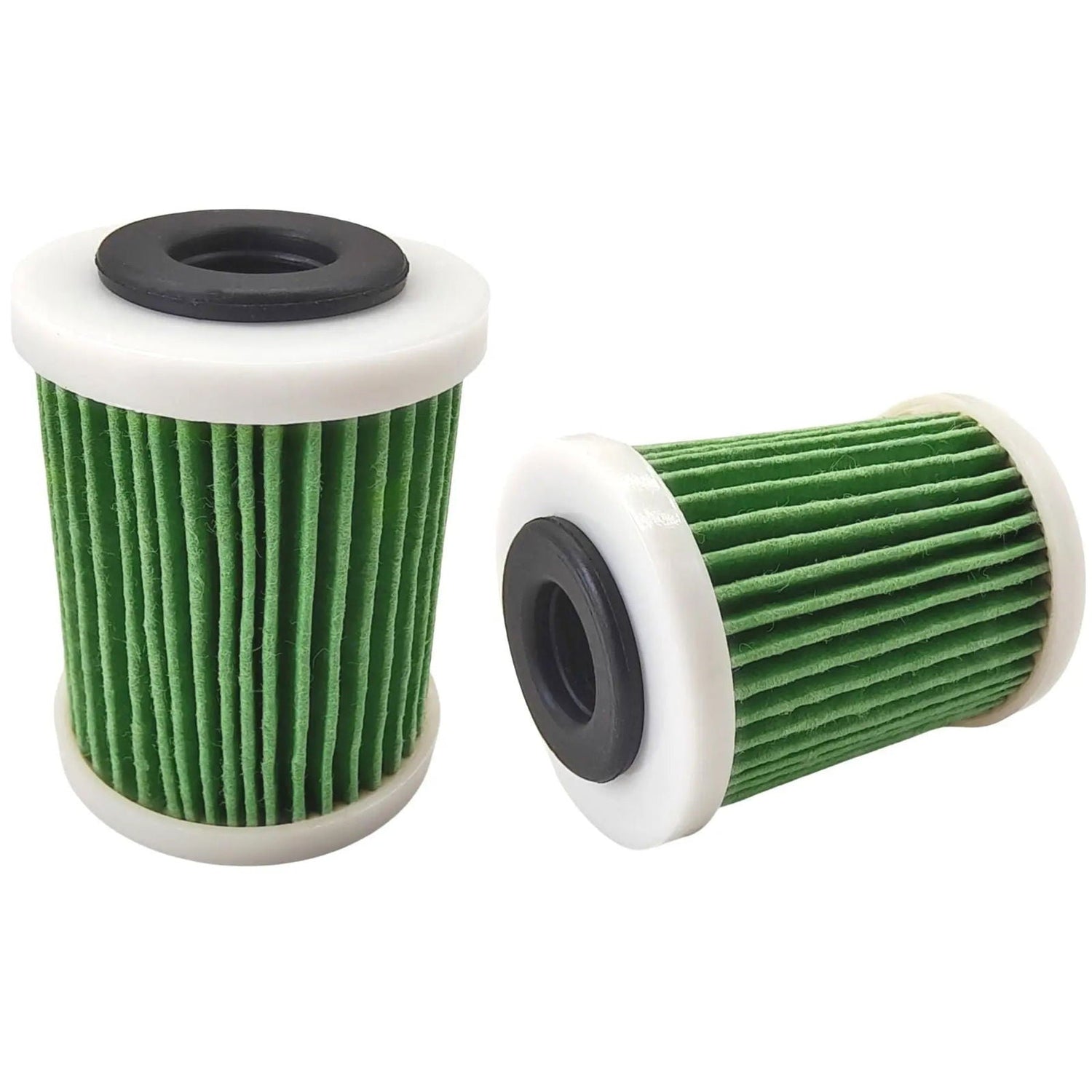

Primary Fuel Filter – Fits Yamaha Outboard 150–350 HP (Replaces 6P3-WS24A-01-00, 6P3-24563-01-00, Sierra 18-79809, Mercury/Quicksilver 8M0154756)
Primary Fuel Filter – Fits Yamaha Outboard 150–350 HP (Replaces 6P3-WS24A-01-00, 6P3-24563-01-00, Sierra 18-79809, Mercury/Quicksilver 8M0154756) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Primary Fuel Filter – Fits Yamaha Outboard 150–350 HP (Replaces 6P3...
Product Details
This Primary Fuel Filter is designed for a wide range of Yamaha outboards. It fits 4-Stroke models from 150–350 HP (F/LF Series) manufactured between 2006–2023 and 2-Stroke models from 150–300 HP (Z/VZ Series) from 2006–2019.
It serves as a direct replacement for multiple part numbers, including Yamaha 6P3-WS24A-01-00, 6P3-WS24A-02-00, 6P3-24563-01-00, Sierra 18-79809, and Quicksilver 8M0154756.
- Features a 10-micron filtration rating to effectively remove contaminants.
- Designed as an internal filter element for a direct fit into the OEM housing.
- Includes water-separating capability to protect your fuel system.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Superseded By | Notes |
|---|---|---|---|
| Yamaha | 6P3-WS24A-01-00 | 6P3-WS24A-02-00 | Original part number. |
| Yamaha | 6P3-WS24A-02-00 | Current part number. | |
| Yamaha | 6P3-24563-00-00 | 6P3-24563-01-00 | Component of the filter assembly. |
| Yamaha | 6P3-24563-01-00 | Current component part number. | |
| Sierra | 18-79809 | Aftermarket equivalent. | |
| Quicksilver | 8M0154756 | Aftermarket equivalent (Mercury Marine). |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
Yamaha 4-Stroke Outboard Models
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F150 | 150 | 4-Stroke | 2006–2023 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | F150A/F150B | 150 | 4-Stroke | 2009–2023 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | F150C | 150 | 4-Stroke | 2017–2023 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | F175 | 175 | 4-Stroke | 2014–2016 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | F200 (3.3L V6) | 200 | 4-Stroke | 2011–2023 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | F200 (Inline 4) | 200 | 4-Stroke | 2013–2023 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | F225 (3.3L V6) | 225 | 4-Stroke | 2006–2016 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | F225 (4.2L V6) | 225 | 4-Stroke | 2010–2023 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | F250 (3.3L V6) | 250 | 4-Stroke | 2006–2023 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | F250 (4.2L V6) | 250 | 4-Stroke | 2010–2023 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | F300 (4.2L V6) | 300 | 4-Stroke | 2010–2023 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | F350 (V8) | 350 | 4-Stroke | 2007–2023 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | LF150 | 150 | 4-Stroke | 2006–2016 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00, Left rotation model |
| Yamaha | LF200 | 200 | 4-Stroke | 2006–2016 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00, Left rotation model |
| Yamaha | LF225 | 225 | 4-Stroke | 2006–2016 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00, Left rotation model |
| Yamaha | LF250 | 250 | 4-Stroke | 2006–2023 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00, Left rotation model |
| Yamaha | LF300 | 300 | 4-Stroke | 2013–2023 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00, Left rotation model |
| Yamaha | LF350 | 350 | 4-Stroke | 2013–2023 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00, Left rotation model |
Yamaha 2-Stroke Outboard Models
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | VZ150 | 150 | 2-Stroke | 2006–2019 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | VZ175 | 175 | 2-Stroke | 2006–2019 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | VZ200 | 200 | 2-Stroke | 2006–2019 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | VZ225 | 225 | 2-Stroke | 2006–2016 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | VZ250 | 250 | 2-Stroke | 2006–2016 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | VZ300 | 300 | 2-Stroke | 2006–2016 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | Z200 | 200 | 2-Stroke | 2006–2016 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | Z300 | 300 | 2-Stroke | 2006–2016 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
Yamaha SHO (Super High Output) Models
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | VF150LA SHO | 150 | 4-Stroke | 2013–2023 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | VF150XA SHO | 150 | 4-Stroke | 2015–2023 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | VF175LA SHO | 175 | 4-Stroke | 2015–2016 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | VF200LA SHO | 200 | 4-Stroke | 2009–2023 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | VF225LA SHO | 225 | 4-Stroke | 2009–2023 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | VF250LA SHO | 250 | 4-Stroke | 2009–2023 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
| Yamaha | VF250XA SHO | 250 | 4-Stroke | 2015–2023 | 6P3-WS24A-01-00 | Superseded by 6P3-WS24A-02-00 |
Technical Specs
- Product Type
- Primary Fuel Filter
- Installation
- In-Line
- Filtration Rating
- 10 microns
- Fuel Type
- Gasoline
- Connection
- Direct fit with OEM housing
- Housing Material
- ABS Plastic
- Housing Color
- Green
- Fitting Type
- Internal filter element (requires OEM housing)
- Other Attributes
- Water separating capability
What’s in the Box
- 1 x Primary Fuel Filter Element (6P3-WS24A-01-00 / 6P3-WS24A-02-00)
Installation Notes
- Turn off the engine and disconnect the battery.
- Locate the fuel filter housing on your engine.
- Place a rag or container underneath to catch any spilled fuel.
- Carefully unscrew the filter cup or bowl from the housing.
- Remove the old filter element and any O-rings or gaskets.
- Clean the inside of the housing and bowl, ensuring no debris remains.
- Install the new filter element, making sure it is seated correctly.
- Lightly lubricate and install necessary O-rings or gaskets (if not reusing).
- Reinstall the filter bowl and tighten it to the manufacturer's specification. Do not overtighten.
- Reconnect the battery.
- Prime the fuel system by squeezing the primer bulb until firm.
- Start the engine and check for any leaks around the filter housing.
Troubleshooting & FAQ
How do I know if this filter fits my Yamaha engine?
This filter fits most Yamaha 4-Stroke (150-350 HP, 2006–2023) and 2-Stroke (150-300 HP, 2006–2019) outboards. Please verify your exact model and year against the compatibility tables on this page.
What is the difference between 6P3-WS24A-01-00 and 6P3-WS24A-02-00?
The part number 6P3-WS24A-02-00 is the superseded, or updated, version of 6P3-WS24A-01-00. They are functionally identical and fully interchangeable.
How often should I replace this fuel filter?
For optimal engine performance and protection, it is recommended to replace your primary fuel filter every 100 hours of operation or annually, whichever comes first. Refer to your owner's manual for specific service intervals.
What are the signs of a clogged or failing fuel filter?
Common symptoms include engine hesitation, loss of power, stalling (especially at low speeds), and difficulty starting. If you notice these issues, a clogged fuel filter is a likely cause.
Is the O-ring included with this filter?
This listing is for the filter element only. The corresponding O-ring or gasket for the filter bowl is typically sold separately or should be inspected and reused if in good condition.
What does a 10-micron rating mean?
It means the filter is designed to capture particles as small as 10 micrometers, preventing fine debris, water, and other contaminants from reaching your engine's sensitive fuel injection system.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
