Fuel Pump Assembly – Fits Yamaha 6HP-9.9HP 4-Stroke (Replaces 68T-2...
Product Details

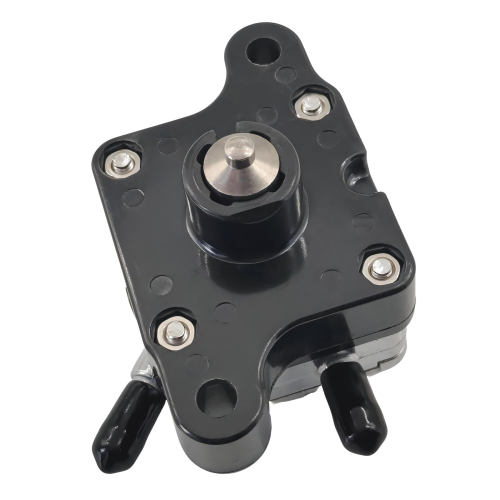

This direct-fit Fuel Pump Assembly – Fits Yamaha 6HP-9.9HP 4-Stroke is engineered for reliable performance in compatible Yamaha outboard motors. It is designed for Yamaha 6HP 4-Stroke (2001–2005), 8HP 4-Stroke (2001–2021), and 9.9HP 4-Stroke (2008–2021) engines, ensuring proper fuel delivery and engine function.
This assembly serves as a direct cross-reference for Yamaha part numbers 68T-24410-00-00 and 68T-24410-01-00, and also interchanges with Sierra 18-7387 and JLM Marine 68T2441001.
- Features a simple bolt-on design for straightforward installation.
- Built as a mechanical diaphragm-style pump suitable for the marine environment.
- Comes as one complete, ready-to-install fuel pump assembly.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 68T-24410-00-00 |
| Yamaha | 68T-24410-01-00 |
| JLM Marine | 68T2441001 |
| Sierra | 18-7387 |
| Generic | F8-05070000 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This pump is designed specifically for the following Yamaha outboard models.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | F6MLHZ/F6MSHZ | 6 | 4-Stroke | 2001 | 68T-24410-00-00 | FUEL PUMP |
| Yamaha | F6MSHA/F6MLHA | 6 | 4-Stroke | 2002 | 68T-24410-00-00 | FUEL PUMP 1 |
| Yamaha | F6MSHB/F6MLHB | 6 | 4-Stroke | 2003 | 68T-24410-00-00 | FUEL PUMP 1 |
| Yamaha | F6MSHC/F6MLHC | 6 | 4-Stroke | 2004 | 68T-24410-00-00 | FUEL PUMP 1 |
| Yamaha | F6MLH/F6MSH/F6MLHD/F6MSHD | 6 | 4-Stroke | 2005 | 68T-24410-00-00 | FUEL PUMP 1 |
| Yamaha | F8MSHZ/F8MLHZ | 8 | 4-Stroke | 2001 | 68T-24410-00-00 | FUEL PUMP |
| Yamaha | T8PLRZ/T8PLHZ/T8PXHZ/T8PXRZ | 8 | 4-Stroke | 2001 | 68T-24410-00-00 | FUEL PUMP 1 |
| Yamaha | F8MLHA/F8MSHA/T8PLRA/T8PLHA/T8PXHA/T8PXRA/T8EXHA/T8ELHA | 8 | 4-Stroke | 2002 | 68T-24410-00-00 | FUEL PUMP 1 |
| Yamaha | F8MLHB/F8MSHB/T8PLHB/T8PLRB/T8PXHB/T8PXRB/T8EXHB/T8ELHB | 8 | 4-Stroke | 2003 | 68T-24410-00-00 | FUEL PUMP 1 |
| Yamaha | F8MLHC/F8MSHC/T8PLHC/T8PLRC/T8PXHC/T8PXRC/T8EXHC/T8ELHC | 8 | 4-Stroke | 2004 | 68T-24410-00-00 | FUEL PUMP 1 |
| Yamaha | F8MLH/F8MSH/F8MLHD/F8MSHD/T8PLH/T8PLR/T8PXH/T8PXR/T8EXH/T8ELH/T8PLHD/T8PLRD/T8PXHD/T8PXRD/T8EXHD/T8ELHD | 8 | 4-Stroke | 2005 | 68T-24410-00-00 | FUEL PUMP 1 |
| Yamaha | F8LMHA | 8 | 4-Stroke | 2011–2014 | 68T-24410-01-00 | FUEL PUMP |
| Yamaha | F8LMHB | 8 | 4-Stroke | 2015–2021 | 68T-24410-01-00 | FUEL PUMP |
| Yamaha | F8SMHA | 8 | 4-Stroke | 2012–2013 | 68T-24410-01-00 | FUEL PUMP |
| Yamaha | F8SMHB | 8 | 4-Stroke | 2015–2021 | 68T-24410-01-00 | FUEL PUMP |
| Yamaha | T9.9LPHA/T9.9LPA/F9.9LMHA/F9.9LEA/T9.9XPHA/T9.9LEHA/F9.9SMHA/T9.9XPA | 9.9 | 4-Stroke | 2011 | 68T-24410-01-00 | FUEL PUMP |
| Yamaha | T9.9LEHA/F9.9LMHA/T9.9LPHA/T9.9XPHA/T9.9XEHA/F9.9LEA/T9.9XPA | 9.9 | 4-Stroke | 2012 | 68T-24410-01-00 | FUEL PUMP |
| Yamaha | F9.9SMHB/T9.9LPHB/T9.9LPB/T9.9XEHB/F9.9LMHB/T9.9LEHB/F9.9LEHB/F9.9LEB | 9.9 | 4-Stroke | 2013 | 68T-24410-01-00 | FUEL PUMP |
| Yamaha | F9.9LMHB/F9.9LEHB/T9.9XEHB/F9.9SEHB/T9.9XPHB/T9.9XPB/F9.9SMHB/T9.9LPHB/T9.9LEHB/T9.9LPB/F9.9LEB | 9.9 | 4-Stroke | 2014 | 68T-24410-01-00 | FUEL PUMP |
| Yamaha | T9.9XEHB/F9.9LMHB/T9.9XPB/F9.9SMHB/F9.9LEB/T9.9LEHB/T9.9LPHB/T9.9LPB/T9.9XPHB | 9.9 | 4-Stroke | 2015 | 68T-24410-01-00 | FUEL PUMP |
| Yamaha | T9.9XPHB/T9.9XPB/T9.9LPHB/F9.9LEB/F9.9SMHB/T9.9LPB/T9.9XEHB | 9.9 | 4-Stroke | 2016 | 68T-24410-01-00 | FUEL PUMP |
| Yamaha | T9.9XWHB/F9.9LEB/F9.9LMHB/T9.9LPB/T9.9XPB/T9.9XPHB | 9.9 | 4-Stroke | 2017 | 68T-24410-01-00 | FUEL PUMP |
| Yamaha | T9.9XWHB/T9.9XPHB/T9.9XPB/T9.9LPB/T9.9LPHB/F9.9LEB/F9.9SMHB | 9.9 | 4-Stroke | 2018 | 68T-24410-01-00 | FUEL PUMP |
| Yamaha | T9.9XPHB/F9.9SMHB/T9.9LWHB/F9.9LEB/F9.9LMHB/T9.9LPHB | 9.9 | 4-Stroke | 2019 | 68T-24410-01-00 | FUEL PUMP |
| Yamaha | F9.9LEB/T9.9LWHB/T9.9XPB/F9.9LMHB/T9.9LPHB/T9.9XPHB/T9.9XWHB/F9.9SMHB | 9.9 | 4-Stroke | 2020 | 68T-24410-01-00 | FUEL PUMP |
| Yamaha | T9.9XWHB/F9.9LMHB/F9.9SMHB/F9.9LEB/T9.9LWHB | 9.9 | 4-Stroke | 2021 | 68T-24410-01-00 | FUEL PUMP |
Technical Specs
- Product Type
- Fuel Pump Assembly
- Installation
- Direct bolt-on replacement
- Fuel Type
- Gasoline
- Connection
- Hose barb fittings
- Housing Material
- Plastic/Metal composite
- Housing Color
- Black/Silver
- Fitting Type
- Hose barb
- Other Technical Attributes
- Mechanical diaphragm-style pump
- Warranty
- 180 days (JLM Marine)
What’s in the Box
- 1 x Fuel Pump Assembly (replaces 68T-24410-00-00/68T-24410-01-00)
Installation Notes
- Before starting, ensure the engine is off and cool. Disconnect the battery's negative terminal for safety.
- Relieve any pressure in the fuel system by following your engine manufacturer's service manual procedures. Place rags around the fuel fittings to catch any spillage.
- Carefully disconnect the fuel inlet and outlet lines from the old fuel pump. Note their orientation.
- Unbolt and remove the old fuel pump assembly from the engine block. Clean the mounting surface of any old gasket material or debris.
- Mount the new fuel pump assembly, ensuring it is correctly aligned. Tighten the mounting bolts to the manufacturer's specified torque.
- Reconnect the fuel inlet and outlet lines to the correct fittings on the new pump. Secure any clamps.
- Reconnect the battery. Prime the fuel system according to your engine's manual (if required) and check thoroughly for any fuel leaks before starting the engine.
Troubleshooting & FAQ
How do I know if my fuel pump is failing?
Common signs of a failing fuel pump include engine hesitation or bogging down, sputtering at high speeds, difficulty starting, rough idling, or a noticeable loss of power during acceleration.
Is this a direct fit for my Yamaha F8MLHA?
Yes, this pump is compatible with the Yamaha F8MLHA (2002 model year) and directly replaces the original OEM part 68T-24410-00-00. Always double-check your model and year against our compatibility table before ordering.
What is the difference between part 68T-24410-00-00 and 68T-24410-01-00?
The part number 68T-24410-01-00 is a superseding part number for 68T-24410-00-00, meaning it is the newer, updated version from the manufacturer. They are functionally identical and completely interchangeable. This aftermarket pump replaces both versions.
Does this pump assembly come with new gaskets?
This fuel pump is supplied as a complete assembly. It is designed to install directly without requiring a separate gasket in most applications, but we always recommend consulting your engine's official service manual for specific requirements during installation.
What is the recommended replacement interval for this pump?
There is no fixed replacement interval for mechanical fuel pumps. They are typically replaced only when they fail or show signs of wear. To extend its lifespan, use high-quality fuel and ensure your fuel filters are changed regularly.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
