JLM MARINE 6E52441010 Fuel Pump for Yamaha 2 Stroke 115 130 140 150 175 200 225 250 300 HP Outboard Models 6E5-24410-02 18-7349
JLM MARINE 6E52441010 Fuel Pump for Yamaha 2 Stroke 115 130 140 150 175 200 225 250 300 HP Outboard Models 6E5-24410-02 18-7349 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
JLM MARINE 6E52441010 Fuel Pump for Yamaha 2 Stroke 115 130 140 150...
Product Details

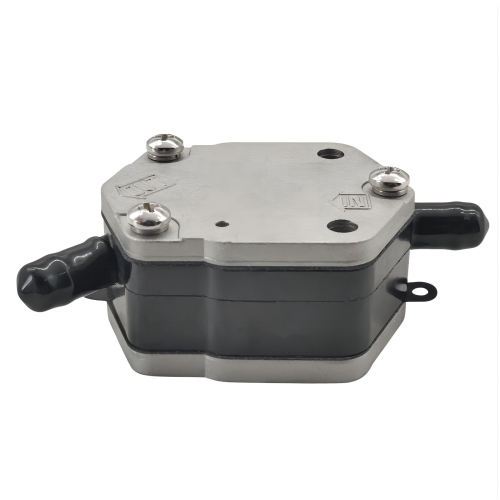

This low-pressure mechanical Fuel Pump Assembly – Fits Yamaha 115-300 HP 2-Stroke Outboards (Replaces 6E5-24410-03-00) and is designed for a wide range of V4 and V6 engines manufactured between 1984 and 2004. Engineered as an original equipment-style replacement, it ensures exact fitment and proper fuel flow rate for reliable performance.
It serves as a direct interchange for Yamaha part numbers 6E5-24410-00-00, 6E5-24410-01-00, 6E5-24410-02-00, 6E5-24410-03-00, 6E5-24410-04-00, 6E5-24410-10-00, and Sierra 18-7349.
- Simple bolt-on installation with no modifications required.
- Constructed with a durable aluminum housing for corrosion resistance.
- Includes one complete fuel pump assembly for a full replacement.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Yamaha | 6E5-24410-00-00 |
| Yamaha | 6E5-24410-01-00 |
| Yamaha | 6E5-24410-02-00 |
| Yamaha | 6E5-24410-03-00 |
| Yamaha | 6E5-24410-04-00 |
| Yamaha | 6E5-24410-10-00 |
| Sierra | 18-7349 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This fuel pump is compatible with a broad range of Yamaha 2-stroke outboard motors, including various V4, V6, Excel, and Special models from 115 HP to 300 HP.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Yamaha | 115ETLD, 115ETLDA, 115ETLD-JD | 115 | 2-Stroke | 1984–1990 | 6E5-24410-03-00 | |
| Yamaha | 115ETLF, 115ETLF-JD, 115ETLG, 115ETLG-JD | 115 | 2-Stroke | 1987–1989 | 6E5-24410-03-00 | |
| Yamaha | 115ETLH, 115ETLH-JD, 115ETLJ, 115ETLK, 115ETLN | 115 | 2-Stroke | 1984–1987 | 6E5-24410-03-00 | |
| Yamaha | 115ETXD, 115ETXDA, 115ETXF, 115ETXG, 115ETXH, 115ETXJ, 115ETXK, 115ETXN | 115 | 2-Stroke | 1984–1990 | 6E5-24410-03-00 | |
| Yamaha | 115TJRP through 115TJRX | 115 | 2-Stroke | 1991–1999 | 6E5-24410-03-00 | |
| Yamaha | 115TLRA through 115TLRC | 115 | 2-Stroke | 2002–2004 | 6E5-24410-03-00 | |
| Yamaha | 115TLRP through 115TLRW | 115 | 2-Stroke | 1991–1998 | 6E5-24410-03-00 | |
| Yamaha | 115TXRA through 115TXRC | 115 | 2-Stroke | 2002–2004 | 6E5-24410-03-00 | |
| Yamaha | 115TXRP through 115TXRT | 115 | 2-Stroke | 1991–1995 | 6E5-24410-03-00 | |
| Yamaha | 130ETLD, 130ETLDA, 130ETLF, 130ETLG | 130 | 2-Stroke | 1988–1990 | 6E5-24410-03-00 | |
| Yamaha | 130ETXD, 130ETXDA, 130ETXF, 130ETXG | 130 | 2-Stroke | 1988–1990 | 6E5-24410-03-00 | |
| Yamaha | 130TLRA through 130TLRC | 130 | 2-Stroke | 2002–2004 | 6E5-24410-03-00 | |
| Yamaha | 130TLRP through 130TLRX | 130 | 2-Stroke | 1991–1999 | 6E5-24410-03-00 | |
| Yamaha | 130TXRA through 130TXRC | 130 | 2-Stroke | 2002–2004 | 6E5-24410-03-00 | |
| Yamaha | 130TXRP through 130TXRT | 130 | 2-Stroke | 1991–1995 | 6E5-24410-03-00 | |
| Yamaha | 150ETLD, 150ETLDA, 150ETLF, 150ETLH, 150ETLJ, 150ETLK, 150ETLN | 150 | 2-Stroke | 1984–1990 | 6E5-24410-03-00 | |
| Yamaha | 150ETXD, 150ETXDA, 150ETXF, 150ETXH, 150ETXJ, 150ETXK, 150ETXN | 150 | 2-Stroke | 1984–1990 | 6E5-24410-03-00 | |
| Yamaha | 150TJRS through 150TJRX | 150 | 2-Stroke | 1994–1999 | 6E5-24410-03-00 | |
| Yamaha | 150TLRP through 150TLRW | 150 | 2-Stroke | 1991–1998 | 6E5-24410-03-00 | |
| Yamaha | 150TXRA through 150TXRC | 150 | 2-Stroke | 2002–2004 | 6E5-24410-03-00 | |
| Yamaha | 150TXRP through 150TXRT | 150 | 2-Stroke | 1991–1995 | 6E5-24410-03-00 | |
| Yamaha | 175ETLD, 175ETLDA, 175ETLF, 175ETLH, 175ETLJ, 175ETLK, 175ETLN | 175 | 2-Stroke | 1984–1990 | 6E5-24410-03-00 | |
| Yamaha | 175ETXD, 175ETXDA, 175ETXF, 175ETXH, 175ETXJ, 175ETXK, 175ETXN | 175 | 2-Stroke | 1984–1990 | 6E5-24410-03-00 | |
| Yamaha | 175TLRP through 175TLRT | 175 | 2-Stroke | 1991–1995 | 6E5-24410-03-00 | |
| Yamaha | 175TXRP through 175TXRT | 175 | 2-Stroke | 1991–1995 | 6E5-24410-03-00 | |
| Yamaha | 200ETLD, 200ETLDA, 200ETLD-JD, 200ETLF, 200ETLF-JD | 200 | 2-Stroke | 1987–1990 | 6E5-24410-03-00 | |
| Yamaha | 200ETLH, 200ETLH-JD, 200ETLJ, 200ETLK, 200ETLN | 200 | 2-Stroke | 1984–1987 | 6E5-24410-03-00 | |
| Yamaha | 200ETXD, 200ETXDA, 200ETXF, 200ETXH, 200ETXJ, 200ETXK, 200ETXN | 200 | 2-Stroke | 1984–1990 | 6E5-24410-03-00 | |
| Yamaha | 200TJRP through 200TJRT | 200 | 2-Stroke | 1991–1995 | 6E5-24410-03-00 | |
| Yamaha | 200TLRP through 200TLRW | 200 | 2-Stroke | 1991–1998 | 6E5-24410-03-00 | |
| Yamaha | 200TXRP through 200TXRT | 200 | 2-Stroke | 1991–1995 | 6E5-24410-03-00 | |
| Yamaha | 225ETLD, 225ETLDA, 225ETXD, 225ETXDA | 225 | 2-Stroke | 1990 | 6E5-24410-03-00 | |
| Yamaha | 225TLRP through 225TLRV | 225 | 2-Stroke | 1991–1997 | 6E5-24410-03-00 | |
| Yamaha | 225TURT | 225 | 2-Stroke | 1995 | 6E5-24410-03-00 | |
| Yamaha | 225TXRP through 225TXRT | 225 | 2-Stroke | 1991–1995 | 6E5-24410-03-00 | |
| Yamaha | 250ETXD, 250ETXDA | 250 | 2-Stroke | 1990 | 6E5-24410-03-00 | |
| Yamaha | 250TURP through 250TURT | 250 | 2-Stroke | 1991–1995 | 6E5-24410-03-00 | |
| Yamaha | 250TXRP through 250TXRT | 250 | 2-Stroke | 1991–1995 | 6E5-24410-03-00 | |
| Yamaha | V6 Excel models (V6EXCELL) | 150-250 | 2-Stroke | 1987–1989 | 6E5-24410-03-00 | |
| Yamaha | V6 Special models (V6SPECIALL) | 150-250 | 2-Stroke | 1984–1986 | 6E5-24410-03-00 | |
| Yamaha | Various Z, LZ, VZ models | 150-300 | 2-Stroke | 2002–2004 | 6E5-24410-03-00 | Including Z150, Z175, Z200, Z250, Z300 series |
Technical Specs
- Product Type
- Low-pressure mechanical fuel pump assembly
- Installation
- Direct bolt-on replacement
- Fuel Type
- Gasoline
- Connection
- Threaded flange mount with hose barb connectors
- Housing Material
- Aluminum
- Housing Color
- Silver/metallic with black components
- Weight
- 13.4 oz (380 g)
- Fitting Type
- Flange mount
- Other Technical Attributes
- Original equipment design for exact fit and proper fuel flow rate
What’s in the Box
- 1 x Fuel Pump Assembly (Replaces 6E5-24410-03-00)
Installation Notes
- Disconnect the battery and ensure the engine is cool. Relieve any pressure in the fuel system according to your service manual.
- Place rags or a container under the old fuel pump to catch any spilled fuel.
- Carefully disconnect the fuel inlet and outlet lines from the pump. Note their orientation.
- Unbolt and remove the old fuel pump assembly from the engine block.
- Clean the mounting surface to ensure a proper seal with the new pump.
- Mount the new fuel pump assembly, ensuring it is correctly seated. Tighten the mounting bolts to the manufacturer's specified torque.
- Reconnect the fuel lines to the correct inlet and outlet ports and secure them with clamps.
- Reconnect the battery. Prime the fuel system as per your engine’s specifications.
- Start the engine and carefully inspect the pump and all connections for any signs of fuel leaks.
Troubleshooting & FAQ
How do I know if my fuel pump is failing?
Common signs of a failing fuel pump include the engine bogging down at high speeds, difficulty starting, engine sputtering, or a complete loss of power. A visual inspection may also reveal fuel leaks from the pump housing or fittings.
Is this a direct replacement for my original Yamaha pump?
Yes, this pump is designed to be a direct bolt-on replacement that matches the fit and function of the original OEM part. Cross-reference your part number with the numbers in the Part Number Matrix to ensure compatibility.
Will this pump fit my V4 engine even though the list shows many V6 models?
Yes, this fuel pump is designed for a wide range of Yamaha 2-stroke outboards, including both V4 and V6 configurations from 115 HP up to 300 HP. Check the compatibility table for your specific model and year.
What maintenance does this fuel pump require?
This mechanical fuel pump is a self-contained unit and does not require regular maintenance. However, ensuring your fuel tank is clean and using a quality fuel filter can prolong its life by preventing debris from entering the pump.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
