Product Details

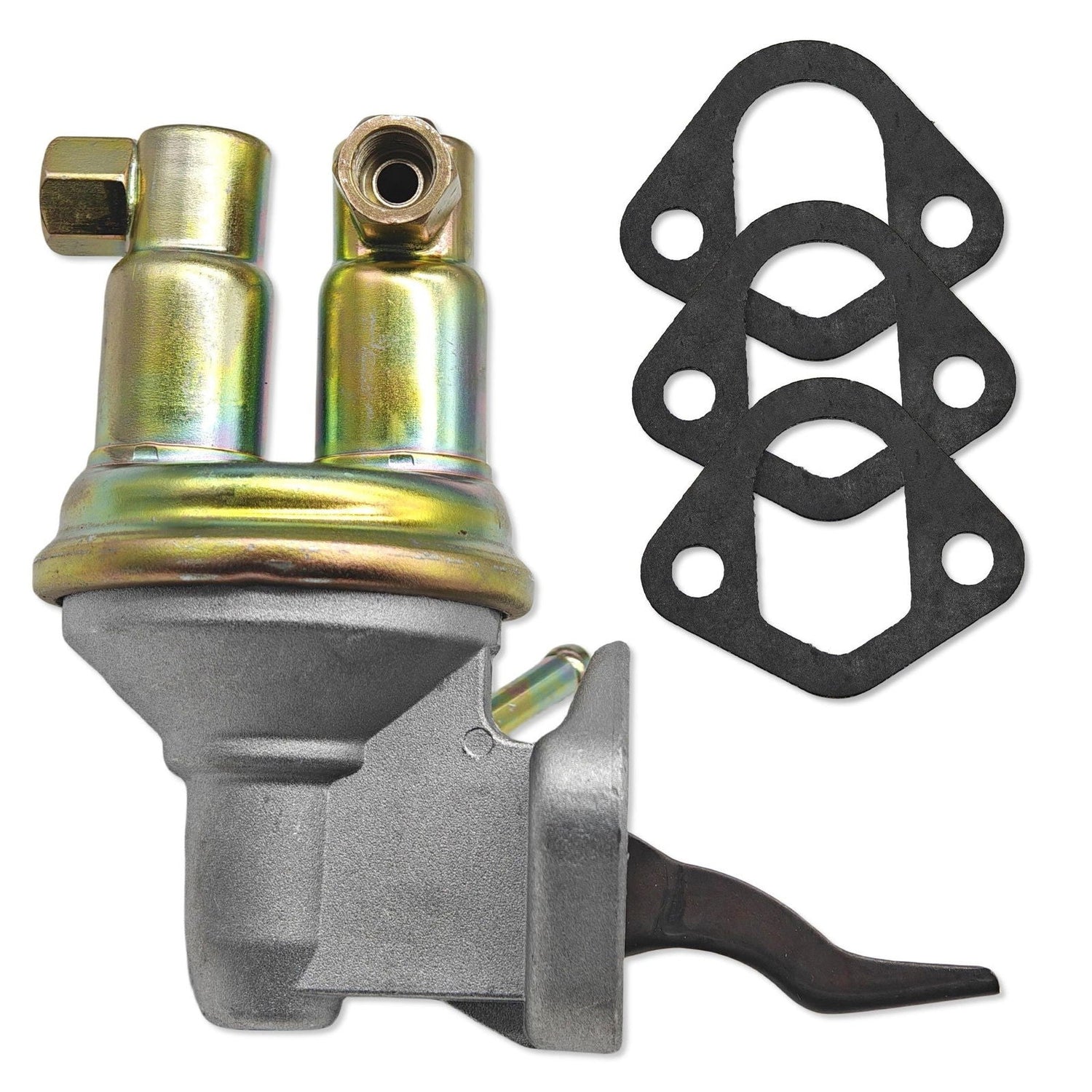

This aftermarket Mechanical Fuel Pump is a high-quality replacement designed for a range of Volvo Penta 4-cylinder engines, including the AQ120B, AQ125, AQ131, AQ140, AQ145, AQ151, AQ171, 230, 250, and 251 series. It ensures reliable fuel delivery for consistent engine performance.
The pump serves as a direct interchange for Volvo Penta part numbers 841161, 841161-3, 867464, and 867465, along with aftermarket cross-references from Sierra (18-7286), GLM (77011), and Mallory (9-35425).
- Installs directly onto the engine block.
- Features a provision for the vent tube to the carburetor for safety.
- Includes a new mounting gasket for a complete and proper seal.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.
| Brand | Part Number |
|---|---|
| Volvo Penta | 841161 |
| Volvo Penta | 841161-3 |
| Volvo Penta | 867464 |
| Volvo Penta | 867465 |
| Sierra | 18-7286 |
| Sierra | 187286 |
| GLM | 77011 |
| Mallory | 9-35425 |
Engine & Model Compatibility
Confirm your engine model in the table below. This pump fits a wide range of Volvo Penta gasoline engines.
| Brand | Model | Rated HP | Stroke | OEM Part No. |
|---|---|---|---|---|
| Volvo Penta | AQ120B | 120 | 4-Stroke | 841161 |
| Volvo Penta | AQ125A, AQ125B | 125 | 4-Stroke | 841161 |
| Volvo Penta | AQ131A, AQ131B, AQ131C, AQ131D | 131 | 4-Stroke | 841161 |
| Volvo Penta | AQ140A | 140 | 4-Stroke | 841161 |
| Volvo Penta | AQ145A, AQ145B | 145 | 4-Stroke | 841161 |
| Volvo Penta | AQ151A, AQ151B, AQ151C | 151 | 4-Stroke | 841161 |
| Volvo Penta | AQ171A, AQ171C | 171 | 4-Stroke | 841161 |
| Volvo Penta | 230A, 230B | 230 | 4-Stroke | 841161 |
| Volvo Penta | 250A, 250B | 250 | 4-Stroke | 841161 |
| Volvo Penta | 251A | 251 | 4-Stroke | 841161 |
| Volvo Penta | BB140A | 140 | 4-Stroke | 841161 |
| Volvo Penta | BB145A | 145 | 4-Stroke | 841161 |
Technical Specs
- Product Type
- Mechanical Fuel Pump
- Installation
- Engine Block Mounted
- Fuel Type
- Gasoline
- Connection
- Threaded (NPT)
- Housing Material
- Metal
- Housing Color
- Silver/Chrome
- Weight
- 189g (0.42 lb)
- Fitting Type
- Threaded
- Other Technical Attributes
- Includes provision for vent tube to carburetor
- Warranty
- Manufacturer dependent (typically 1 year)
What’s in the Box
- 1 x Fuel Pump (841161)
- 1 x Mounting Gasket
Installation Notes
- Disconnect the vessel's battery and shut off the fuel supply valve.
- Place absorbent rags or a container below the fuel pump to catch any spillage.
- Carefully disconnect the inlet and outlet fuel lines from the pump. Note their orientation.
- Unbolt the two mounting bolts securing the old pump to the engine block.
- Remove the old pump and the old gasket. Thoroughly clean the engine block mounting surface.
- Position the new mounting gasket on the engine block.
- Mount the new fuel pump, ensuring the actuator arm is correctly aligned with the camshaft lobe.
- Hand-tighten the mounting bolts, then torque them to the manufacturer's specification.
- Reconnect the inlet and outlet fuel lines to the correct ports.
- Reconnect the battery, open the fuel valve, and prime the system if necessary.
- Start the engine and carefully inspect for any fuel leaks around the pump and fittings.
Troubleshooting & FAQ
How do I know if my mechanical fuel pump is failing?
Common signs of a failing fuel pump include difficulty starting, engine sputtering at high speeds, stalling, power loss during acceleration, or a noticeable decrease in fuel efficiency. A visual inspection may also reveal fuel leaking from the pump housing.
What is the purpose of the vent tube connection?
The vent tube is a critical safety feature. If the pump's internal diaphragm ruptures, the vent line safely routes any leaking gasoline back to the carburetor, preventing it from accumulating in the engine bay or bilge where it could create a fire hazard.
Is this pump compatible with modern ethanol-blended fuels?
This aftermarket pump is designed for use with standard marine gasoline. While it is built with materials resistant to common fuel additives, always consult your engine's manual and fuel supplier for compatibility with high-concentration ethanol (E15/E85) fuels.
Do I need to apply sealant to the gasket?
No, the included gasket is designed to create a seal on its own. Applying sealant can sometimes cause the gasket to slip or break down prematurely. Always install it on a clean, dry mounting surface.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
