Cylinder Head Gasket – Fits Suzuki DT90/DT100 HP V4 Outboards (Replaces 11141-87E90)

$39.99 $63.00

Shipping calculated at checkout.

Cylinder Head Gasket – Fits Suzuki DT90/DT100 HP V4 Outboards (Replaces 11141-87E90) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

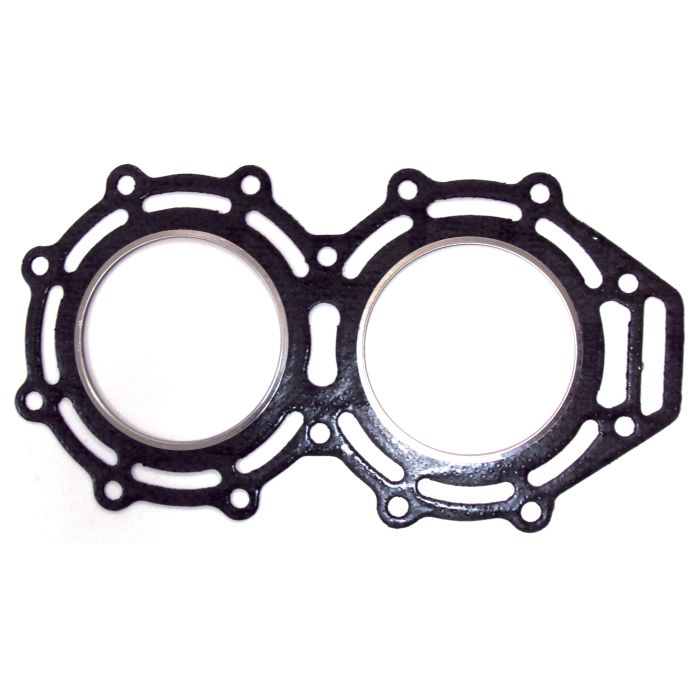

This Cylinder Head Gasket – Fits Suzuki DT90/DT100 HP V4 Outboards (Replaces 11141-87E90) is designed for a precise seal on Suzuki 90–100 HP, 2-stroke, V4 outboard engines manufactured between 1989 and 2000. It's engineered from a durable composite material to withstand the harsh marine environment and ensure reliable engine performance.

It serves as a direct replacement for Suzuki part numbers 11141-87E90, 11141-87E20, and 11141-87E10, and is interchangeable with Sierra 18-3822 and GLM 36220.

Installation Method: Direct fit
Environment: Designed for gasoline (petrol) engines
Block Configuration: For V4 engines

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number	Notes
Suzuki	11141-87E90	Supersedes 11141-87E20
Suzuki	11141-87E20	Supersedes 11141-87E10
Suzuki	11141-87E10	Original part number
Sierra	18-3822	Aftermarket equivalent
GLM	36220	Aftermarket equivalent

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This gasket is compatible with a range of Suzuki DT90 and DT100 series 2-stroke V4 outboards from 1989–2000.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.
Suzuki	DT90TCLK	90	2-Stroke	1989	11141-87E90
Suzuki	DT90TCXK	90	2-Stroke	1989	11141-87E90
Suzuki	DT90TCLL	90	2-Stroke	1990	11141-87E90
Suzuki	DT90TCXL	90	2-Stroke	1990	11141-87E90
Suzuki	DT90TCLM	90	2-Stroke	1991	11141-87E90
Suzuki	DT90TCLN	90	2-Stroke	1992	11141-87E90
Suzuki	DT90TCLP	90	2-Stroke	1993	11141-87E90
Suzuki	DT90TCLR	90	2-Stroke	1994	11141-87E90
Suzuki	DT90TCLS	90	2-Stroke	1995	11141-87E90
Suzuki	DT90TCLT	90	2-Stroke	1996	11141-87E90
Suzuki	DT90TCLV	90	2-Stroke	1997	11141-87E90
Suzuki	DT100SFK	100	2-Stroke	1989	11141-87E90
Suzuki	DT100TCLK	100	2-Stroke	1989	11141-87E90
Suzuki	DT100TCXK	100	2-Stroke	1989	11141-87E90
Suzuki	DT100SFL	100	2-Stroke	1990	11141-87E90
Suzuki	DT100TCLL	100	2-Stroke	1990	11141-87E90
Suzuki	DT100TCXL	100	2-Stroke	1990	11141-87E90
Suzuki	DT100TCLM	100	2-Stroke	1991	11141-87E90
Suzuki	DT100TCLN	100	2-Stroke	1992	11141-87E90
Suzuki	DT100TCLP	100	2-Stroke	1993	11141-87E90
Suzuki	DT100TCLR	100	2-Stroke	1994	11141-87E90
Suzuki	DT100TCLS	100	2-Stroke	1995	11141-87E90
Suzuki	DT100TCLT	100	2-Stroke	1996	11141-87E90
Suzuki	DT100TCLV	100	2-Stroke	1997	11141-87E90
Suzuki	DT100TCLW	100	2-Stroke	1998	11141-87E90
Suzuki	DT100TCLX	100	2-Stroke	1999	11141-87E90
Suzuki	DT100TCLY	100	2-Stroke	2000	11141-87E90

Technical Specs

Product Type: Cylinder Head Gasket
Installation: Direct fit
Fuel Type: Gasoline (Petrol)
Housing Material: Composite
Dimensions: Length: 12.5 cm (4.92 in), Width: 8.0 cm (3.15 in), Height: 0.13 cm (0.05 in)
Weight: 0.22 kg (0.49 lb)
Other Technical Attributes: For V4 block configuration

What’s in the Box

1 x Cylinder Head Gasket (Replaces 11141-87E90)

Installation Notes

Disconnect the battery and ensure the engine is cool. Drain the engine's cooling system completely.
Remove the engine cover and any components that block access to the cylinder head(s), such as intake manifolds or electrical wiring.
Following the manufacturer's service manual, loosen the cylinder head bolts in several passes and in the reverse order of the tightening sequence.
Carefully lift the cylinder head away from the engine block. Do not use a pry bar, which can damage the mating surfaces. Remove the old head gasket.
Thoroughly clean the mating surfaces of both the cylinder head and the engine block. Ensure they are free of any old gasket material, oil, or debris.
Position the new gasket on the engine block, confirming its orientation matches the dowels and coolant passages. Do not use sealant unless specified by the engine manufacturer.
Carefully place the cylinder head back onto the block. Install the head bolts and tighten them in the correct sequence and torque stages as specified in your service manual.
Reinstall all previously removed components, refill the cooling system, and reconnect the battery before starting the engine.

Troubleshooting & FAQ

How do I know if this gasket fits my Suzuki outboard?

This gasket is for Suzuki 90 HP and 100 HP V4 2-stroke outboards from 1989 through 2000. To ensure a perfect match, please check your engine's model and year against the detailed compatibility table on this page.

What are common signs of a failed cylinder head gasket?

Key symptoms include engine overheating, a noticeable loss of power, white or blue smoke from the exhaust, water or coolant in the cylinders, or a milky, emulsified appearance in the engine oil, which indicates coolant contamination.

Do I need to use sealant with this gasket?

This composite gasket is designed to be installed dry. Applying sealants is generally not recommended as it can interfere with proper sealing and uniform compression. Always consult your engine's service manual for specific instructions.

What is the difference between this and the OEM Suzuki part?

This is a high-quality aftermarket part built to meet or exceed original equipment manufacturer (OEM) specifications for material, fit, and performance. It provides a reliable seal at a more accessible price point compared to the genuine OEM part.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
