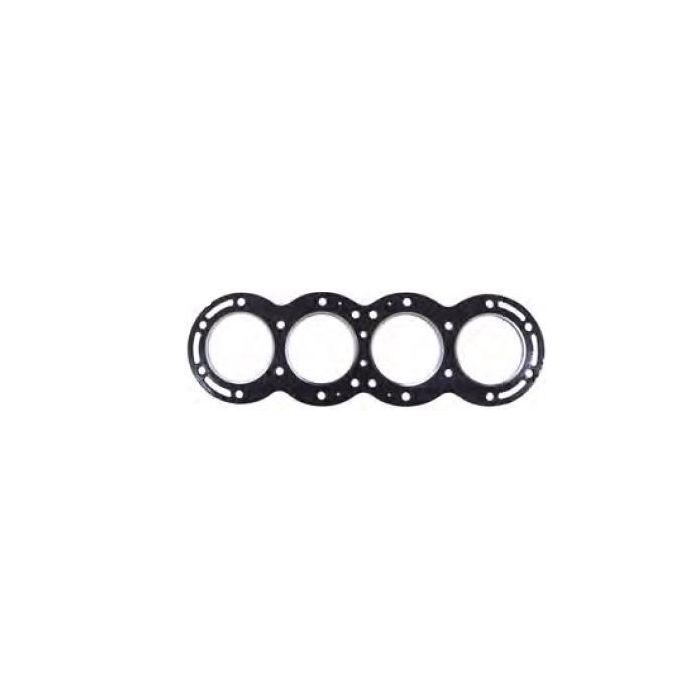

Head Gasket – Fits Suzuki DT115, DT140 Outboards (Replaces 11141-94506, 11141-94620)

Product Details

This aftermarket Head Gasket is engineered for Suzuki DT115 and DT140 two-stroke outboard engines manufactured between 1983 and 2001. It is designed to create a proper seal between the cylinder head and the engine block, ensuring optimal compression and preventing coolant or exhaust leaks for reliable performance.

This part serves as a direct replacement for Suzuki OEM part numbers 11141-94505, 11141-94506, 11141-94610, 11141-94620, and 11141-94620-000.

• Engineered for direct OEM-equivalent installation.
• Designed for use in 2-stroke gasoline marine environments.
• Built to ensure a tight seal and restore engine compression.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

Technical Specs

Product Type

Head Gasket

Installation

Direct OEM replacement

Fuel Type

Gasoline (2-stroke)

Housing Material

Composite/Metal

Dimensions

18.0" L x 6.5" W x 0.13" H

Operating Temperature

Engine operating temperature

Warranty

Manufacturer dependent (typically 1 year)

Primary Function

Forms seal between cylinder head and block

What’s in the Box

• 1 x Head Gasket (Replaces 11141-94506, 11141-94620)

Installation Notes

1. Disconnect the battery and ensure the engine is cool to the touch.
2. Drain the engine coolant completely.
3. Remove any components obstructing access to the cylinder head, such as covers, wiring harnesses, and fuel lines.
4. Carefully loosen the cylinder head bolts in the reverse order of the manufacturer's specified tightening sequence.
5. Lift the cylinder head off the engine block. Do not use a pry bar, as this can damage the mating surfaces.
6. Remove the old head gasket and thoroughly clean both the cylinder head and engine block surfaces. Ensure they are free of any old gasket material, sealant, oil, or carbon deposits.
7. Place the new head gasket onto the engine block, ensuring it aligns with the dowel pins and passages. Do not use any sealant unless specified by the engine manufacturer.
8. Carefully lower the cylinder head back onto the block.
9. Install and hand-tighten the head bolts. Then, using a torque wrench, tighten the bolts in the correct sequence and to the specified torque values found in your engine's service manual.
10. Reinstall all previously removed components, refill the coolant, and reconnect the battery.
11. Start the engine and check for any coolant, oil, or compression leaks around the gasket.

Troubleshooting & FAQ

Safety & Important Info

• Verify images and specifications against your original part before purchase. If anything differs—even if your model appears in the compatibility list—do not order.
• This is an aftermarket replacement part, not an OEM component. All mentions of brand names and part numbers are for reference purposes only.
• Professional installation is strongly recommended for safety, performance, and to prevent engine damage.
