Turbo Gasket Set – Fits Volvo Penta 30 & 40 Series Diesel Engines (Replaces 3582595, 876398)
Turbo Gasket Set – Fits Volvo Penta 30 & 40 Series Diesel Engines (Replaces 3582595, 876398) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Turbo Gasket Set – Fits Volvo Penta 30 & 40 Series Diesel Engin...
Product Details
This Turbo Gasket Set – Fits Volvo Penta 30 & 40 Series Diesel Engines is designed for a precise fit on a range of Volvo Penta diesel engines built between 1976 and 1986. It covers models including the AQAD30A, AQAD40A/B, AQD40A, MD30A, MD40A, TAMD30A, TAMD40A/B, and TMD30A, TMD40A/B/C series.
The set serves as a direct aftermarket replacement, providing an interchange for Volvo Penta OEM part numbers 3582595, 876398, 875646, 875734, and 876313, as well as several other aftermarket equivalents.
- Installation Point: Connects the engine turbocharger to the exhaust manifold flange.
- Fuel Type: Compatible with diesel engines only.
- Complete Kit: Includes all necessary gaskets and washers for a complete turbocharger-to-manifold reseal.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.
| Brand | Part Number |
|---|---|
| Volvo Penta | 3582595 |
| Volvo Penta | 876398 |
| Volvo Penta | 875646 |
| Volvo Penta | 875734 |
| Volvo Penta | 876313 |
| Orbitrade | ORB22135 |
| Orbitrade | ORB22139 |
| Aftermarket | AM3582595 |
Engine & Model Compatibility
Confirm your engine model and year in the table below.
This gasket set is designed for specific Volvo Penta 30 and 40 series diesel engines.
| Brand | Model | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|
| Volvo Penta | TMD30A | 4-Stroke | 1983–1986 | 3582595 | |
| Volvo Penta | TAMD30A | 4-Stroke | 1983–1986 | 3582595 | |
| Volvo Penta | AQAD30A | 4-Stroke | 1983–1986 | 3582595 | |
| Volvo Penta | MD30A | 4-Stroke | 1983–1986 | 3582595 | |
| Volvo Penta | TMD40A | 4-Stroke | 1976–1985 | 3582595 | |
| Volvo Penta | TMD40B | 4-Stroke | 1982–1986 | 3582595 | |
| Volvo Penta | TMD40C | 4-Stroke | 1983–1986 | 3582595 | |
| Volvo Penta | TAMD40A | 4-Stroke | 1980–1985 | 3582595 | |
| Volvo Penta | TAMD40B | 4-Stroke | 1983–1986 | 3582595 | |
| Volvo Penta | AQD40A | 4-Stroke | 3582595 | ||
| Volvo Penta | AQAD40A | 4-Stroke | 3582595 | ||
| Volvo Penta | AQAD40B | 4-Stroke | 1982–1986 | 3582595 | |
| Volvo Penta | MD40A | 4-Stroke | 1976–1985 | 3582595 | |
| Volvo Penta | AD30A | 4-Stroke | 3582595 | Listed in some sources | |
| Volvo Penta | AD40B | 4-Stroke | 3582595 | Listed in some sources |
Technical Specs
- Product Type
- Turbo Gasket Set
- Installation
- Engine Turbocharger/Exhaust Manifold
- Fuel Type
- Diesel
- Connection
- Turbocharger to Exhaust Manifold Flange
- Dimensions
- 14.0" L x 17.5" W x 1.0" H
- Weight
- 0.2 kg (0.45 lbs)
- Fitting Type
- OEM Replacement

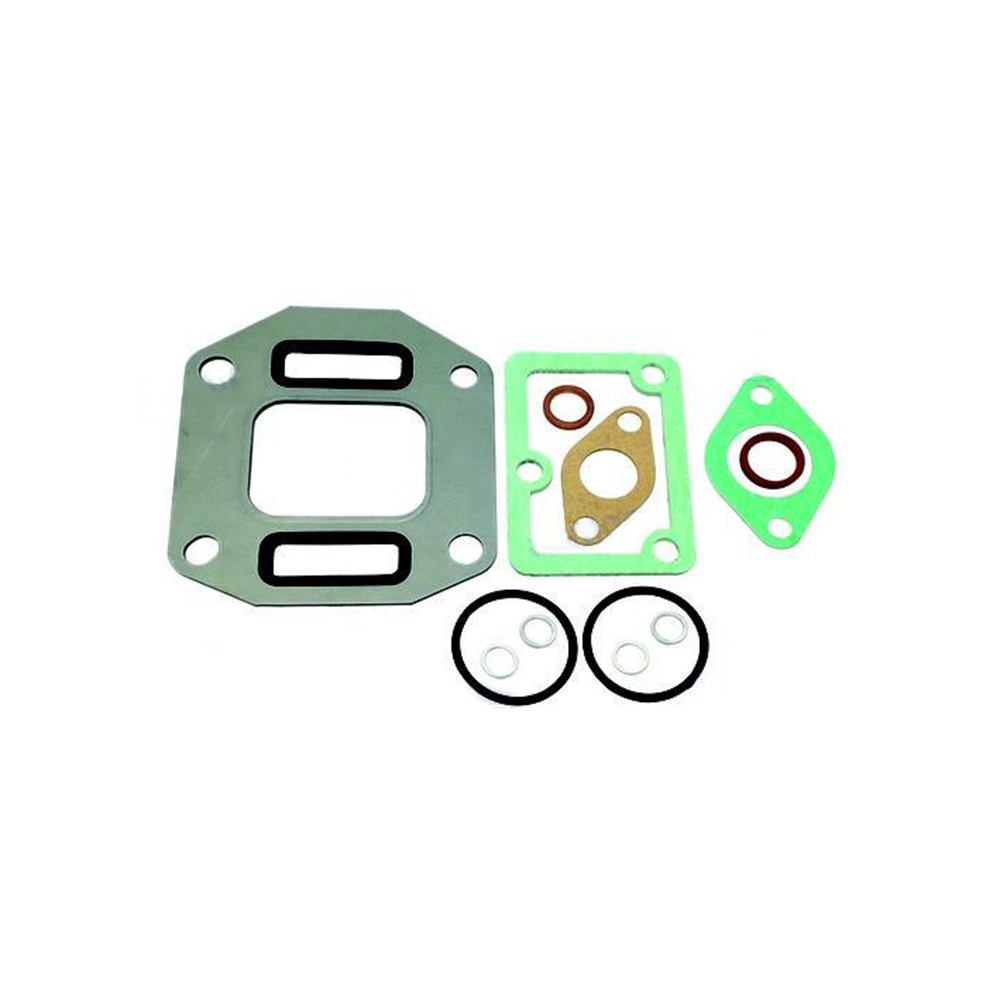

What’s in the Box
- 1 x O-ring
- 1 x Aluminum washer
- 1 x Oil gasket
- 1 x Gasket
- 1 x Turbo gasket
- 1 x Copper washer
Installation Notes
- Ensure the engine is completely cool and disconnect the battery terminals for safety.
- Gain clear access to the turbocharger and exhaust manifold connection. Remove any heat shields or interfering components.
- Carefully unbolt the turbocharger from the exhaust manifold flange and remove the old gaskets and seals.
- Thoroughly clean both mating surfaces. Remove all old gasket material, carbon buildup, and debris to ensure a clean, flat surface for sealing.
- Position the new gaskets correctly according to your engine's service manual. Do not use sealant unless explicitly specified.
- Re-install the turbocharger, tightening bolts to the manufacturer's recommended torque specifications in the correct sequence.
- Reconnect the battery and start the engine. Check carefully for any signs of exhaust leaks around the flange.
Troubleshooting & FAQ
How do I know if this gasket set fits my engine?
This set is for Volvo Penta 30 and 40 series diesels (1976–1986). The best way to confirm is to check your engine model against our compatibility table and cross-reference the OEM part number you are replacing with our Part Number Matrix.
What are the signs of a failed turbo gasket?
Common signs include a distinct hissing or ticking sound from the engine bay (exhaust leak), reduced engine power or turbo boost, black soot marks around the turbo-manifold connection, or the smell of exhaust fumes.
Do I need to use sealant with these gaskets?
These gaskets are designed to be installed on clean, dry surfaces. Using sealants is generally not recommended as it can interfere with proper sealing. Always consult your official Volvo Penta service manual for model-specific instructions.
What is the main cause of turbo gasket failure?
Failures are often caused by extreme heat cycles, improper torque on flange bolts (too loose or too tight), or warped manifold/turbo flanges. Ensuring surfaces are perfectly flat and clean before installation is critical for longevity.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9001 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images and specifications against your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
