Water Pump Impeller – Fits Honda Outboard 35-60 HP 4-Stroke (Replac...
Water Pump Impeller – Fits Honda Outboard 35-60 HP 4-Stroke (Replaces 19210-ZV5-003, 19210-ZV7-003) is backordered and will ship as soon as it is back in stock.
Product Details

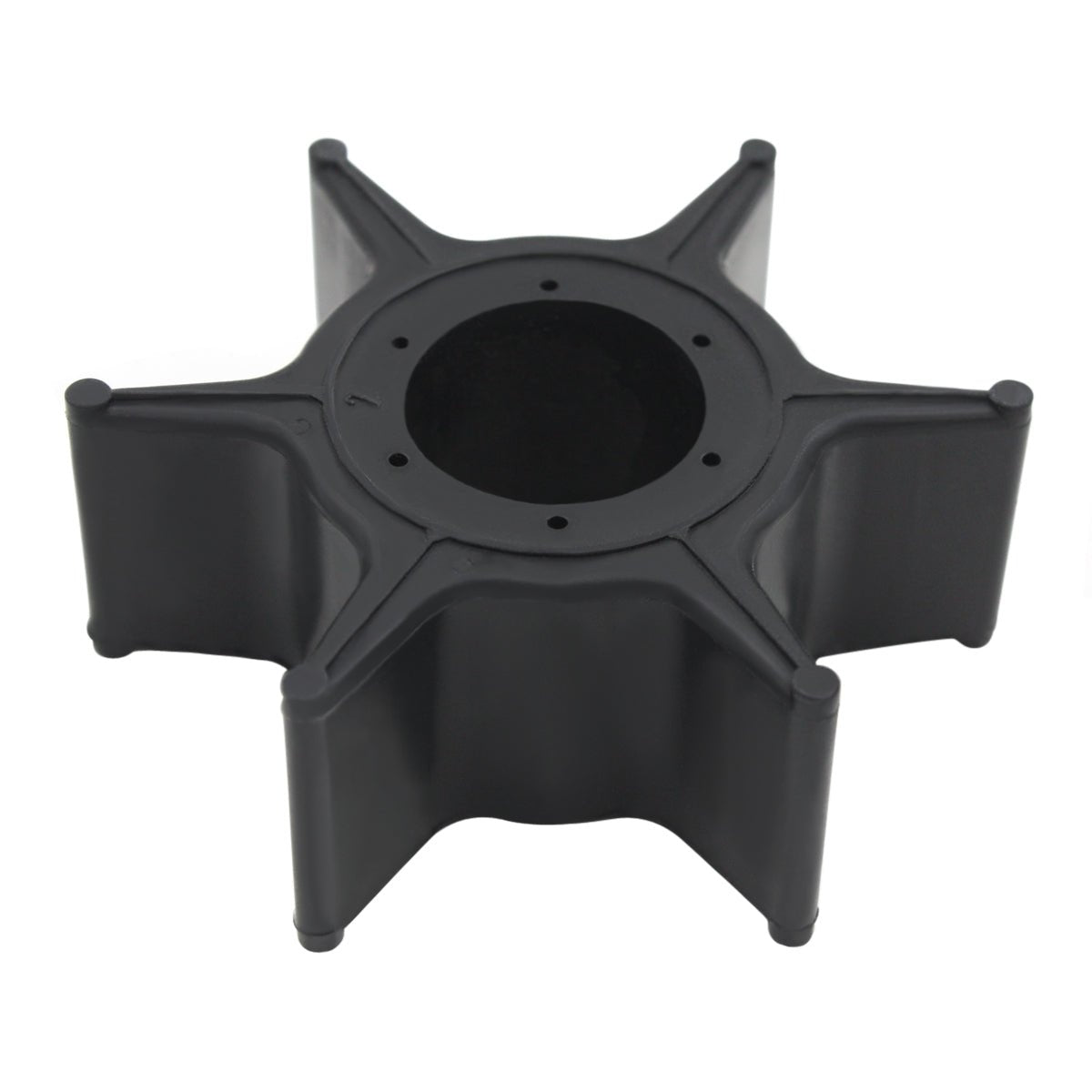

This is a high-quality aftermarket Water Pump Impeller – Fits Honda Outboard 35-60 HP 4-Stroke (Replaces 19210-ZV5-003). It is designed as a direct-fit replacement for Honda 4-Stroke Outboard engines from BF35AM through models with a DK4 suffix, including the BF40, BF45, BF50, and BF60 series, ensuring reliable engine cooling and performance.
This part provides a direct interchange for Honda part numbers 19210-ZV5-003 and 19210-ZV7-003, as well as aftermarket equivalents like Sierra 18-3248 and Mallory Marine 9-45103.
- Installation: Engineered for a direct OEM replacement fit.
- Material: Made from a durable neoprene/rubber compound with a hardened nylon core for longevity in marine environments.
- Design: Features a 6-blade design to ensure efficient water flow for optimal cooling.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket brands.
| Brand | Part Number | Superseded By | Notes |
|---|---|---|---|
| Honda | 19210-ZV5-003 | 19210-ZV7-003 | |
| Sierra | 18-3248 | ||
| Mallory Marine | 9-45103 | ||
| GLM | 91012 | ||
| CEF | 500338 | ||
| Tohatsu | HZV5-19210-003 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This impeller is designed for the following Honda 4-stroke outboard engines. Please match your model number precisely.
| Brand | Model | Rated HP | Stroke | OEM Part No. | Notes |
|---|---|---|---|---|---|
| Honda | BF20 | 20 | 4-Stroke | 19210-ZV5-003 | |
| Honda | BF25 | 25 | 4-Stroke | 19210-ZV5-003 | |
| Honda | BF30A-AX-A1-A2-A3-A4-D4-DK2 | 30 | 4-Stroke | 19210-ZV5-003 | |
| Honda | BF35AM | 35 | 4-Stroke | 19210-ZV5-003 | |
| Honda | BF40A/A1/A2/A3/A4/AX/AY/B/B2/BX/D/DK2/DK4/E | 40 | 4-Stroke | 19210-ZV5-003 | |
| Honda | BF45AM | 45 | 4-Stroke | 19210-ZV5-003 | |
| Honda | BF50A/A1/A2/A3/AX/AY/D/DK2/DK4 | 50 | 4-Stroke | 19210-ZV5-003 | |
| Honda | BF60A, AK1 | 60 | 4-Stroke | 19210-ZV5-003 | |
| Honda | BFP60A, AK1 | 60 | 4-Stroke | 19210-ZV5-003 | Power thrust model |
Technical Specs
- Product Type
- Water Pump Impeller
- Installation
- Direct OEM replacement
- Material
- Neoprene/rubber with hardened nylon core
- Blade Count
- 6 blades
- Dimensions
- Height: 20.2 mm (0.71 in), Outside Diameter: 55.8-55.9 mm (2.19 in), Hub/Shaft Diameter: 17.2 mm (0.68 in)
- Weight
- Approximately 19.8 g (0.7 oz)
- Color
- Black
What’s in the Box
- 1 x Water Pump Impeller (Replaces 19210-ZV5-003)
Installation Notes
- Disconnect the battery and remove the engine cowling.
- Drain the gearcase oil from the lower unit.
- Remove the bolts securing the lower unit (gearcase) to the engine's driveshaft housing and carefully lower it. Disconnect any shift linkage or speedometer tubes.
- With the lower unit on a workbench, unbolt and remove the water pump housing.
- Note the arrangement of gaskets and wear plates, then slide the old impeller off the driveshaft. Be sure to collect the small drive key.
- Clean all surfaces and inspect the housing and wear plate for scoring or distortion. Replace if damage is found.
- Install the drive key, then slide the new impeller onto the driveshaft. Use a light coating of marine grease or soapy water to lubricate the housing interior.
- Rotate the driveshaft in its normal rotational direction (typically clockwise) while pushing down on the impeller to seat it with the blades correctly oriented.
- Reassemble the pump housing with new gaskets (highly recommended, not included) and tighten bolts to the manufacturer's specified torque.
- Reinstall the lower unit, reconnecting all linkages, and refill the gearcase with fresh oil.
- Test run the engine in water, confirming a strong, steady stream of water from the tell-tale port.
Troubleshooting & FAQ
How do I know if this fits my engine?
This impeller is made for specific Honda engine series. The best way to confirm fitment is to check your engine model against the compatibility chart. If your model is listed, it will fit. You should also visually compare your old part to our product images and specifications.
What are the signs of a failing impeller?
Common signs of a bad impeller include a weak or no water stream from the tell-tale port, engine overheating alarms, steam from the exhaust, or a drop in engine RPMs. Any of these symptoms warrant an immediate inspection.
How often should I replace the impeller?
As a critical preventative maintenance item, you should replace the impeller every 1-2 years or every 100-200 hours of operation, whichever comes first. The rubber can become dry, brittle, and cracked over time, even with low use.
Is the metal drive key included?
This package contains the impeller only. The small metal key that locks the impeller to the driveshaft is not included. You must reuse your original key or acquire a new one separately if it is lost or worn.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
