Flexible Water Pump Impeller – Fits Volvo Penta D6 Series Diesel Engines (Replaces 3593573, 3583602, 3588476, 3819486)
Flexible Water Pump Impeller – Fits Volvo Penta D6 Series Diesel Engines (Replaces 3593573, 3583602, 3588476, 3819486) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Worry-free returns
Worry-free returns
You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
Delivery and Shipping
Delivery and Shipping
Free standard shipping on all orders under 1 KG
Flexible Water Pump Impeller – Fits Volvo Penta D6 Series Diesel En...
Product Details

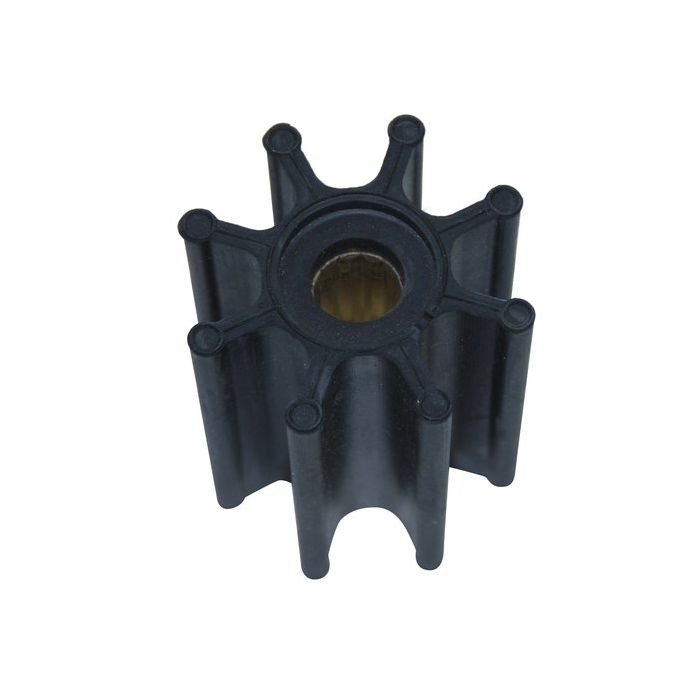

This Flexible Water Pump Impeller – Fits Volvo Penta D6 Series Diesel Engines is a direct-fit replacement for maintaining your engine’s cooling system. It is designed for compatibility with a wide range of Volvo Penta D6 series diesel marine engines manufactured from 2003 to the present, including the D6-280, D6-310, D6-330, D6-350, D6-370, D6-400, and D6-435 variants.
This component provides a direct interchange for several part numbers, including Volvo Penta 3593573/3819486, 3583602, 3588476, JABSCO 17018-0001, JMP 7446-01, and CEF 500177/87, ensuring a precise and reliable fit.
- Features a spline drive for secure installation and power transmission.
- Engineered from durable neoprene with a brass insert for longevity in marine diesel environments.
- The kit includes the impeller, O-ring, screw, washer, and lubricant for a complete service.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket suppliers.
| Brand | Part Number |
|---|---|
| Volvo Penta | 3593573/3819486 |
| Volvo Penta | 3583602 |
| Volvo Penta | 3588476 |
| JABSCO | 17018-0001 |
| JMP | 7446-01 |
| CEF | 500177/87 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
This impeller is designed for the specific Volvo Penta D6 engine models and variants listed. Ensure your engine code matches exactly.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. |
|---|---|---|---|---|---|
| Volvo Penta | D6-280A-A, D6-280A-B, D6-280A-C, D6-280A-D, D6-280A-E | 280 | 4-Stroke | 2003–present | 3593573/3819486 |
| Volvo Penta | D6-280I-A, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E | 280 | 4-Stroke | 2003–present | 3593573/3819486 |
| Volvo Penta | D6-310A-A, D6-310A-B, D6-310A-C, D6-310A-D, D6-310A-E | 310 | 4-Stroke | 2003–present | 3593573/3819486 |
| Volvo Penta | D6-310D-B, D6-310D-C, D6-310D-D, D6-310D-E | 310 | 4-Stroke | 2003–present | 3593573/3819486 |
| Volvo Penta | D6-310I-A, D6-310I-B, D6-310I-C, D6-310I-D, D6-310I-E | 310 | 4-Stroke | 2003–present | 3593573/3819486 |
| Volvo Penta | D6-330A-B, D6-330A-C, D6-330A-D, D6-330A-E, D6-330A-F | 330 | 4-Stroke | 2003–present | 3593573/3819486 |
| Volvo Penta | D6-330D-B, D6-330D-C, D6-330D-D, D6-330D-E, D6-330D-F | 330 | 4-Stroke | 2003–present | 3593573/3819486 |
| Volvo Penta | D6-330I-B, D6-330I-C, D6-330I-D, D6-330I-E, D6-330I-F | 330 | 4-Stroke | 2003–present | 3593573/3819486 |
| Volvo Penta | D6-350A-A, D6-350A-B | 350 | 4-Stroke | 2003–present | 3593573/3819486 |
| Volvo Penta | D6-370A-B, D6-370A-C, D6-370A-D, D6-370A-E, D6-370A-F | 370 | 4-Stroke | 2003–present | 3593573/3819486 |
| Volvo Penta | D6-370D-A, D6-370D-B, D6-370D-C, D6-370D-D, D6-370D-E, D6-370D-F | 370 | 4-Stroke | 2003–present | 3593573/3819486 |
| Volvo Penta | D6-370I-A, D6-370I-B, D6-370I-C, D6-370I-D, D6-370I-E, D6-370I-F | 370 | 4-Stroke | 2003–present | 3593573/3819486 |
| Volvo Penta | D6-400A-E, D6-400A-F | 400 | 4-Stroke | 2003–present | 3593573/3819486 |
| Volvo Penta | D6-435D-A, D6-435D-C, D6-435D-D, D6-435D-E, D6-435D-F | 435 | 4-Stroke | 2003–present | 3593573/3819486 |
| Volvo Penta | D6-435I-A, D6-435I-C, D6-435I-D, D6-435I-E, D6-435I-F | 435 | 4-Stroke | 2003–present | 3593573/3819486 |
Technical Specs
- Product Type
- Flexible Water Pump Impeller
- Installation
- Spline Drive
- Fuel Type
- Diesel
- Housing Material
- Neoprene with Brass Insert
- Impeller Dimensions
- 65mm diameter × 76.2mm width
- Product Dimensions
- 9.5cm Height × 10.0cm Width × 6.5cm Length
- Shaft Diameter
- 15.8mm
- Number of Blades
- 8
- Application
- Used on Volvo Penta Water Pumps 21219723, 22063494, 21380890
What’s in the Box
- 1 x Impeller (3819486)
- 1 x O-Ring (3583611)
- 1 x Hexagon Screw (3583604)
- 1 x Sealing Washer (804781)
- 1 x Grease (3862178)
Installation Notes
- Shut off the engine, let it cool, and close the raw water intake valve (seacock).
- Remove the screws from the water pump cover plate. Note their length and position if they vary.
- Pry off the cover plate. You may need to tap it gently. Remove the old O-ring or gasket and any residue.
- Use impeller pullers or two pairs of pliers to grip the hub and pull the old impeller straight out. Avoid damaging the pump housing.
- Clean the interior of the pump housing, removing any debris or old impeller fragments. Check for scoring or damage.
- Apply the supplied glycerin-based grease to the inside of the pump housing and the new impeller blades.
- Insert the new impeller by pushing it into the center while twisting in the direction of engine rotation to bend the blades correctly.
- Install the new O-ring into its groove on the cover plate.
- Re-install the cover plate, ensuring it is aligned correctly, and tighten the screws evenly in a star pattern.
- Open the seacock fully.
- Start the engine and immediately check for proper water flow from the exhaust and for any leaks around the pump cover.
Troubleshooting & FAQ
How do I know if this impeller is the correct one for my D6 engine?
This impeller fits most Volvo Penta D6 models from 2003 to present. The best way to confirm is to check your engine's specific model code (e.g., D6-370A-F) against our compatibility table. You can also verify by cross-referencing your existing part number with those listed in our Part Number Matrix.
What are the signs that my impeller is failing?
Common signs of a worn or damaged impeller include engine overheating at idle or higher RPMs, a reduced flow of water from the exhaust outlet, visible cracks or missing blades on the old impeller during inspection, and a squealing noise from the pump area.
How often should I replace my engine's water pump impeller?
For preventative maintenance, it is recommended to replace the impeller every one to two years, or every 200-300 operating hours, whichever comes first. However, if you operate in silty or sandy water, more frequent inspections and replacements may be necessary.
What causes an impeller to fail prematurely?
Premature failure is often caused by running the pump dry (even for a few seconds), debris in the raw water system, chemical degradation from fuel or oil, or long periods of disuse where the blades can stick and tear on startup.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
