Impeller Kit – Fits Volvo Penta (Replaces 21951362, 21730344)
Product Details

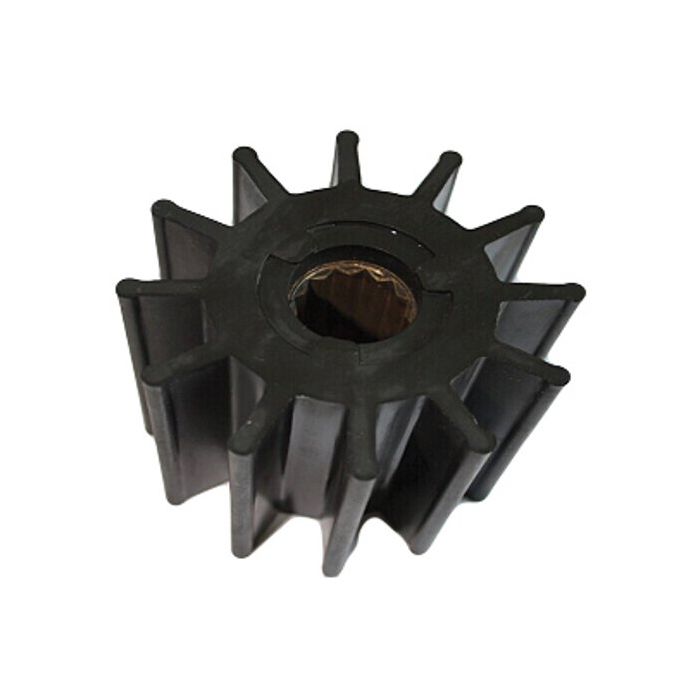

This marine engine cooling Impeller Kit – Fits Volvo Penta (Replaces 21951362, 21730344) is a 12-blade, spline-drive component designed for robust performance in raw water cooling systems. It's primarily used in Volvo Penta marine engines but offers broad cross-compatibility with select Jabsco, Johnson, Caterpillar, and Detroit Diesel applications.
It serves as a direct replacement for Volvo Penta 21951362 and 21730344; Jabsco 17935-0001 and 17935-0; Johnson 09-819B; CEF 500135; Caterpillar 5L6042, 5N9360, and 1W9046; and Detroit Diesel 5193553 and 8924838.
- Installation: Direct replacement fit for specified part numbers.
- Connection: Features a 12-tooth spline drive for secure power transmission.
- Use Environment: High-speed impeller design for raw water/seawater cooling systems.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Volvo Penta | 21951362, 21730344 |
| Jabsco | 17935-0001, 17935-0 |
| Johnson | 09-819B |
| CEF | 500135 |
| Caterpillar | 5L6042, 5N9360, 1W9046 |
| Detroit Diesel | 5193553, 8924838 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Volvo Penta engines, this impeller is commonly used in the JPR-V2000 pump applications.
| Brand | Model | OEM Part No. | Notes |
|---|---|---|---|
| Volvo Penta | TAMD61/62 | 21730344, 21951362 | Used in JPR-V2000 pump |
| Volvo Penta | TAMD71/72/73 | 21730344, 21951362 | Used in JPR-V2000 pump |
| Volvo Penta | MD 100/120 | 21730344, 21951362 | Used in JPR-V2000 pump |
| Volvo Penta | TD100/120 | 21730344, 21951362 | Used in JPR-V2000 pump |
| Volvo Penta | TMD100/120 | 21730344, 21951362 | Used in JPR-V2000 pump |
| Volvo Penta | TAMD 100/102/120 | 21730344, 21951362 | Used in JPR-V2000 pump |
For Detroit Diesel engines, this impeller is commonly used in the JPR-G6100 pump applications.
| Brand | Model | OEM Part No. | Notes |
|---|---|---|---|
| Detroit Diesel | 6V53 | 5193553, 8924838 | Used in JPR-G6100 pump |
| Detroit Diesel | 6V71 | 5193553, 8924838 | Used in JPR-G6100 pump |
| Detroit Diesel | 8V53 | 5193553, 8924838 | Used in JPR-G6100 pump |
For Caterpillar engines, this impeller is commonly used in the JPR-CT3306 pump applications.
| Brand | Model | OEM Part No. | Notes |
|---|---|---|---|
| Caterpillar | 3304 | 5L6042, 5N9360, 1W9046 | Used in JPR-CT3306 pump |
| Caterpillar | 3304B | 5L6042, 5N9360, 1W9046 | Used in JPR-CT3306 pump |
| Caterpillar | 3306 | 5L6042, 5N9360, 1W9046 | Used in JPR-CT3306 pump |
| Caterpillar | 3306B | 5L6042, 5N9360, 1W9046 | Used in JPR-CT3306 pump |
| Caterpillar | D330C | 5L6042, 5N9360, 1W9046 | Used in JPR-CT3306 pump |
Technical Specs
- Product Type
- Flexible Impeller Kit
- Installation
- Direct replacement
- Fuel Type
- N/A (Water cooling system component)
- Dimensions
- 95 mm diameter × 63 mm width (3.74 × 2.48 inches)
- Weight
- 0.57 kg (1.25 lbs)
- Connection
- Spline Drive (12-tooth)
- Shaft Diameter
- 25 mm (0.98 inches)
- Number of Blades
- 12
- Other Technical Attributes
- High-speed impeller design for raw water/seawater cooling systems
What’s in the Box
- 1 x Flexible Impeller (Replaces 21730344/21951362)
- 1 x Gasket (GAK000701)
- 1 x Gasket (GAK0007)
- 1 x O-Ring (ORG0015)
Installation Notes
- Ensure the engine is off and the seacock is closed before starting work.
- Remove the screws holding the raw water pump's cover plate.
- Carefully pry off the cover plate. Note the direction the old impeller blades are bent.
- Using needle-nose pliers or impeller pullers, remove the old impeller from the pump housing.
- Clean any debris or old gasket material from the housing and cover plate.
- Lubricate the inside of the pump housing with a small amount of glycerin or dish soap.
- Install the new impeller by squeezing the blades together and pushing it into the housing with a twisting motion, matching the old blades' direction.
- Place the new gasket and/or O-ring onto the housing.
- Reinstall the cover plate and tighten the screws evenly.
- Open the seacock.
- Start the engine and immediately check the pump for any leaks.
- Confirm that water is flowing properly through the exhaust.
Troubleshooting & FAQ
How do I know if this impeller fits my engine?
The best way to confirm fitment is to check your part number. This kit replaces Volvo Penta 21951362 and 21730344, among others listed in the Part Number Matrix. Also, verify your engine model against the compatibility tables on this page.
What are the signs of a failing impeller?
Common symptoms include engine overheating at idle or low speeds, a reduced flow of water from the exhaust outlet, and visible cracks or missing blades on the old impeller upon inspection. Regular inspection (at least once a year) is recommended.
How often should I replace my impeller?
As a general rule, replace your impeller every one to two boating seasons or every 200-300 hours of use, whichever comes first. If you boat in sandy or silty water, more frequent replacement may be necessary.
Is this a complete kit for the job?
Yes, this is a complete service kit. It includes the flexible impeller plus the necessary gaskets and O-ring to replace the unit in your pump housing, based on the JMP Marine #8100-01K aftermarket kit.
What is a "spline drive"?
A spline drive refers to the connection style between the impeller and the pump shaft. This impeller has 12 teeth (splines) that fit into corresponding grooves on the shaft, ensuring a secure grip and preventing slippage under load.
Can I install this impeller myself?
Yes, replacing an impeller is a common maintenance task for many boat owners with basic mechanical skills. However, ensure you follow safety precautions like closing the seacock and disconnecting power. If you are unsure, professional installation is always recommended.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
