Product Details

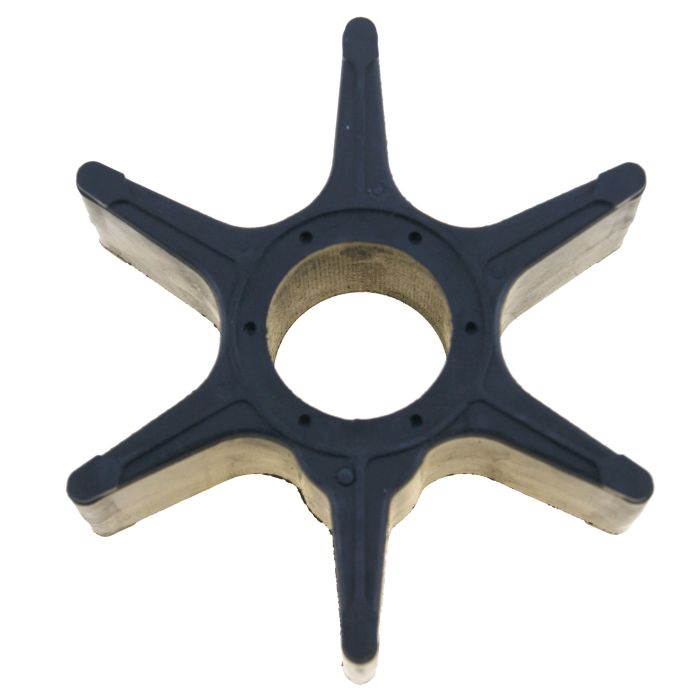

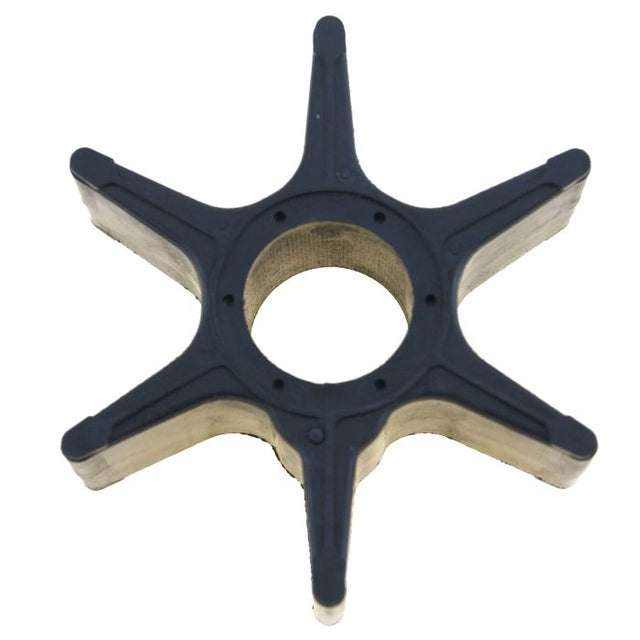

This Impeller, Water Pump – Fits Suzuki Inboard/Outboard is a replacement component for a wide range of Suzuki Outboard Motors. It is designed for DF series (DF60, DF70, DF70A, DF80A, DF90A) and DT series (DT90, DT100) engines from years 1989 through 2011 and newer. It also fits certain 1999 Johnson/Evinrude 70 HP 4-stroke models.
This part provides a direct interchange for Suzuki parts 17461-87E12, 17461-87E11, 17461-87E10, and 17461-87E00, as well as Sierra 18-3049, EMP 47-09212, and GLM Marine 89380.
- Composed of durable neoprene with 6 blades and a key drive shaft style.
- For proper installation, always lubricate the impeller with glycerine, silicone grease, or dish soap.
- Includes a full 1-year warranty from Peach Motor Parts against manufacturing defects.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number | Notes |
|---|---|---|
| Suzuki | 17461-87E12 | Original OEM Number |
| Suzuki | 17461-87E11 | Superseded part |
| Suzuki | 17461-87E10 | Superseded part |
| Suzuki | 17461-87E00 | Superseded part |
| Sierra | 18-3049 | Aftermarket Interchange |
| EMP | 47-09212 | Aftermarket Interchange |
| GLM Marine | 89380 | Aftermarket Interchange |
| Johnson/Evinrude | 5030723 | OEM reference for compatible J/E models |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Suzuki engines, this part fits various 2-stroke and 4-stroke models from 60 HP to 100 HP manufactured between 1989 and 2011 or newer.
For Johnson/Evinrude, this impeller fits select 70 HP 4-stroke outboards from 1999.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. | Notes |
|---|---|---|---|---|---|---|
| Suzuki | DF60 | 60 | 4-Stroke | 1998–2009 | 17461-87E12 | Fits DF60, DF60HL, DF60TL |
| Suzuki | DF70 | 70 | 4-Stroke | 1998–2009 | 17461-87E12 | Fits DF70, DF70THL, DF70TL |
| Suzuki | DF70A | 70 | 4-Stroke | 2009–2011 and Newer | 17461-87E12 | Serial # 210001 and Newer / Serial # 310001 and Newer |
| Suzuki | DF80A | 80 | 4-Stroke | 2009–2011 and Newer | 17461-87E12 | Serial # 210001 and Newer / Serial # 310001 and Newer |
| Suzuki | DF90A | 90 | 4-Stroke | 2009–2011 and Newer | 17461-87E12 | Serial # 210001 and Newer / Serial # 310001 and Newer |
| Suzuki | DT90 | 90 | 2-Stroke | 1989–1997 | 17461-87E12 | |
| Suzuki | DT100 | 100 | 2-Stroke | 1989–2001 | 17461-87E12 | |
| Johnson/Evinrude | 70 (Outboard) | 70 | 4-Stroke | 1999 | 5030723 | Replaced by Sierra 18-3049 |
Technical Specs
- Product Type
- Water Pump Impeller
- Material
- Neoprene Rubber Compound
- Blades
- 6
- Drive Shaft Style
- Key Drive
- Dimensions (Product)
- 12.0" (L) x 10.0" (W) x 4.0" (H)
- Dimensions (Box)
- 12.0" (L) x 10.0" (W) x 4.0" (H)
- Warranty
- Full 1-year warranty (Peach Motor Parts)
What’s in the Box
- 1x Water Pump Impeller
Installation Notes
- Before starting, disconnect the engine's battery and turn off the fuel supply.
- Remove the lower unit (gearcase) from the outboard motor.
- Unscrew the bolts holding the water pump housing and remove the cover.
- Note the rotational direction of the old impeller's blades before pulling it off the driveshaft.
- Thoroughly clean the inside of the water pump housing and the wear plate of any debris or corrosion.
- Apply a liberal amount of glycerine, silicone grease, or dish soap to the new impeller and inside the housing.
- Slide the new impeller onto the driveshaft while turning the shaft clockwise to correctly orient the blades.
- Reinstall the water pump housing, ensuring a proper seal. Reattach the lower unit to the engine.
- Reconnect the battery, start the engine in water, and confirm a steady stream of water from the tell-tale outlet.
Troubleshooting & FAQ
How do I know if this impeller fits my specific engine?
Check your engine's model number, horsepower, and year. Compare this information against the "Engine & Model Compatibility" table. For Suzuki DF models after 2009, also verify your serial number range. If in doubt, compare the part number stamped on your old impeller to the references in the "Part Number Matrix."
What are the signs of a failing water pump impeller?
Common signs include a weak or non-existent water stream from the engine's tell-tale outlet, engine overheating alarms, and reduced engine performance. The rubber blades can become brittle, cracked, or worn down over time, reducing their ability to pump water effectively.
How often should I replace my impeller?
As a general maintenance rule, it is recommended to inspect your water pump impeller annually and replace it every 1-2 years or every 100-200 hours of use, depending on operating conditions (e.g., saltwater vs. freshwater). Never reuse an old impeller.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost?
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns?
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
