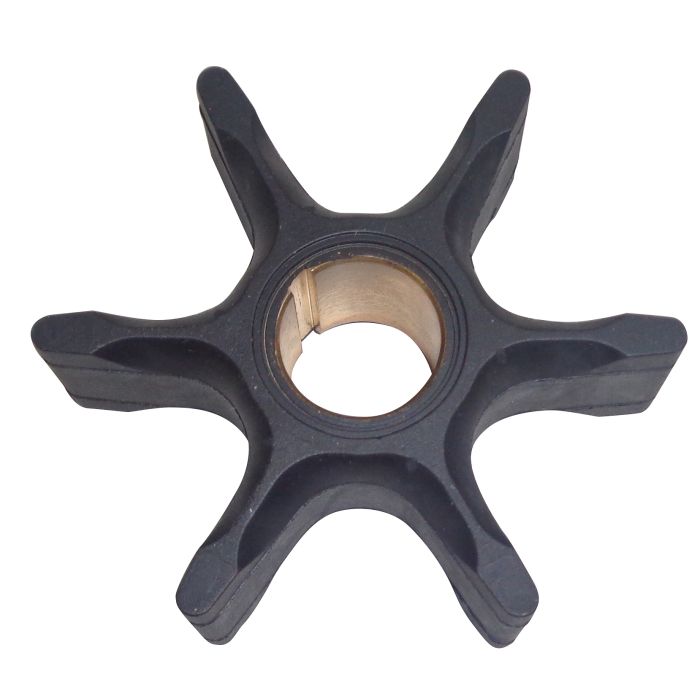

Water Pump Impeller – Fits Johnson/Evinrude 85–235 HP V4/V6 (Replaces 777212, 389642, 385528)

Product Details

This aftermarket Water Pump Impeller – Fits Johnson/Evinrude 85–235 HP V4/V6 is designed for reliable performance in Johnson and Evinrude 2-Stroke V4 (85–140 HP) and V6 (150–235 HP) outboard engines manufactured between 1973 and 1978. It ensures proper engine cooling by circulating water efficiently through the powerhead.

This component is a direct replacement for multiple OEM and aftermarket part numbers, including Johnson/Evinrude 777212, 389642, and 385528, as well as Sierra 18-3043, Mallory 9-45203, GLM 89680, SEI Marine 96-399-07E, and CEF 500305.

• Engineered for direct OEM replacement fit and function.
• Features a durable rubber construction with a keyed (Woodruff) driveshaft connection.
• Maintains engine temperature to prevent overheating and ensure longevity.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Engine & Model Compatibility

Confirm your engine model/year in the table below.

This impeller fits various Johnson outboard models from 85 HP to 235 HP made between 1973 and 1978.

This impeller fits various Evinrude outboard models from 85 HP to 235 HP made between 1973 and 1978.

Technical Specs

Product Type

Water Pump Impeller

Installation

Direct OEM replacement

Material

Rubber

Connection

Keyed drive shaft (woodruff key type)

Dimensions

89.7 mm OD × 32.0 mm H (3.53 × 1.26 in)

Shaft Diameter

22.3 mm (0.88 in)

Number of Blades

6

Weight

0.14–0.15 kg (0.31–0.33 lb)

Warranty

1 year (typical aftermarket)

What’s in the Box

• 1 x Water Pump Impeller (Replaces 777212/389642/385528)

Installation Notes

1. Before starting, disconnect the engine's battery and gather all necessary tools.
2. Unbolt and remove the lower gearcase unit from the outboard motor.
3. Locate and remove the water pump housing bolts, then carefully lift the housing off the driveshaft.
4. Slide the old impeller up and off the driveshaft, and remove the Woodruff key from its slot.
5. Inspect the wear plate and inside of the pump housing for scoring, warping, or corrosion. Clean all surfaces thoroughly.
6. Install the new Woodruff key into the driveshaft slot.
7. Slide the new impeller onto the shaft, aligning its keyway with the key. Gently twist the driveshaft clockwise while pushing down to seat the impeller and bend the vanes correctly.
8. Re-apply sealant to the housing if required, then reinstall the housing and torque its bolts to the manufacturer's specified value.
9. Re-install the lower unit, reconnect the battery, and test the engine in water to verify a strong tell-tale stream.

Troubleshooting & FAQ

Safety & Important Info

• Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
• This is an aftermarket replacement, not an OEM component.
• Professional installation is recommended for safety and performance.
