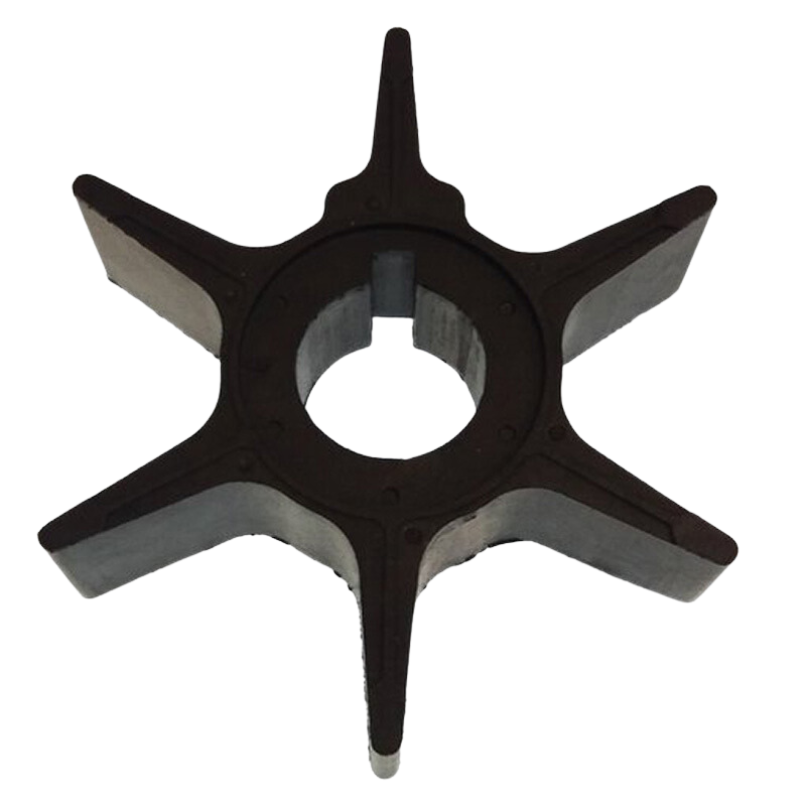

Water Pump Impeller – Fits Suzuki 35-65 HP Outboards (Replaces 17461-94700, 17461-94701)

$9.50 $15.00

Shipping calculated at checkout.

Water Pump Impeller – Fits Suzuki 35-65 HP Outboards (Replaces 17461-94700, 17461-94701) is backordered and will ship as soon as it is back in stock.

Worry-free returns

You may return most new, unopened items within 7 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at info@sierramarines.com, and we’ll get back to you within 20–36 hours.

Product Details

This aftermarket Water Pump Impeller – Fits Suzuki 35-65 HP Outboards (Replaces 17461-94700, 17461-94701) is designed for a precise fit on a range of Suzuki 2-stroke engines from 1977 to 1997. It is compatible with models including DT35, DT40, DT50, DT55, DT60, DT65, DT85, and PU55 Jet outboards, ensuring reliable cooling performance.

This component serves as a direct interchange for Suzuki part numbers 17461-94700, 17461-94701, 17461-95200, and 17461-95201, as well as aftermarket equivalents from Sierra, Mallory, GLM, and others.

Installs as a direct replacement with a standard internal hub fitting.
Constructed from a durable neoprene and hardened nylon composite for longevity.
Engineered with 6 blades to meet OEM flow specifications.

Part Number Matrix

Use this matrix to confirm equivalent references across OEM and aftermarket.

Brand	Part Number
Suzuki	17461-94700
Suzuki	17461-94701
Suzuki	17461-95200
Suzuki	17461-95201
Sierra	18-3094
Mallory Marine	9-45501
CEF	500361
GLM	91019
HJB-J-14019	HJB-J-14019

Engine & Model Compatibility

Confirm your engine model/year in the table below.

For Suzuki Models: This impeller is primarily for 35-65 HP 2-stroke outboards from the specified years. Please cross-reference your engine's serial or model number for a guaranteed match.

Brand	Model	Rated HP	Stroke	Years	OEM Part No.	Notes
Suzuki	DT40	40	2-Stroke	1983	17461-94700
Suzuki	DT55	55	2-Stroke	1985–1997	17461-94700
Suzuki	DT60	60	2-Stroke	1983	17461-94700
Suzuki	DT65	65	2-Stroke	1985–1997	17461-94700
Suzuki	DT35	35	2-Stroke	1980–1982	17461-94700	Secondary source verification
Suzuki	DT50	50	2-Stroke	1977–1984	17461-94700	Secondary source verification
Suzuki	DT85	85	2-Stroke	1977–1979	17461-94700	Secondary source verification
Suzuki	PU55 (Jet)	55	2-Stroke	1989–1994	17461-94700	Secondary source verification

Technical Specs

Product Type: Water Pump Impeller
Installation: Direct Replacement with Internal Hub Fitting
Housing Material: Neoprene and Hardened Nylon Composite
Dimensions: Height: 6.0; Width: 7.5; Length: 0.75;
Weight: 0.03–0.07 kg (0.07–0.15 lb)
Fitting Type: Internal Hub
Other Technical Attributes: 6 Blades

What’s in the Box

1 x Water Pump Impeller (Replaces 17461-94700/17461-94701)

Installation Notes

Disconnect the battery and engine kill switch for safety.
Place a drain pan under the lower unit and remove the drain screw to empty the gearcase oil.
Remove the bolts securing the lower unit (gearcase) to the upper engine housing and carefully lower it.
Unscrew the water pump housing cover to access the impeller.
Note the orientation of the old impeller vanes, then remove the old impeller from the driveshaft.
Clean the housing and install the new impeller, rotating the driveshaft in its normal direction of operation to bend the vanes correctly.
Reassemble the water pump housing, re-mount the lower unit, and refill the gearcase oil.
After reassembly, start the engine in water and confirm a steady stream from the tell-tale outlet.

Troubleshooting & FAQ

How do I know if this impeller fits my Suzuki outboard?

Confirm your engine model and year in the compatibility table. For a guaranteed match, always compare the part numbers listed to those found in your owner's manual or service guide before ordering.

What are signs of a failing water pump impeller?

Common signs include the engine overheating at idle or low speeds, a weak or intermittent water stream from the "tell-tale" outlet, and visible cracks, brittleness, or missing vanes on the old impeller upon inspection.

How often should I replace the water pump impeller?

As a best practice, inspect your impeller annually and plan to replace it every 1-2 years or every 100-200 hours of operation. Frequent use in saltwater or sandy/silty conditions may require more frequent changes.

Is this part difficult to install?

Installation is straightforward for those with mechanical experience but does require removing the lower unit. If you are not comfortable performing this task, we recommend professional installation to ensure correct fitment and function.

OEM vs. Aftermarket?

This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.

Shipping speed & cost

We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.

Warranty & returns

Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.

Safety & Important Info

Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
This is an aftermarket replacement, not an OEM component.
Professional installation is recommended for safety and performance.
